Taramps MD8000.1 8000 Watt Class D Amplifier

  • $629.99
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

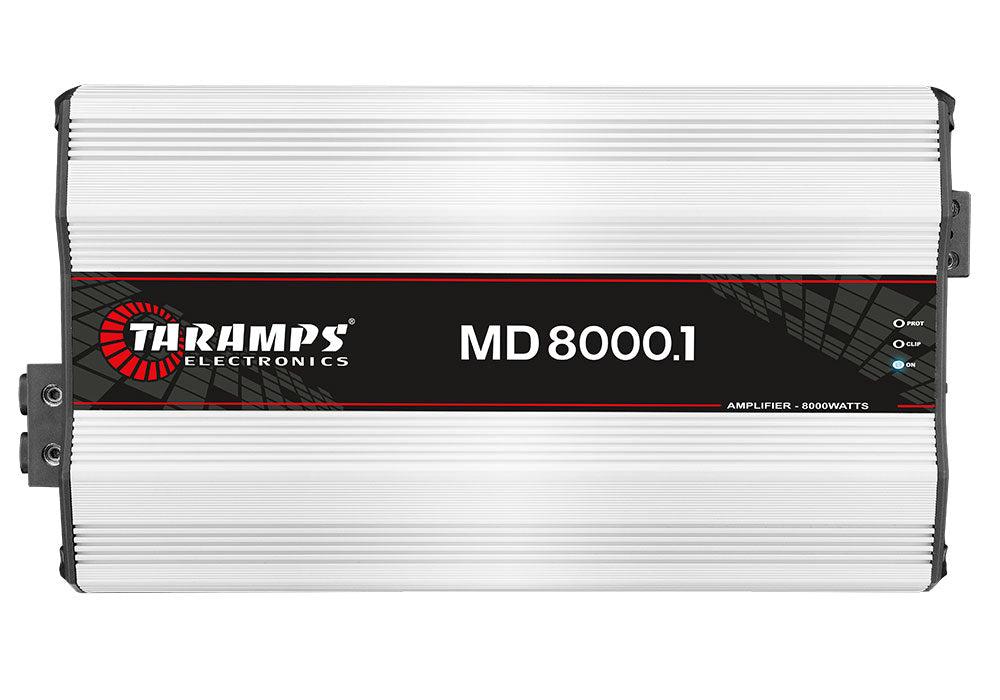

The MD 8000.1 1 OHM amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems. It is a mono amplifier and its maximum power is 8000W RMS with 1 OHM impedance, and one 8000W RMS channel. The MD 8000.1 is FULL RANGE this way you appreciate all the frequencies in the right measure.

Operation class Class D
Number of Channels 01
Maximum power @ 12,6 VDC - 1 OHM: 8000W RMS
@ 12,6 VDC - 2 OHMS: 5120W RMS
Input Sensitivity 220mV
Signal to Noise Ratio >90dB
Frequency response 10Hz ~ 10KHz (-3dB)
Crossover high pass (HPF) 10Hz ~ 90Hz(-12/8ª) Variable
Crossover low pass (LPF) 90Hz ~ 10KHz (-12dB/8ª) Variable
Bass Boost Freq: 35Hz to 55Hz
Boost: 0 ~ 10dB (50Hz)
Efficiency 85%
Input Impedance 22K Ohms
Output Impedance 1 Ohm
Protection system Short-Circuit to Output, short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection
Min. Supply Voltage 9VDC
Maximum Power Supply Voltage 16VDC
Consumption at rest 2A
Maximum music consumption 373.40A
Maximum consumption in sinusoidal signal 746.90A
Dimensions (H x W x D) mm 8.98" x 2.76" x 16.50"
Weight 13.42lb
