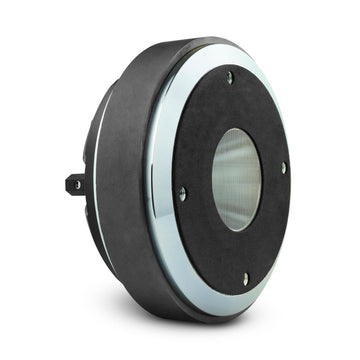

DS18 D225PY 2" Throat Bolt on Driver 360 Watts 2.5" Polyimide Vc 8-Ohm
DESCRIPTION
- Product Overview
Product Overview
DS18’s Drivers are known for reaching EXTREME volumes without sacrificing on their efficiency and sensitivity! The D225PY takes these values to their MAX through the integration of a 2.5” Polyimide Voice Coil!
Polyimide Voice Coils allow your speakers to maintain higher levels of power without the fear of distortion and overheating. Powered by a ferrite motor, you can expect the D225PY to reach ear piercing high range frequencies.
This driver handles 360W RMS and 720W of Peak Power making this driver an amazing addition to any system that needs super loud highs with no compromises!
Highlights
- Ferrite motor structure that provides great motor force and loudness.
- High strength polyimide voice coil taking 360 W RMS and 720 Peak Watts.
- Intense high frequency volume without sacrificing sound quality.
- Compatible with 4-M6 Bolt Patterns
Great For
- Pro Audio
- Car Audio
| SPECIFICATIONS | |
| Throat Diameter | 2"/50.8mm |
| Installation Type | Bolt on |
| Nominal Impedance | 8 OHMS |
| AES Power handling | 180W |
| Program Power Handling | 360W |
| Peak Power handling | 720W |
| Sensitivity (1w/1m) | 118 dB |
| Frequency Response | 630Hz-16KHz |
| Recommended Hi Pass Crossover | 800 Hz |
| Sold in Pair or Single | Single |
| BODY / FEATURES | |
| Filter (Bass Blocker) | 10uf/100v |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| MOTOR | |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Polyimide |
| Magnet Material | Ferrite |
| Magnet Weight | 56 Oz |
| MEASUREMENT | |
| Overall Diameter | 5.75" / 146mm |
| Overall Depth | 2.82" / 71.7mm |
| Bolt Pattern/Type | 4-M6 / 4" / 101.6mm |
