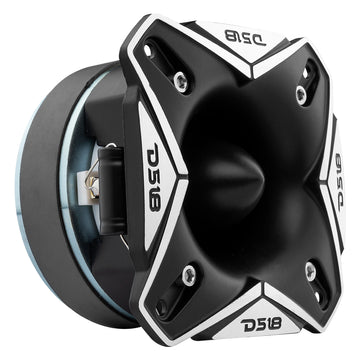

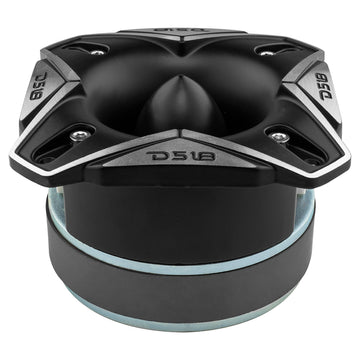

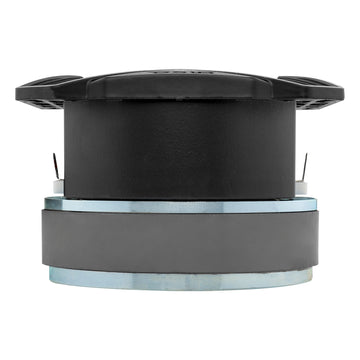

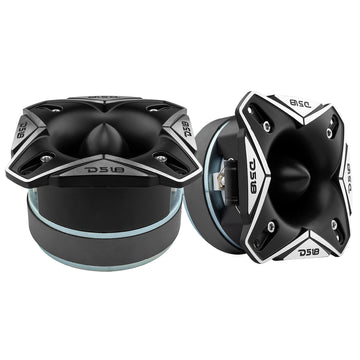

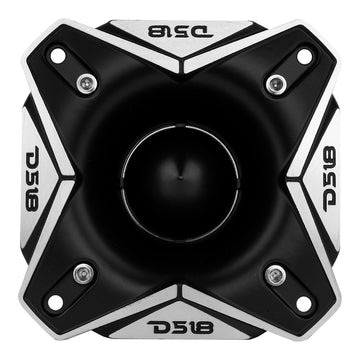

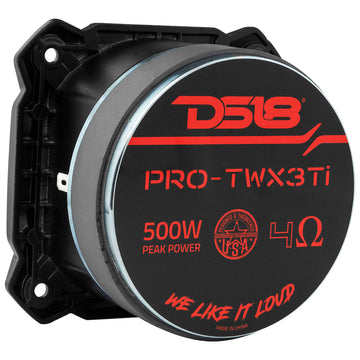

DS18āsĀ PRO-TWX3TIĀ builds on the elegance of the PRO-TWX3
Designed to deliver intense volume with unmatched clarity, theĀ PRO-TWX3TIĀ handles power efficiently for extended listening sessions!
This model comes equipped with a titanium voice coil to support this speaker in its production of clear rich highs.
These professional grade super tweeters can handle power as high as 500W and deliver accurate sounds with a high frequency response of 1.6KHz to 20KHz.
TheĀ PRO-TWX3TIĀ includes a Bass Blocking Capacitor forĀ a cleaner signal that prevents lower frequencies from being produced; resulting in much brighter highs and added protection for both your speaker and voice coil!
Get the most out of your sound system by upgrading to DS18āsĀ PRO-TWX3TIĀ the concert quality tweeter your system deserves!
Highlights
- Handles high frequencies easily with a high frequency response of 1.6KHz to 20KHz.
- Powerful and reliable 1.5ā Titanium voice coil rated at 125W AES, 250W Program, and 500W Peak power ratings each with a built-in capacitor filter to help prevent failure from harmful frequencies.
- Super tweeter bullet design delivers extremely high range volume that can be heard for great distances with extreme clarity.
- Extremely high 108 dB rating for screaming loud high range frequencies delivered at high volumes with great sound quality.
- The ferrite motor structure, with a mounting depth of onlyĀ 2.2 inches is robust yet small enough to fit an a wide and almost limitless number of applications.
Great For
- Car Audio
- Pro Audio
- Motorcycles
- Home Studio
- Hi-Fi Installation
- Surround Sound
- Bookshelf Speakers
- Stunt Walls
- DIY Projects
| SPECIFICATIONS | Ā |
| Nominal Diameter | 3.8" / 96.5mm |
| Nominal ImpedanceĀ | 4 Ohms |
| AES Power Handling | 125W |
| Program Power Handling | 250W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m)Ā | 108 dB |
| Frequency Response | 1.6KHz-20KHz |
| Recommended Hi Pass Crossover | 2.5KHz |
| Sold In Pair or Single | Single |
| BODY / FEATURES | Ā |
| Filter (Bass Blocker) | 4.7uf / 50V |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | BlackĀ / Machined |
| Bullet Material | Aluminum |
| MOTOR | Ā |
| Voice Coil Diameter | 1.5ā / 38.1mm |
| Voice Coil Former MaterialĀ | Kapton |
| Winding MaterialĀ | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet WeightĀ | 15 OzĀ |
| MEASUREMENT | Ā |
| Overall Diameter | 3.8" / 96.5mm |
| Overall Depth | 2.65" / 67.5mm |
| Front Mount Baffle Cutout | 3.62" / 92mm |
| Mounting Depth | 2.2" / 55.8mm |
| Motor Diameter | 3.5" / 90mm |
| Shipping | Most items ship within 1ā3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
