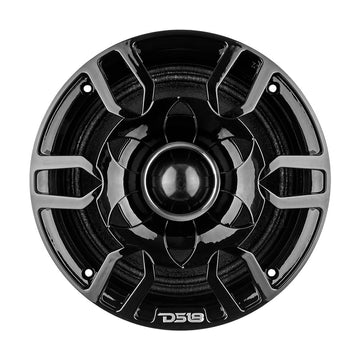

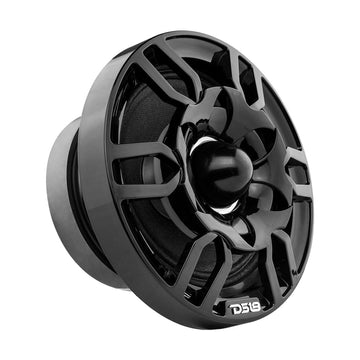

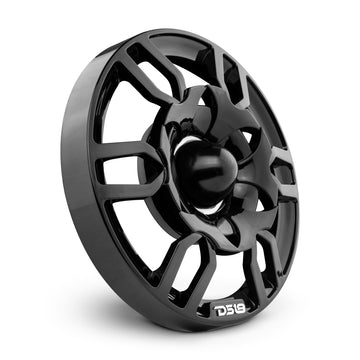

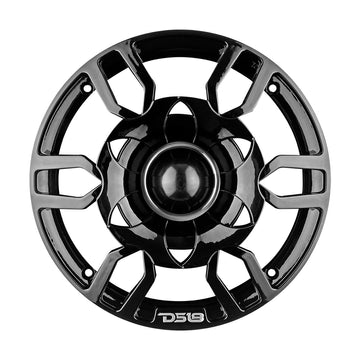

DS18 PRO-GRT6BK 6.5" Speaker Grill with Built-in 1.75" Voice Coil Neodymium Bullet Tweeter 250 Watts
DESCRIPTION
- Product Overview
Product Overview
The PRO-GRT6 6.5’ speaker grill is the perfect addition to any sound system.
The glossy black finish will fit the look and design of any build, the high temperature ABS plastic will make sure your speaker is protected, and a cone with a built in high powered Neodymium Super Bullet Tweeter will make your highs are crisp and clean!
This grill fits standard sized 6.5" speakers for all your sound system needs.
| NOTE: SPEAKER NOT INCLUDED |
Highlights
- Built in Neodymium tweeter for bright and crisp highs.
- Protect your investment with highly durable plastic.
- Available in Glossy Black
| SPECIFICATIONS | |
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 ohms |
| AES Power Handling | 125W |
| Program Power Handling | 250W |
| Peak Power Handling | 500W |
| Sensitivity (1w/1m) | 98 dB |
| Frequency Response | 1.6KHz - 20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| BODY / FEATURES | |
| Pair or Single | Pair |
| Body (Grill) Material | High Temperature ABS |
| Logo | Hot Stamping (Silver) |
| Body Color / Finish | Black / Gloss |
| TWEETER SPECIFICATIONS | |
| Type | Compression Bullet |
| Voice Coil Diameter | 1.75" / 44.45mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Bullet Material | CNC Aluminum |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium (N40H) |
| Magnet Weight | |
| Capacitor (Crossover) | Mylar 6 dB/Oct |
| MEASUREMENTS | |
| Overall Diameter | 7.1" / 180mm |
| Overall Depth | 1.87" / 47.5mm |
| Bolt Pattern | 6.18" / 157mm |
| Mounting Inside Ring Height | 0.28" / 7mm |
| Mounting Outside Ring Height | 0.9" / 23.5mm |
| Tweeter Wire Length | 2ft / 0.6m |
