DC Audio M4 Level 1 12 Inch Subwoofer
- Product Overview
The Long awaited Level 1 Subwoofer is finally here!

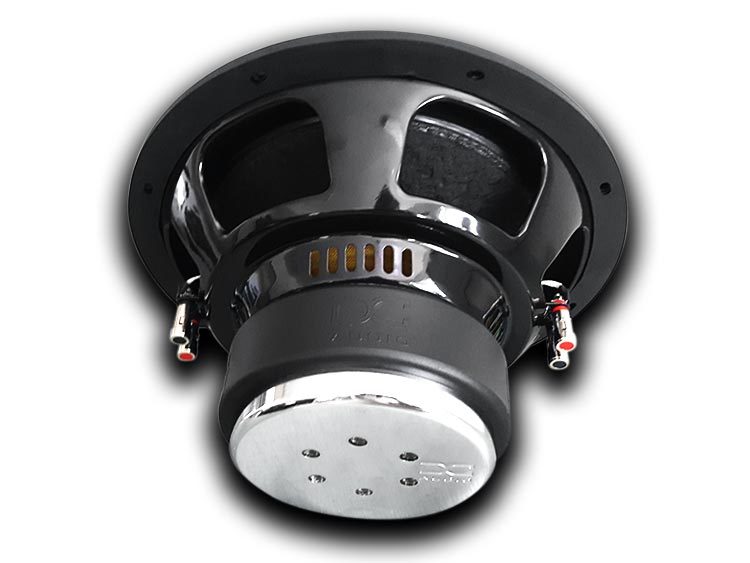

It starts out with a double-stacked FEA optimized motor. A chrome top plate and T yoke. 2.0" voice coil, Glossy Black stamped Steel Frame, push terminals and a rating suggestion of 300w RMS/600w peak power handling.
This sub works great in sealed or ported enclosures.
DC Audio M4 Level 1 Specifications:
|Mounting Hole Diameter||9.3"||11.2"|
|Outside Driver Diameter||11.0"||12.5"|
|Displacement||.12³ ft||.14³ ft|
|Power Handling RMS/Peak||300/600||300/600|
|Impedance (Ohm)||D2 or D4||D2 or D4|
|Vas||17.1 liters||47.7 liters|
|Cms||0.12 mm/N||0.12 mm/N|
|Mms||146.8 g||168 g|
|Fs||37.4 Hz||32.6 Hz|
|BL||23 N/A||23.2 N/A|
|Re||8 ohm||8 ohm|
|Le||3.88 mH||2.79 mH|
|Xmax||19 mm||19 mm|
|Ref SPL @ 1 watt||84.2 dB||86.9 dB|
|Suggested Sealed||.5³ ft||.75³ ft|
|Suggested Ported||1.0³ ft||1.25³ ft|
DC Audio M4 Level 1 is a 12 & 10 inch car subwoofer that comes 2 version i.e. dual 2 ohm & dual 4 ohm. The dc audio level 1 12 & 10 specs are amazing and are the highest quality speakers on the market. The power handling of this subwoofer is rated as 600 watts peak & 300 watts RMS. It has paper cone stitched to surround, Heavy duty interweaved tinsel lead attached to the spider and Black stamped steel basket makes it durable and long lasting. The dc audio m4 level 1 10 inch has top-mount depth of 6” and 12 inch has 6.5”. Both has a similar weight of 18lbs & 18.2 lbs. Please read all the technical specifications of the both subwoofer. Both are the best performing subwoofers in it’s price range and both got wonderful reviews from the buyers.
