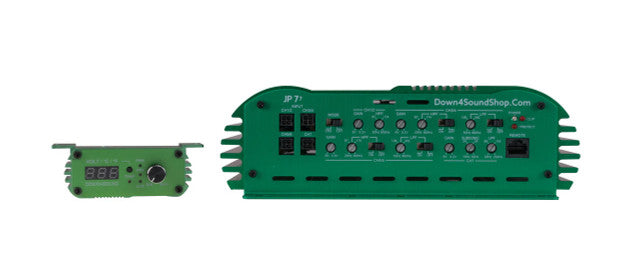

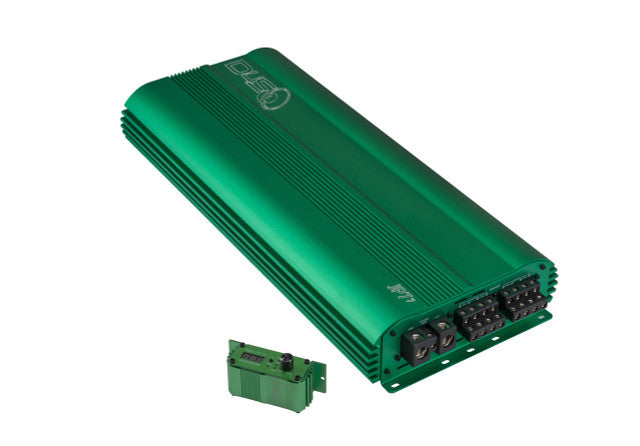

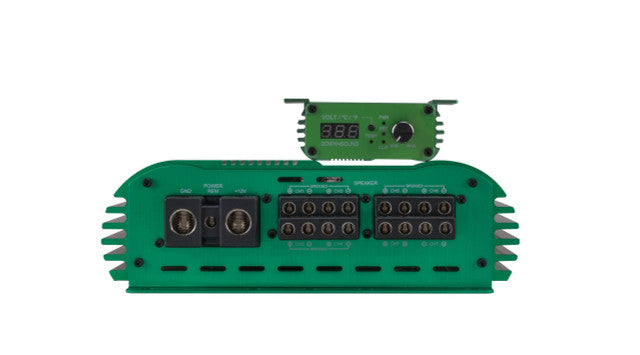

The Down4Sound JP77 is an all-in-one 7-channel amplifier designed to upgrade an entire system with one powerful chassis. With six full-range channels for mids/highs and a dedicated high-output bass channel, it’s built for clean sound, strong output, and flexible crossover control.
Power Ratings (RMS)
- 2000W x 1 @ 1 OHM (CH7)
- 190W x 6 + 1600W x 1 @ 2 OHM
- 120W x 6 + 1000W x 1 @ 4 OHM
- 350W x 3 bridged @ 4 OHM
Filtering & Specs
- Frequency Response: 10Hz – 24KHz (CH1–CH6), 10Hz – 250Hz (CH7)
- CH1/2 HPF: 20Hz – 800Hz
- CH3/4 HPF: 20Hz – 800Hz, LPF: 50Hz – 800Hz (bandpass capable)
- CH5/6 HPF: 20Hz – 800Hz, LPF: 50Hz – 800Hz (bandpass capable)
- CH7 Subsonic: 10Hz – 50Hz, LPF: 35Hz – 250Hz
- Input Sensitivity: 6V – 0.2V
- Signal-to-Noise Ratio: 80dB
- THD @ 4 OHM: 0.1%
- Fuse Rating: 330A
- Remote bass knob included
- Made in Korea
Dimensions
- 20.47 inch × 9.37 inch × 2.71 inch
The JP77 is ideal when you want one amplifier to run your whole system with serious bass power on tap.
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
Description
The Down4Sound JP77 is an all-in-one 7-channel amplifier designed to upgrade an entire system with one powerful chassis. With six full-range channels for mids/highs and a dedicated high-output bass channel, it’s built for clean sound, strong output, and flexible crossover control.
Power Ratings (RMS)
- 2000W x 1 @ 1 OHM (CH7)
- 190W x 6 + 1600W x 1 @ 2 OHM
- 120W x 6 + 1000W x 1 @ 4 OHM
- 350W x 3 bridged @ 4 OHM
Filtering & Specs
- Frequency Response: 10Hz – 24KHz (CH1–CH6), 10Hz – 250Hz (CH7)
- CH1/2 HPF: 20Hz – 800Hz
- CH3/4 HPF: 20Hz – 800Hz, LPF: 50Hz – 800Hz (bandpass capable)
- CH5/6 HPF: 20Hz – 800Hz, LPF: 50Hz – 800Hz (bandpass capable)
- CH7 Subsonic: 10Hz – 50Hz, LPF: 35Hz – 250Hz
- Input Sensitivity: 6V – 0.2V
- Signal-to-Noise Ratio: 80dB
- THD @ 4 OHM: 0.1%
- Fuse Rating: 330A
- Remote bass knob included
- Made in Korea
Dimensions
- 20.47 inch × 9.37 inch × 2.71 inch
The JP77 is ideal when you want one amplifier to run your whole system with serious bass power on tap.
Shipping
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
