DS18 60 ampere selectable charger and power supply. Good for Lead Acid, AGM, and Lithium batteries Wire Clamps Included Made In Brazil
- Product Overview

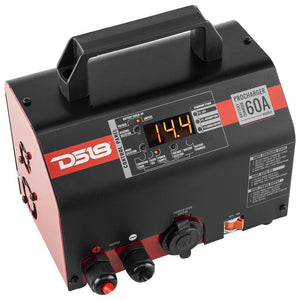

The new BC60L procharger is a high-performance power supply that can give a maximum current of 60 amps and operate in 3 different PHASES for the most efficient charging. The three modes available are Elevation, Absorption, and Equalization. The first phase (Elevation) is a pulsating constraint current which brings your battery up from low voltage safely. The next phase is (Absorption) which gives constant voltage as soon as a safe resting voltage is detected. The last phase is Equalization. This phase keeps the battery at safe resting voltage but sends pulses of 14.5v every 5 minutes to give the battery maximum charge while safely balancing the battery for longer battery life. Internal cooling fans and digital display help you breeze through the options.
There are 3 additional modes. The first is Charging State which is 3 phase charging. The next is AUTO ICS. This mode allows for quick charging and pulses the system between 13.8 to 14.4v in short bursts. This mode is not recommended for a dead battery. The last is POWER SUPPLY mode which acts like a full amperage power supply for a system that does not have or requite batteries.
|Input(Automatic Bi-volt):||90 to 140Vac /170 to 240Vac 240Vac|
|Consumption with maximum Load:||900W|
|Maximum output current:||60 Amperes|
|Selectable Output Voltage:||12.6V/128V/13v/13.2V/13.8V/14V/14.2V/14.4V|
|Intelligent Charging System:||13.8/ 14.4 Vdc cyclic|
|Accuracy Voltmeter / Amp Meter :||99% /96%|
|Protections:||overload / short on out temperature|
|Dimesions L x W D (mm):||204 x 170 x 123 mm|
|Weight kg 2.750 :||1.5|
