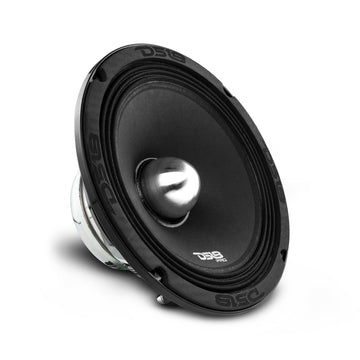

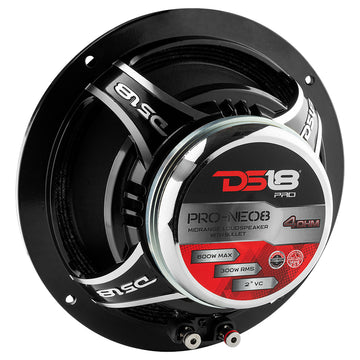

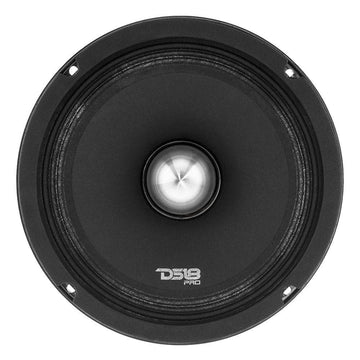

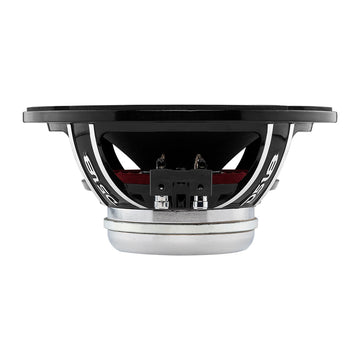

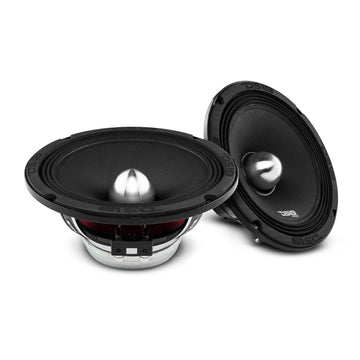

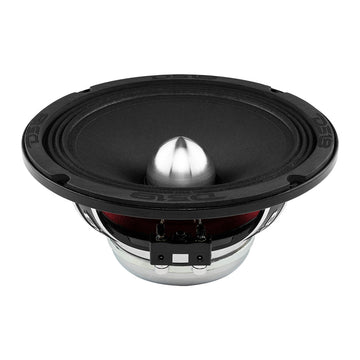

DS18 PRO-NEO8 8" Neodymium Mid-Range Loudspeaker with Bullet 600 Watts 4-Ohm
DESCRIPTION
- Product Overview
Product Overview
|
DS18 amassed a wealth of experience in manufacturing the most elegant neodymium midranges for those seeking simple perfection. Neodymium magnets provide a higher magnetic flux density in the air gap, which generates a much greater action force in the voice coil. For this reason, Neo magnets have the strongest permanent magnets of all the commercially available speakers. Ranging in sizes, mounting depths, and frequency responses, we have more than 10 different models of Neo midranges to accommodate any build. Highlights
|
| Model: | PRO-NEO8 |
| Type: | Midrange Loudspeaker |
| Size: | 8" |
| RMS Power: | 300W |
| MAX Power: | 600W |
| Frequency Response: | 95Hz - 9.5KHz |
| Impedance: | 4 Ohms |
| Sensitivity: | 98.9dB |
| Materials | |
| Surround: | Cloth Edge |
| Frame: | Heavy Duty Aluminum |
| Cone: | Basket |
| Magnet: | Non-Pressed Paper Cone |
| Voice Coil Wire: | KCCAW 2 Layer |
| Measurements | |
| Voice Coil Size: | 1.5" (38.6mm) |
| Magnet Size: | NEO 80 oz. (105 x 56 x 6) |
| Mounting Depth: | 3.38" (86mm) |
| Cut-Out Dimensions: | 7.17" (182mm) |
