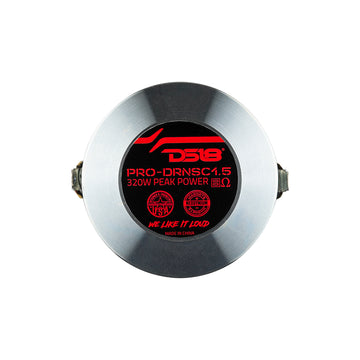

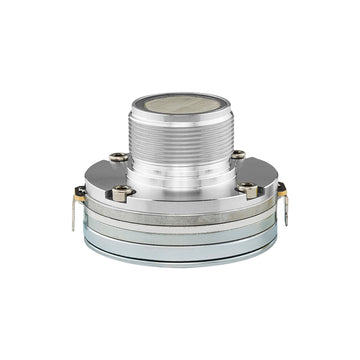

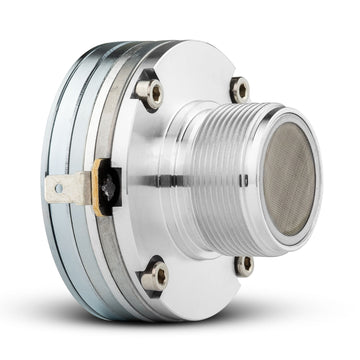

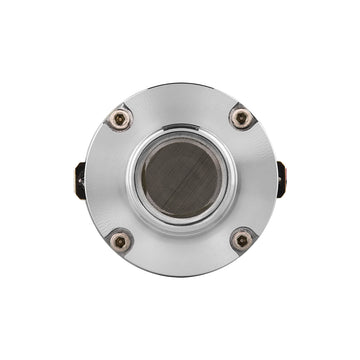

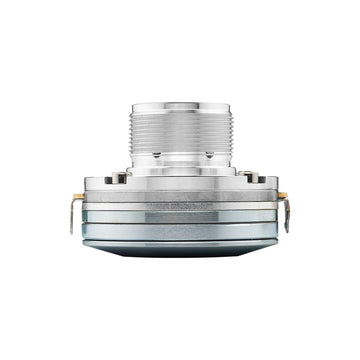

DS18 PRO-DRNSC1.5 1" Screw On Neodymium Compression Driver with 1.5" Polyimide VC 8 ohm

  • $79.95
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION

DESCRIPTION

The PRO-DRNSC1.5 boasts unmatched power handling for the Pro Audio sound you love. This neodymium compression driver ensures unparalleled performance that delivers impressive sound with striking clarity and limitless depth. Equipped with a highly durable 1.5” voice coil, these drivers are guaranteed to perform at their maximum potential for the entirety of any jam session. This compression driver doesn’t draw an excessive amount of power from your amplifier & ensures long lasting performance from your equipment.

Highlights

  • 80W AES Power Handling; 160W Program Power Handling; 320W Peak Power Handling
  • Drop-in voice coils for fast and easy repairs in the rare occasion they are overpowered
  • Screw-On functionality for easy install
  • Neodymium Magnets to ensure the highest efficiency, and power handling, without the bulk of traditional ferrite magnets
  • Compact driver with functionality in spaces most drivers can’t fit
  • Made to fit most standard thread on horn throats
  • 109dB sensitivity for easy climbs to MAX volume

Great For

  • Car Audio
  • Pro Audio
  • DIY Projects
  • Motorcycles
  • Stunt Walls

SPECIFICATIONS
Throat Diameter 1" / 25.4mm
Installation Type Screw-On
Nominal Impedance  8 ohms
AES Power handling 80 W
Program Power Handling  160 W
Peak Power handling 320 W
Sensitivity (1w/1m)  109 dB
Frequency Response 1K-20KHz
Recommended Hi Pass Crossover 2KHz
Pair or Single Single
MOTOR
Voice Coil Diameter 1.5" / 38mm
Voice Coil Former Material  Kapton
Winding Material  Aluminum
Diaphragm Material Polyimide
Magnet Material Neodymium (N38H)
Magnet Weight 2.4 oz
Body Color / Finish Silver / Raw
Body Material Aluminum
MEASUREMENT
Overall Diameter 2.52" / 64mm
Overall Depth 1.93" / 49.2mm
Bolt Pattern/Type M34 - 1.34"
Mounting Depth 1.3" / 33mm
