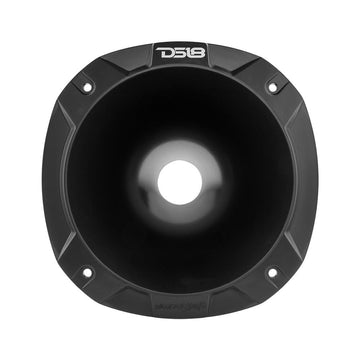

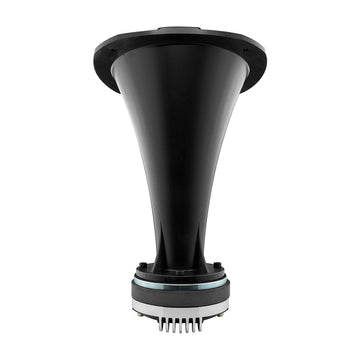

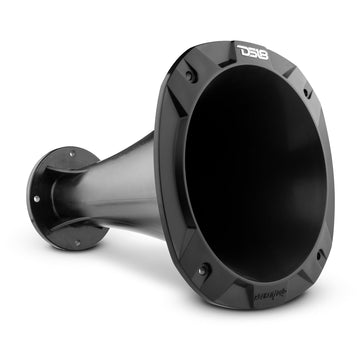

DS18 PRO-HP202 Bolt On 2" Throat 27° 10.84" Depth Plastic Horn
- Product Overview
DS18’s PRO-HP202 is our latest and greatest in throated horns!
This horn has a mounting depth of 10.84” and a throat diameter of 2” expanding your directional sound by almost ONE HUNDRED TIMES!
This horn is built for compression drivers and constructed from ABS Plastic for higher resistance to corrosion and physical damage!
To give your system a more polished look, DS18 is offering the PRO-HP202 in four glossy finished colors: Blue, Gold, Red and Red with White Inside.
This bolt on throat horn requires a 4-bolt pattern on your driver to be installed correctly.
Get full sound coverage with the PRO-HP202!
- ABS Plastic Frame
- Longer horn for EXTREME Directional Volume
- 4 bolt pattern for comparability for most bolt on drivers
- Stunt Walls
- Car Audio
- Ferrite 4-bolt drivers
- Neodymium 4-bolt drivers
|Throat Diameter:||2" / 50.8mm|
|Nominal Horn Diameter:||8"|
|Sound Coverage:||27° Rounded|
|Overall Diameter:||9.69" / 246mm|
|Overall Depth:||11.25" / 286mm|
|Mounting Depth:||10.84" / 275.336mm|
|Driver Bolt Pattern:||4"/ 102mm x 4-0.26" / 6.8mm|
|Mounting Bolt Pattern:||8.58" / 218mm x 4- 0.21" / 5.5mm|
|Mounting Hole Diameter:||7.95" / 202mm|
