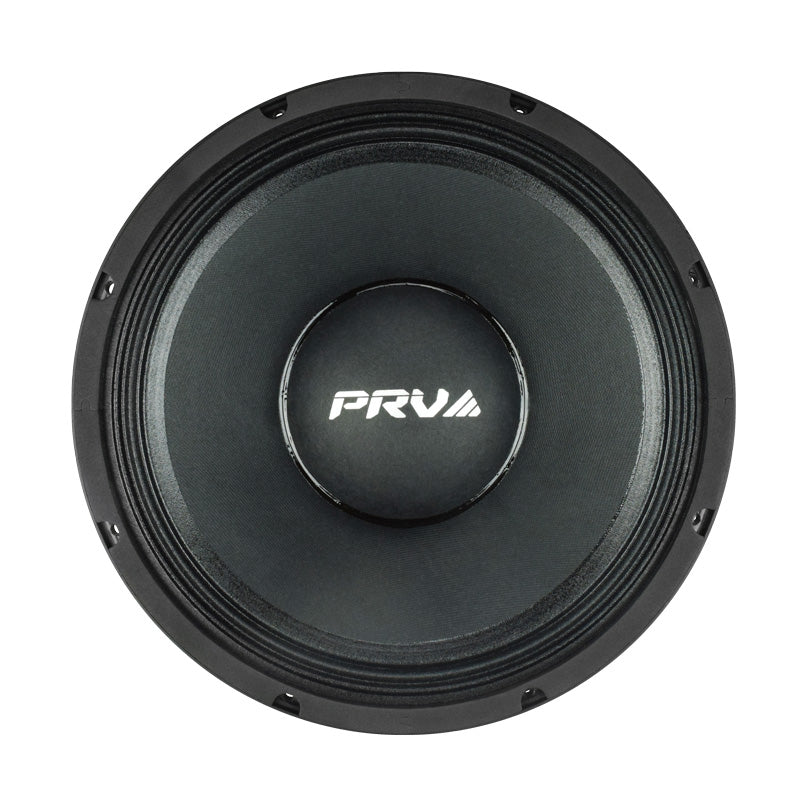

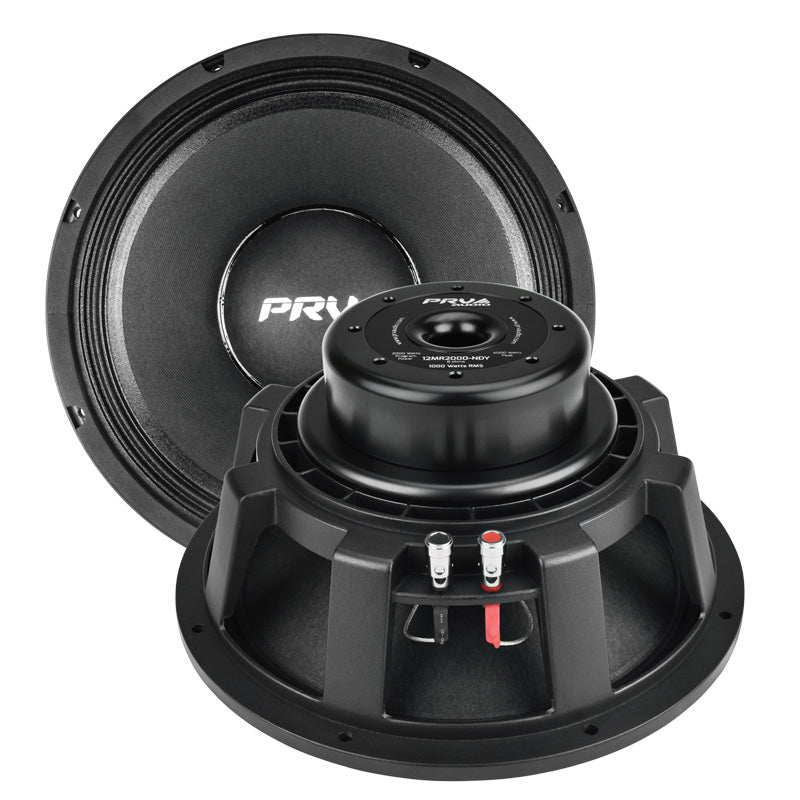

PRV Audio 12MR2000-NDY 12" MIDRANGE LOUDSPEAKER
DESCRIPTION
- Product Overview
Product Overview
Features
The new 12MR2000-NDY will sure change the game on vocal reproduction!
Features a large 4” CCAW inside/out voice coil that results in very high efficiency while providing smooth and accurate Mid Range response.
Highlights
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 1000 Watts
- Program Power: 2000 Watts
- Sensitivity (1W/1m): 98 dB
- Voice Coil Diameter: 4″
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 12″ (305 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 1000 Watts |
| Program Power | 2000 Watts |
| Sensitivity 2.83V at 1m | 98 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
180 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 55 – 5,500 Hz |
| Voice Coil Diameter | 4″ (100 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 16.8 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 9.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 48.16 l |
| Excursion (mathematical)*** | Xmax | 6.15 mm |
| Free Air Resonance | Fs | 54.48 Hz |
| Mechanical Factor | Qms | 17.61 |
| Electrical Factor | Qes | 0.35 |
| Total Factor | Qts | 0.34 |
| Cone Area | Sd | 573 cm² |
| Mechanical Mass | Mms | 81.11 g |
| Bl Factor | Bl | 22.77 Tm |
| Dc Resistance | Re | 6.6 Ohms |
| Inductance | Le | 0.69 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 73.35 g |
| Mechanical Compliance | Cms | 0.105 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 12.32” (313 mm) |
| Front Mount Baffle Cutout | 11.12” (282.5 mm) |
| Mounting Depth | 5.97” (151 mm) |
| Overall Depth | 5.63” (143 mm) |
| Net Weight | 13.93 Lbs (6.32kg) |
| Shipping Weight | 18.27 Lbs (8.29 kg) |
| Carton Dimensions W x L x H | 12.6” x 12.6” x 7.8” (363 x 363 x 205mm) |
