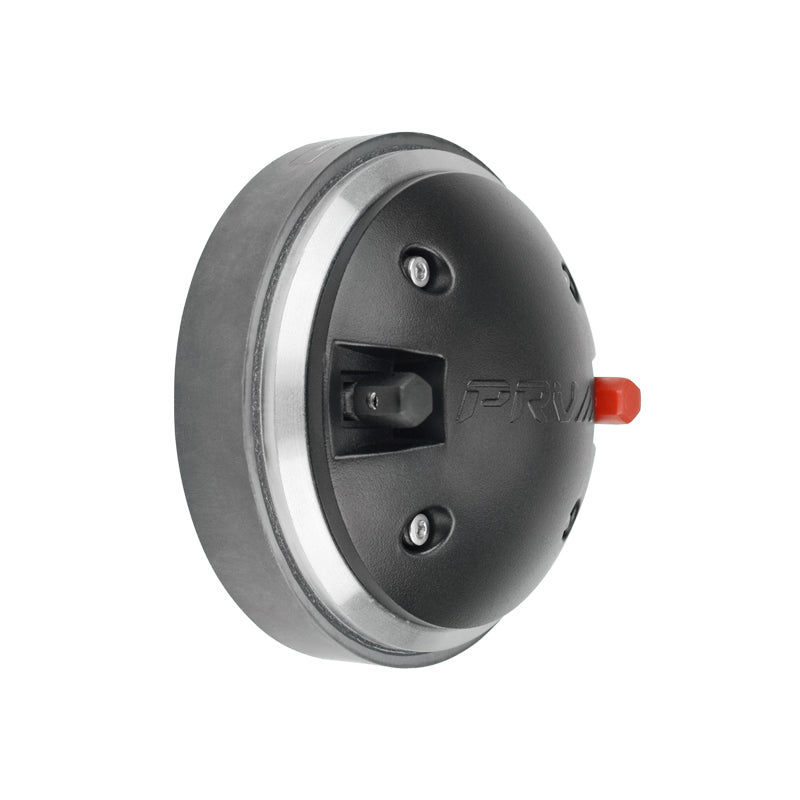

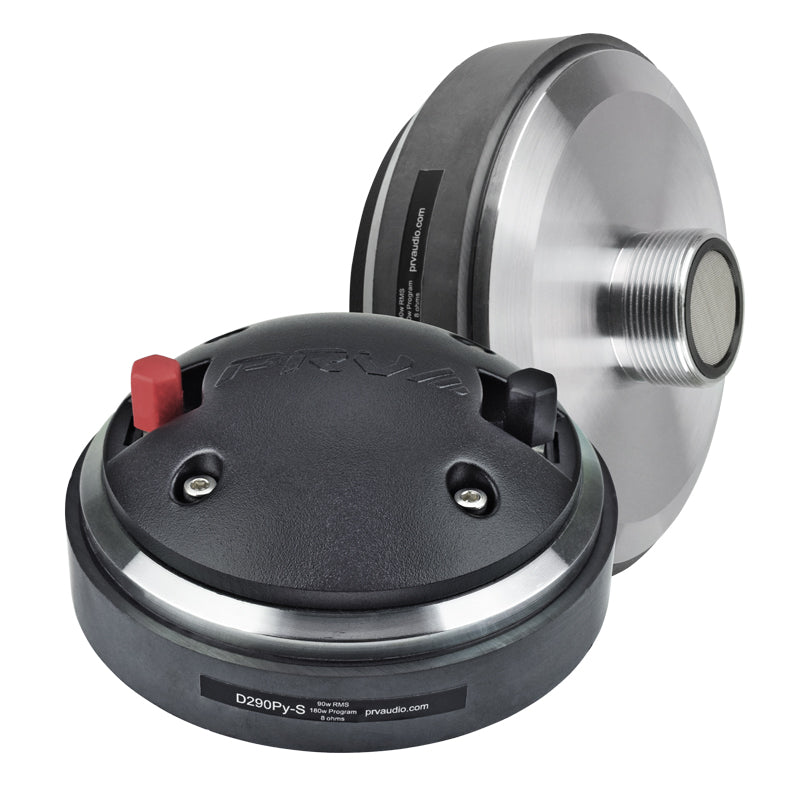

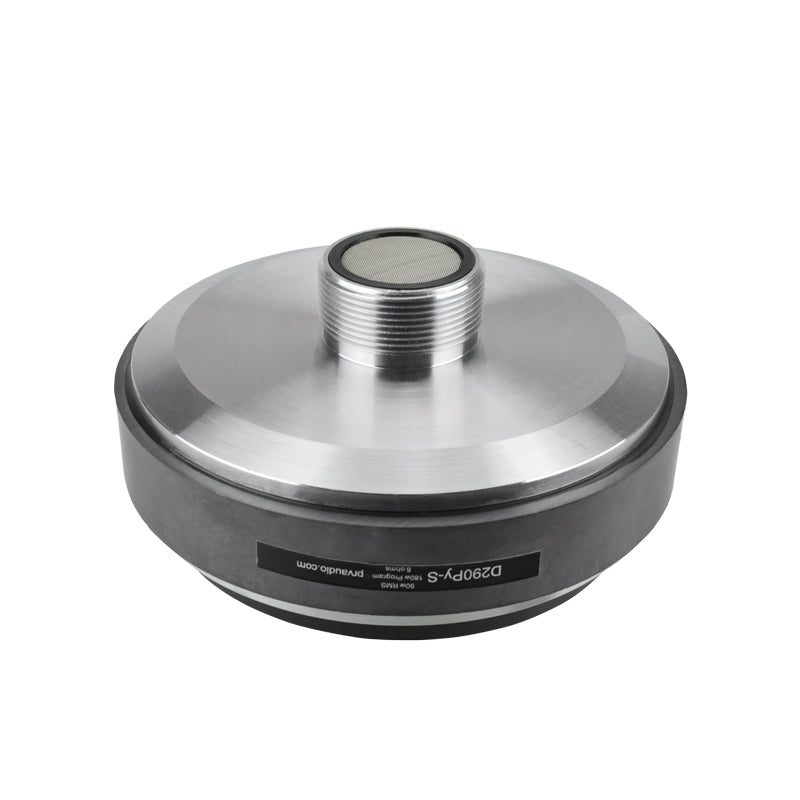

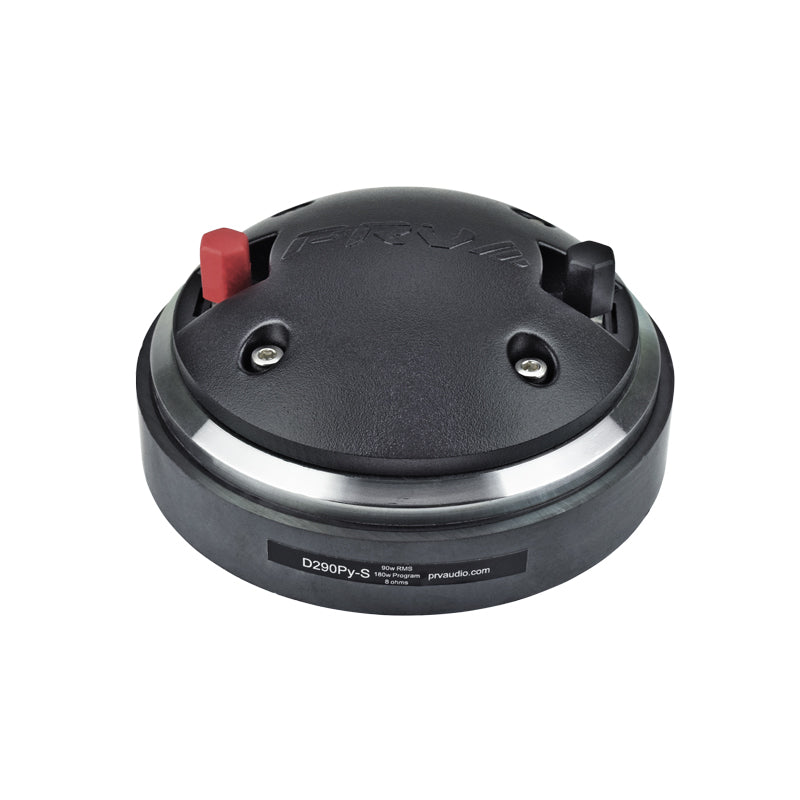

PRV D290Py-S 1" EXIT PRO AUDIO POLYIMIDE COMPRESSION DRIVER
- Product Overview
The PRV Audio D290Py-S 1″ Pro Audio Compression Driver offers unsurpassed vocal and midrange reproduction. Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required.
- Throat Diameter: 1″
- Type: Screw-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 90 Watts
- Program Power: 180 Watts
The Polyimide diaphragms supersede titanium diaphragms, being able to play low frequencies without shattering and performing more accurately at high frequencies.
A specially designed and easily replaceable Polyimide diaphragm on a Kapton former results in a more natural sound with smoother and more accurate high frequency reproduction. The D290Py-S is perfect for stage monitors, studio monitors, and other loudspeaker enclosures where high sound quality and light weight is required.
The D290Py-S is assembled with a standard 1 3/8” screw for easy replacement with current 1” horns.
|Exit Throat Diameter||1” (25.4mm)|
|Nominal impedance||8 Ohms|
|Rated AES Power Handling (RMS)||90 Watts|
|Program Power||180 Watts|
|Sensitivity 2.83V at 1m||109 dB|
|Recommended Hi Pass Crossover** **For Full Power Handling||1000 Hz** **12db Per Octave Crossover|
|Frequency Response at -10dB||650 – 19,000 Hz|
|Voice Coil Diameter||1.75”(44.4 mm)|
|Voice Coil Wire||Copper|
|Voice Coil Former Material||Kapton|
|Flux Density||1.85 T|
|Overall Diameter||4.72” (120 mm)|
|Overall Depth||3.07” (65 mm)|
|Mounting Thread||1 3/8” 18 TPI|
|Net Weight||4.96 lbs (2.25 kg)|
|Shipping Weight||5.15 lbs (2.33 kg)|
|Carton Dimensions W x L x H||5.51” x 5.31” x 3.35” (140 x 135 x 85 mm)|
