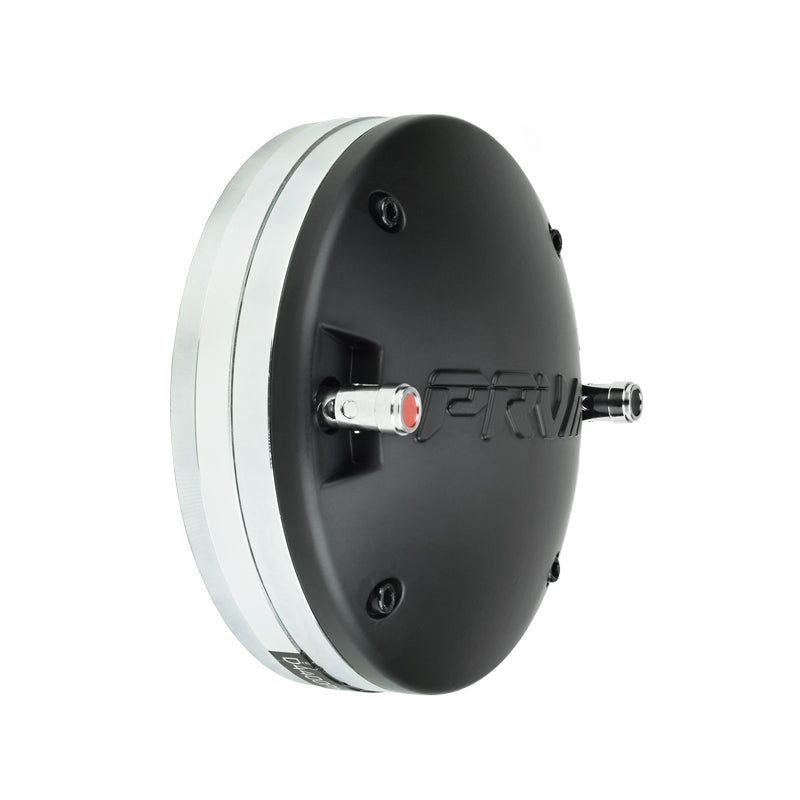

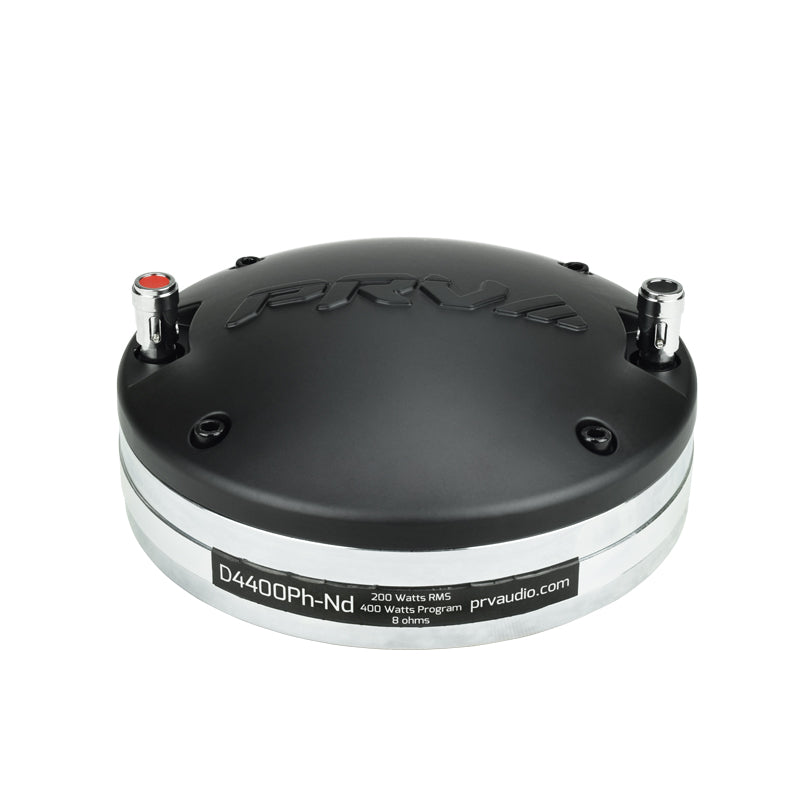

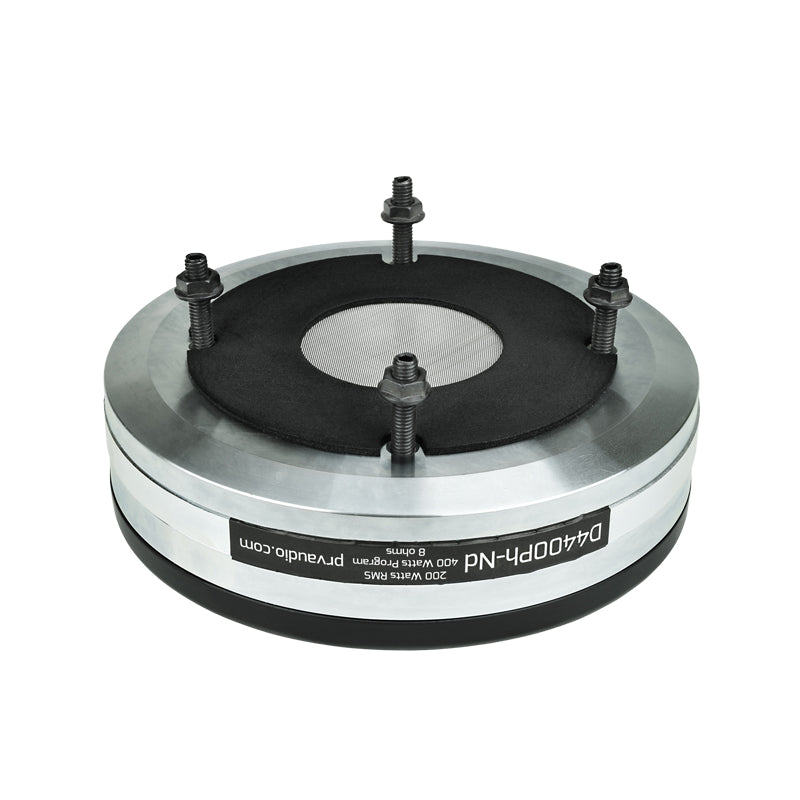

PRV AUDIO D4400Ph-Nd PRO AUDIO PHENOLIC NEODYMIUM COMPRESSION DRIVER
DESCRIPTION
- Product Overview
Product Overview
Features
The D4400Ph-Nd 2” exit Phenolic Mid-range Frequency is the neodymium version of our D4400Ph. The nearly indestructible Phenolic Diaphragm structure, designed for vocal reproduction, allows low midrange reproduction from 650 Hz. This driver is recommended for midrange support in multi-way PA’s, stage monitors, side fills and high SPL car audio systems.
The lightweight D4400Ph-Nd is designed to ensure a quality sound and long lasting play in most any environment.
Highlights
- Throat Diameter: 2″
- Type: Bolt-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 200 Watts
- Program Power: 400 Watts
Technical Details
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 200 Watts |
| Program Power | 400 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 700 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 450 – 7,500 Hz |
| Voice Coil Diameter | 4”(101.6 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic resin |
| Flux Density | 1.90 T |
| Magnet Material | Neodymium |
EXTRA INFO
| Overall Diameter | 6.06” (154 mm) |
| Overall Depth | 2.48” (63 mm) |
| Mounting Bolt Circle | M6x4 4” (101.6 mm) |
| Net Weight | 8.82 lbs (4 kg) |
| Shipping Weight | 8.88 lbs (4.28 kg) |
| Carton Dimensions W x L x H | 6.89” x 6.89” x 3.74” (175 x 175 x 95 mm) |
