Features

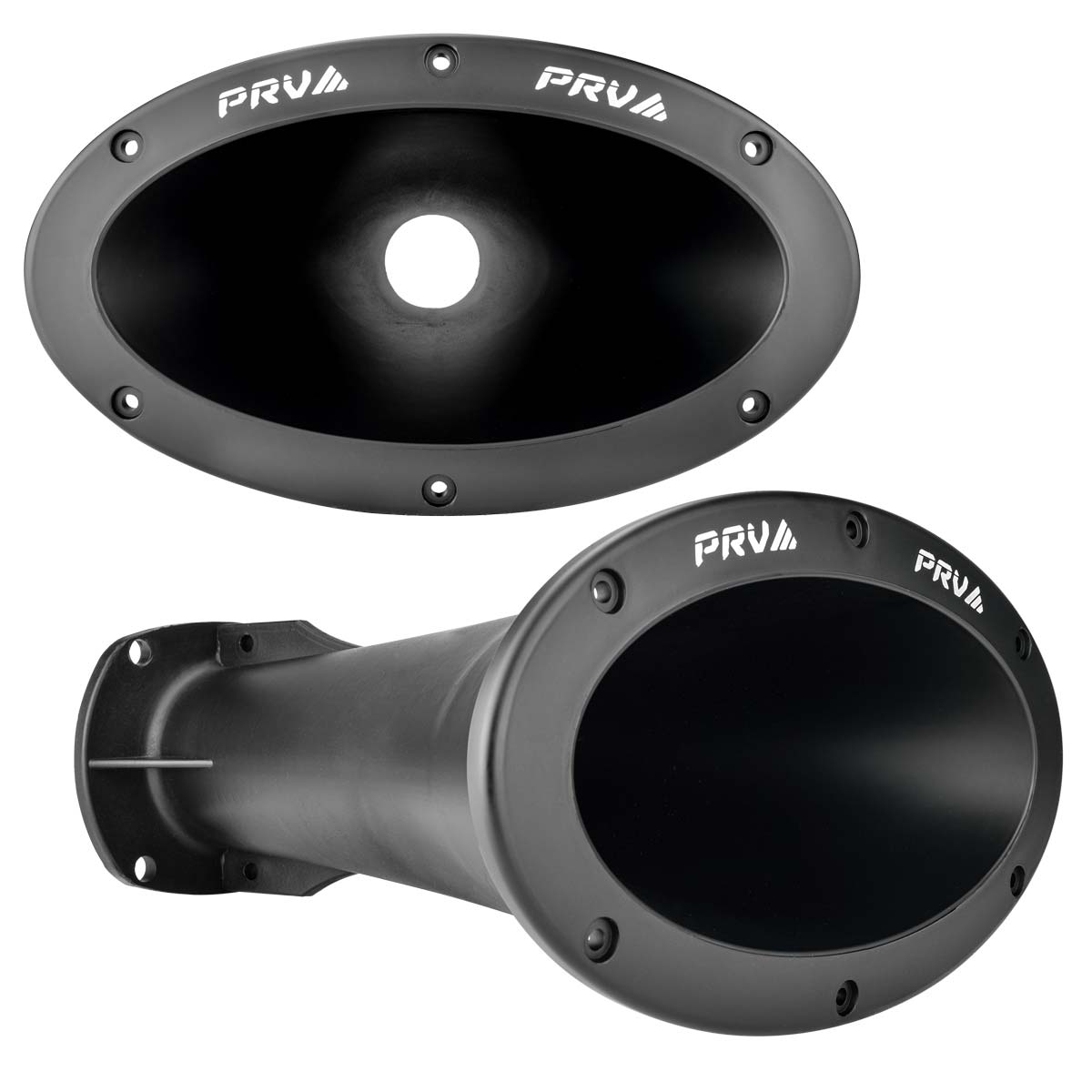

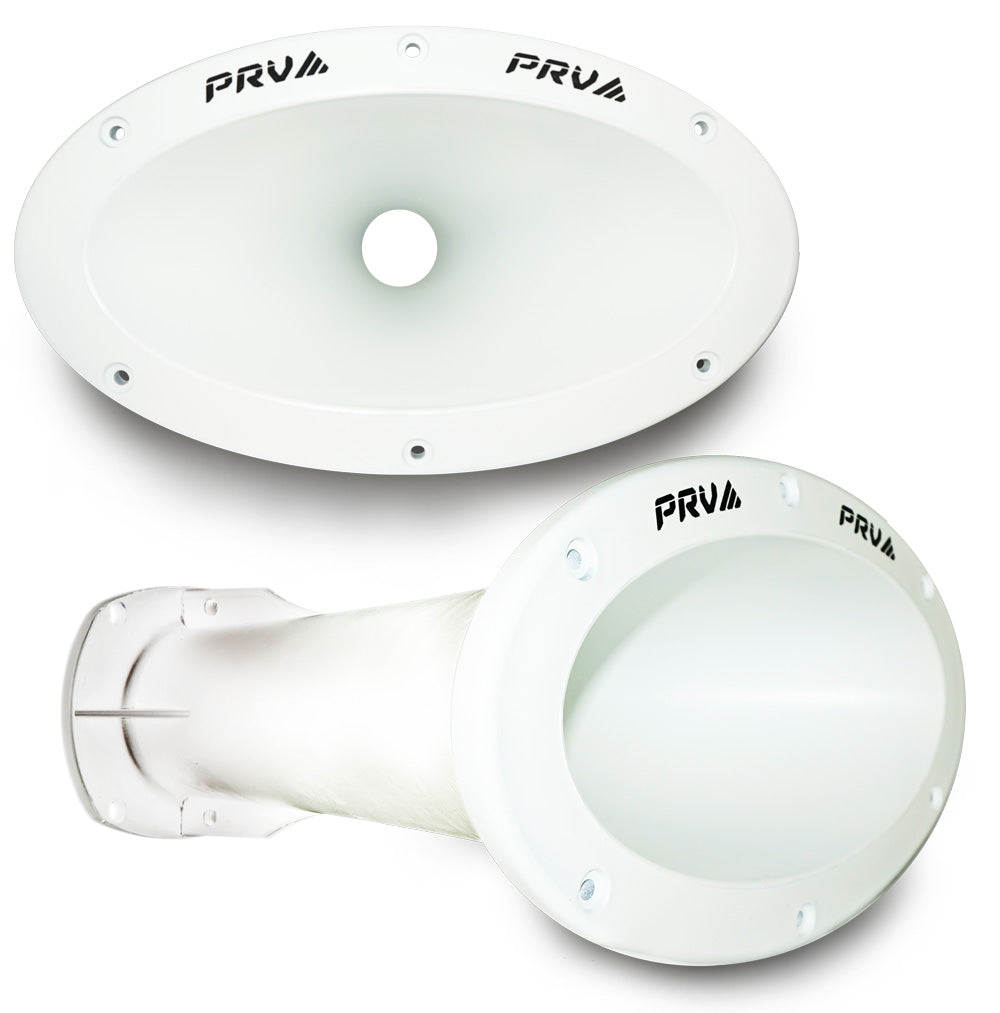

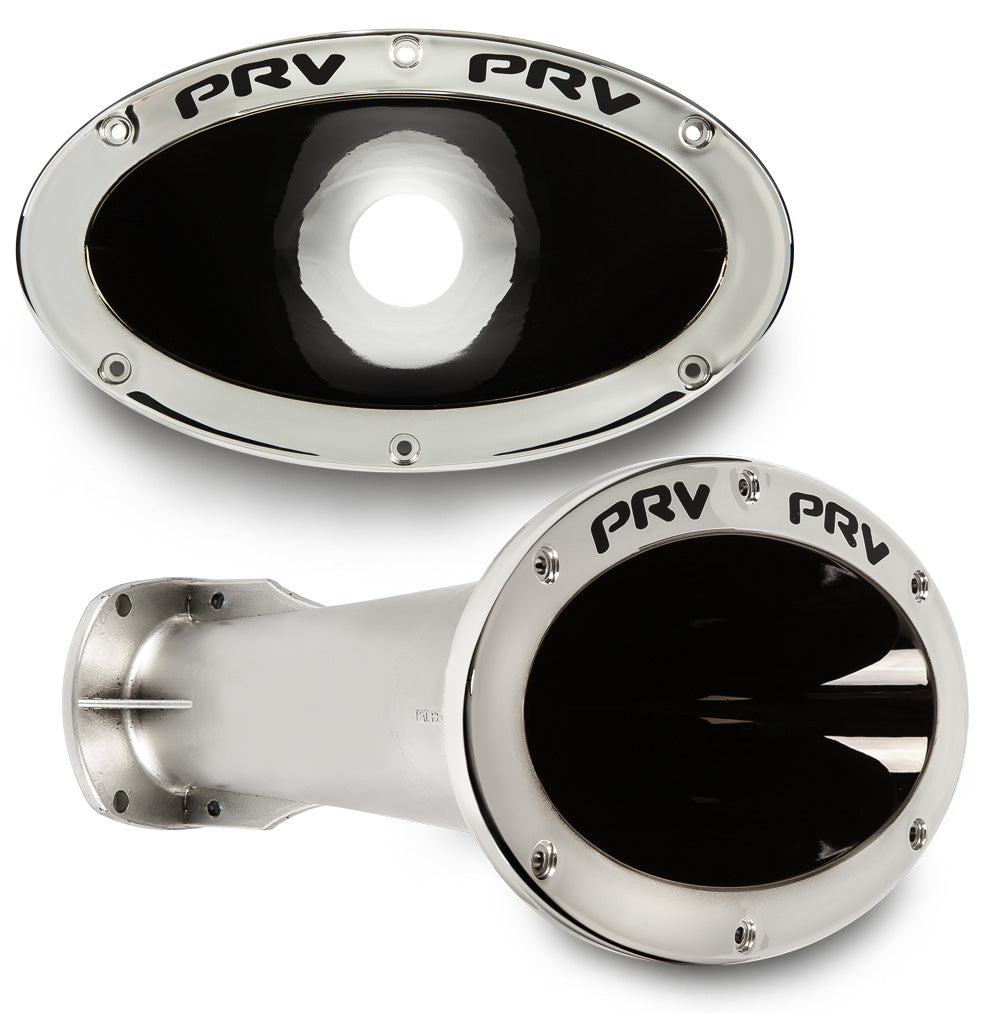

2″ Exit – ABS Plastic Wave Guide – Bolt-on
Highlights
- 2” Throat Diameter
- Light weight
- Bolt-on
- 50° x 25° Nominal Coverage
Technical Details
GENERAL SPECIFICATIONS
Throat Diameter | 2” (50.8 mm) |
Mounting Type | Bolt-on |
Hole Dimensions | 0.38″ 9.8 mm |
Bolt Circle | 4″ 101.6 mm |
Nominal Coverage | |
Horizontal | 50° |
Vertical | 25° |
Flare type | Exponential |
Material | Plastic (ABS) |
Finish / Coating | Black |
Dimensions | |
Height | 6.73″ (171 mm) |
Width | 11.65″ (296 mm) |
Depth | 10.43″ (265 mm) |
Mount Depth | 10.08″ (256 mm) |
Baffle Cutout (ellipse shaped) | |
Width | 9.44″ (240 mm) |
Height | 4.92″ (125 mm) |
Net weight | 0.95lb (0.43 kg) |

Shipping | This item ships to |
Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
Description
Features
2″ Exit – ABS Plastic Wave Guide – Bolt-on
Highlights
- 2” Throat Diameter
- Light weight
- Bolt-on
- 50° x 25° Nominal Coverage
Technical Details
GENERAL SPECIFICATIONS
Throat Diameter | 2” (50.8 mm) |
Mounting Type | Bolt-on |
Hole Dimensions | 0.38″ 9.8 mm |
Bolt Circle | 4″ 101.6 mm |
Nominal Coverage | |
Horizontal | 50° |
Vertical | 25° |
Flare type | Exponential |
Material | Plastic (ABS) |
Finish / Coating | Black |
Dimensions | |
Height | 6.73″ (171 mm) |
Width | 11.65″ (296 mm) |
Depth | 10.43″ (265 mm) |
Mount Depth | 10.08″ (256 mm) |
Baffle Cutout (ellipse shaped) | |
Width | 9.44″ (240 mm) |
Height | 4.92″ (125 mm) |
Net weight | 0.95lb (0.43 kg) |
