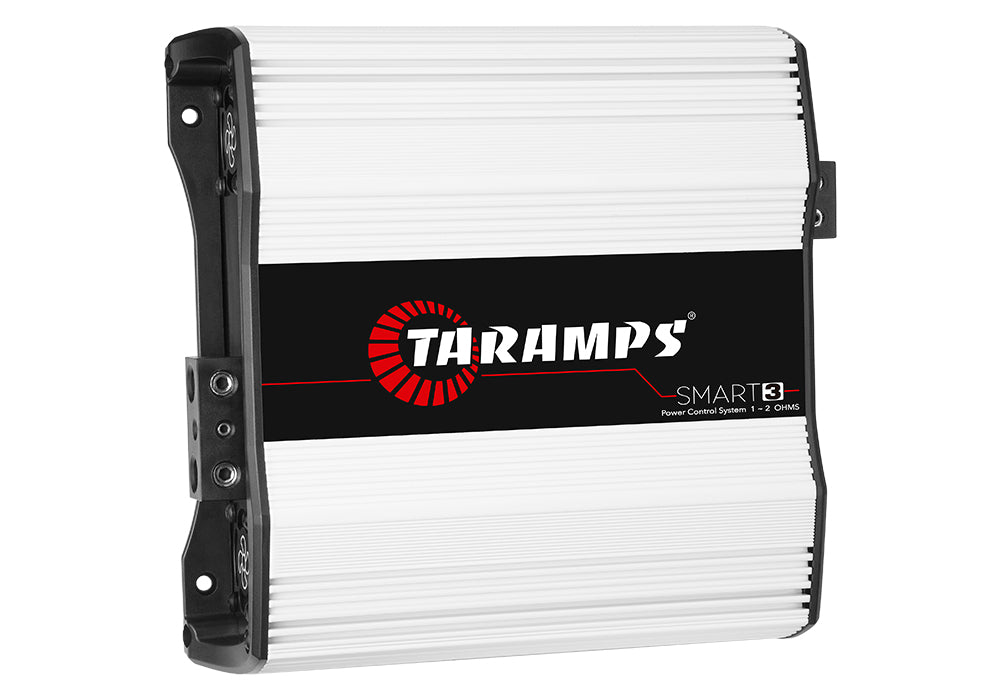

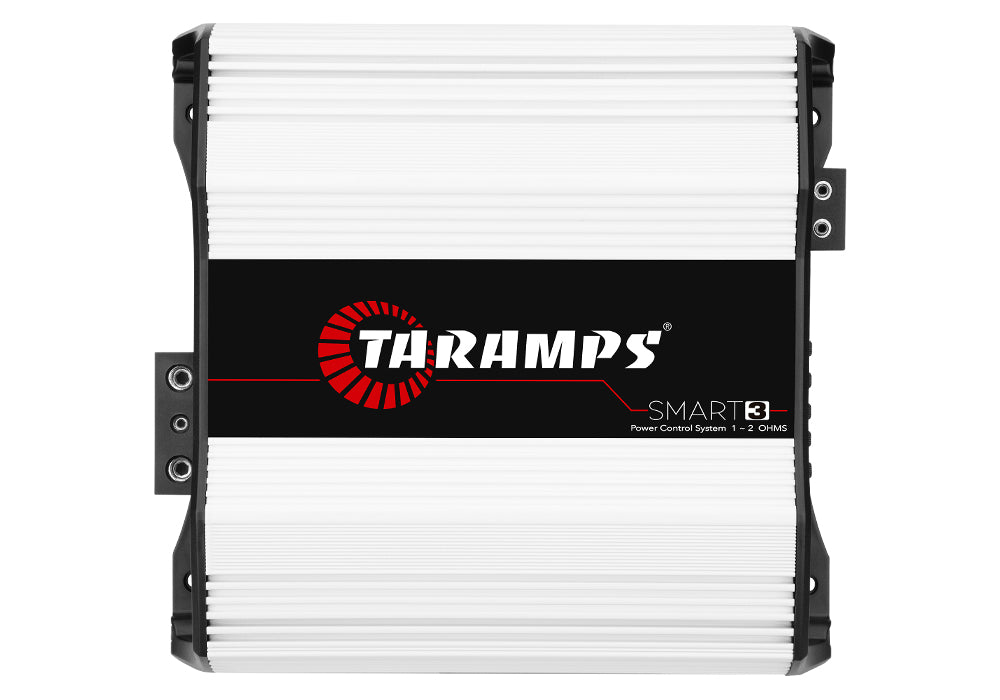

SMART 3 – 1~2 OHMS Amplifier Module 3000 watts RMS Classe D (1 channel 3000W RMS)
DESCRIPTION
- Product Overview
Product Overview
| OPERATION CLASS | Class D |
|---|---|
| NUMBER OF CHANNELS | 01 |
| MAXIMUM POWER | @ 12.6 VDC - 1 OHM: 3000W RMS @ 12.6 VDC - 2 OHMS: 3000W RMS @ 12.6 VDC - 4 OHMS: 2000W RMS |
| INPUT SENSITIVITY | 0.22V ~ 4V |
| SIGNAL TO NOISE RATIO | >90dB |
| FREQUENCY RESPONSE | 10Hz ~ 10KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 10Hz ~ 90Hz (-12dB/8ª) Variable |
| CROSSOVER LOW PASS (LPF) | 90Hz ~ 10KHz (-12dB/8ª) Variable |
| BASS BOOST | Freq.: 35Hz ~ 55Hz Boost: 0 ~ +10dB |
| EFFICIENCY | 79% |
| INPUT IMPEDANCE | 10K Ohms |
| PROTECTION SYSTEM | Output short-circuit, low/high supply voltage and thermal protection |
| MIN. SUPPLY VOLTAGE | 9 VDC |
| MAXIMUM POWER SUPPLY VOLTAGE | 16 VDC |
| CONSUMPTION AT REST | 2.40 A |
| MAXIMUM MUSIC CONSUMPTION | 150 A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 300 A |
| DIMENSIONS (H X W X D) | 8.98" x 2.76" x 9.37" |
| WEIGHT | 5.72lb |
