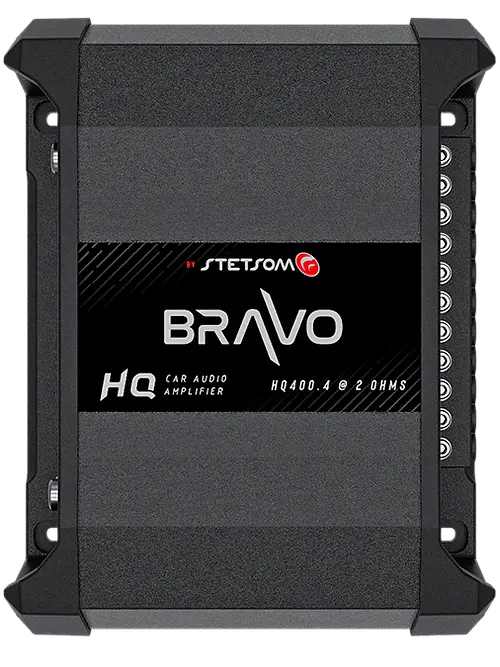

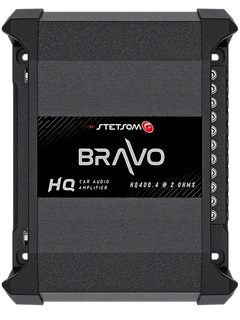

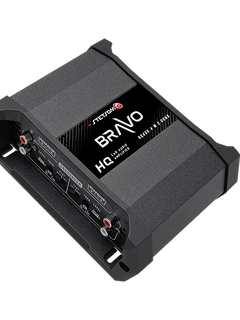

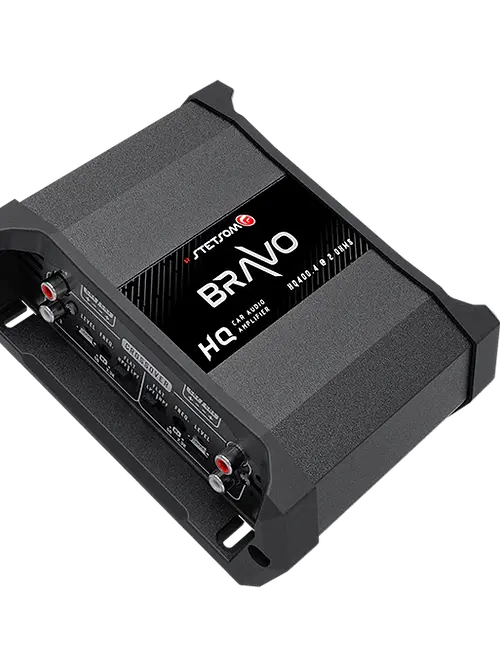

The BRAVO HQ range was developed for car audio lovers looking for performance and sound quality, using a compact, discreet and quiet amplifier.

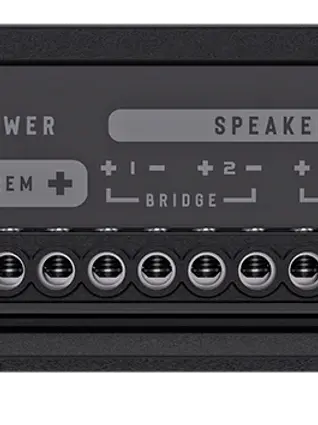

The amplifier has 4 output channels compatible with bridge mode, frequency cut and level controls, perfect for precise adjustments. Its frequency response of 5Hz to 30kHz allows it to be used in a variety of projects, with subwoofers, woofers, drivers and tweeters.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | BRAVO HQ400.4 – 2 OHMS |
|---|---|
| Number of Channels | 4 |
| RMS Power | 400W |
| RMS Power at 4 Ohm | 2 x 180W RMS @ 14.4V (BRIDGE) |
| RMS Power at 2 Ohm 12.6V | 4 x 85W RMS |
| RMS Power at 4 Ohm 12.6V | 4 x 50W RMS |
| RMS Power at 2 Ohm 14.4V | 4 x 105W RMS |
| RMS Power at 4 Ohm 14.4V | 4 x 60W RMS |
| Power @ 12.6V Bridge 4 Ohms | 2 x 150W RMS (BRIDGE) |
| Supply Voltage | 9V ~15,5V DC |
| Frequency Response | 5Hz ~30KHz |

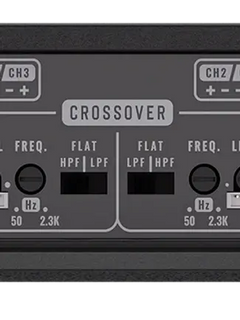

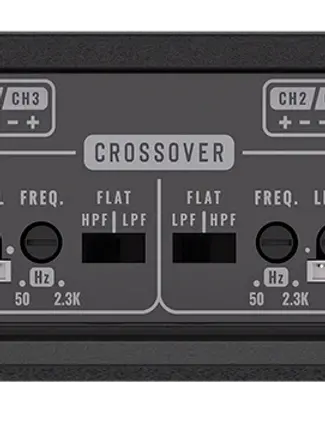

| Crossover Low Pass | 50Hz ~ 2,3KHz (Variable) |
| Crossover High Pass | 50Hz ~ 2,3KHz (Variable) |
| Signal to Noise | >90dB |
| Harmonic Distortion | <1% |
| Input Sensitivity | RCA: 200mV ~ 8,0V / HIGH: 1,5V (FIO) |
| Input Impedance | RCA: 15K Ohms / HIGH: 1K Ohms |
| Impedance Output | 2 OHMS (STEREO) |
| Consumption with Signal Musical | 17A |
| Consumption with Signal Bass | 34A |
| Dimensions (H x W x D) mm | 58,5 x 127 x 167 mm |
| Weight Kg | 640g |
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
Description
The BRAVO HQ range was developed for car audio lovers looking for performance and sound quality, using a compact, discreet and quiet amplifier.
The amplifier has 4 output channels compatible with bridge mode, frequency cut and level controls, perfect for precise adjustments. Its frequency response of 5Hz to 30kHz allows it to be used in a variety of projects, with subwoofers, woofers, drivers and tweeters.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | BRAVO HQ400.4 – 2 OHMS |
|---|---|
| Number of Channels | 4 |
| RMS Power | 400W |
| RMS Power at 4 Ohm | 2 x 180W RMS @ 14.4V (BRIDGE) |
| RMS Power at 2 Ohm 12.6V | 4 x 85W RMS |
| RMS Power at 4 Ohm 12.6V | 4 x 50W RMS |
| RMS Power at 2 Ohm 14.4V | 4 x 105W RMS |
| RMS Power at 4 Ohm 14.4V | 4 x 60W RMS |
| Power @ 12.6V Bridge 4 Ohms | 2 x 150W RMS (BRIDGE) |
| Supply Voltage | 9V ~15,5V DC |
| Frequency Response | 5Hz ~30KHz |
| Crossover Low Pass | 50Hz ~ 2,3KHz (Variable) |
| Crossover High Pass | 50Hz ~ 2,3KHz (Variable) |
| Signal to Noise | >90dB |
| Harmonic Distortion | <1% |
| Input Sensitivity | RCA: 200mV ~ 8,0V / HIGH: 1,5V (FIO) |
| Input Impedance | RCA: 15K Ohms / HIGH: 1K Ohms |
| Impedance Output | 2 OHMS (STEREO) |
| Consumption with Signal Musical | 17A |
| Consumption with Signal Bass | 34A |
| Dimensions (H x W x D) mm | 58,5 x 127 x 167 mm |
| Weight Kg | 640g |
Shipping
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
REVIEW
Plan the power behind your amplifier.
Amplifiers need the right subwoofer or speaker load, power wire, fusing, ground, and electrical support. Confirm the full system before ordering high-output gear.
