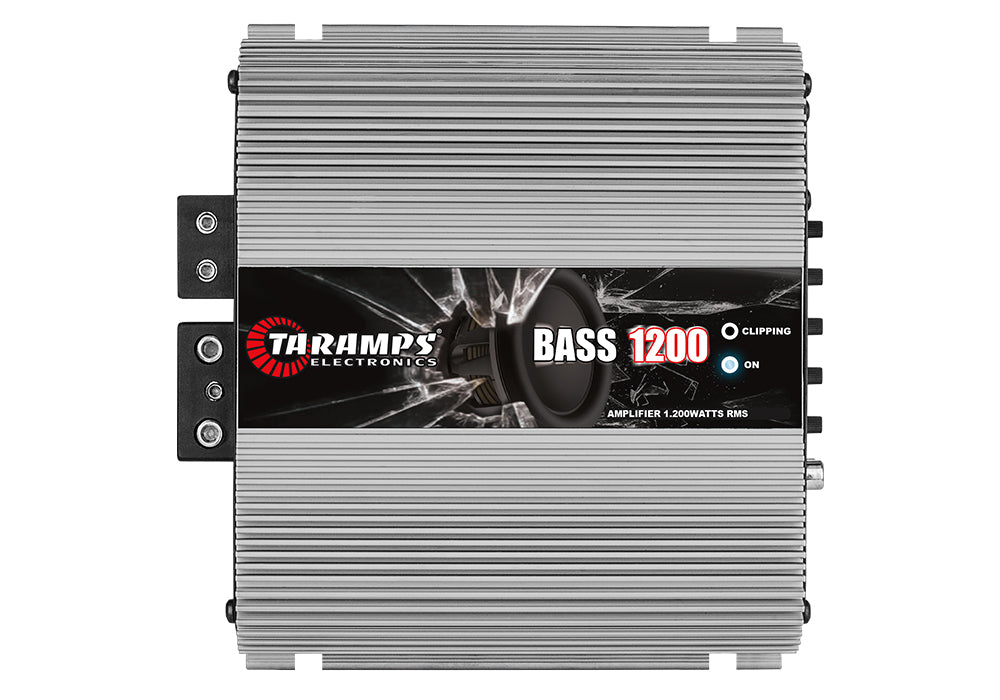

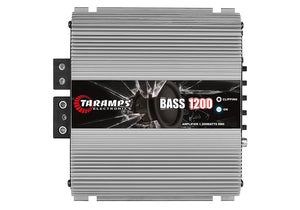

Taramps Bass 1200 1200W Class D Amplifier

  • $219.99
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

The BASS 1200 1 OHM amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems focused on subwoofer and bass response. Its maximum power is 1200W using 1 channel of 1 OHM, and frequency responses from 8Hz to 255Hz, with customized adjustments according to the size of the trunk, and the frequency of each vehicle. Through the BASS BOOST and the option of choosing the center frequency, this product can offer much more, excessive displacement control, through SUBSONIC FILTER, volume control and LOW PASS, to hear your bass in the right measure.

Operation class Class D
Number of Channels 01
Maximum power @ 14,4 VDC - 1 OHM: 1200 W RMS
@ 14,4 VDC - 2 OHMS: 680 W RMS
Input Sensitivity 230mV
Signal to Noise Ratio >90dB
Frequency response 8Hz to 250Hz (-3dB)
Crossover high pass (HPF) Variable, 8 to 30Hz (-12dB/8ª)
Crossover low pass (LPF) Variable, 60 to 250Hz (-12dB/8ª)
Bass Boost Parametric, 35 to 60Hz, 0 to +12dB
Thermal Management Smart Cooler with 2 speed
Input Impedance 10K OHMS
Output Impedance 1 Ohm
Protection system Output overload, low and high power voltage
Min. Supply Voltage 9 VDC
Maximum Power Supply Voltage 16 VDC
Consumption at rest 0,9 A
Maximum music consumption 55 A
Maximum consumption in sinusoidal signal 110 A
Dimensions (H x W x D) mm 7.24" x 2.13" x 6.97"
Weight 3.06lb
