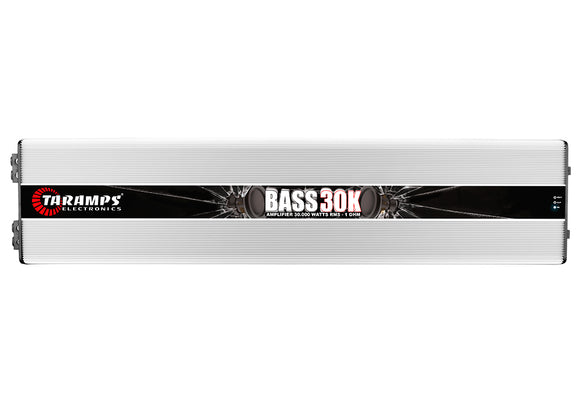

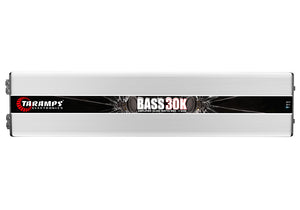

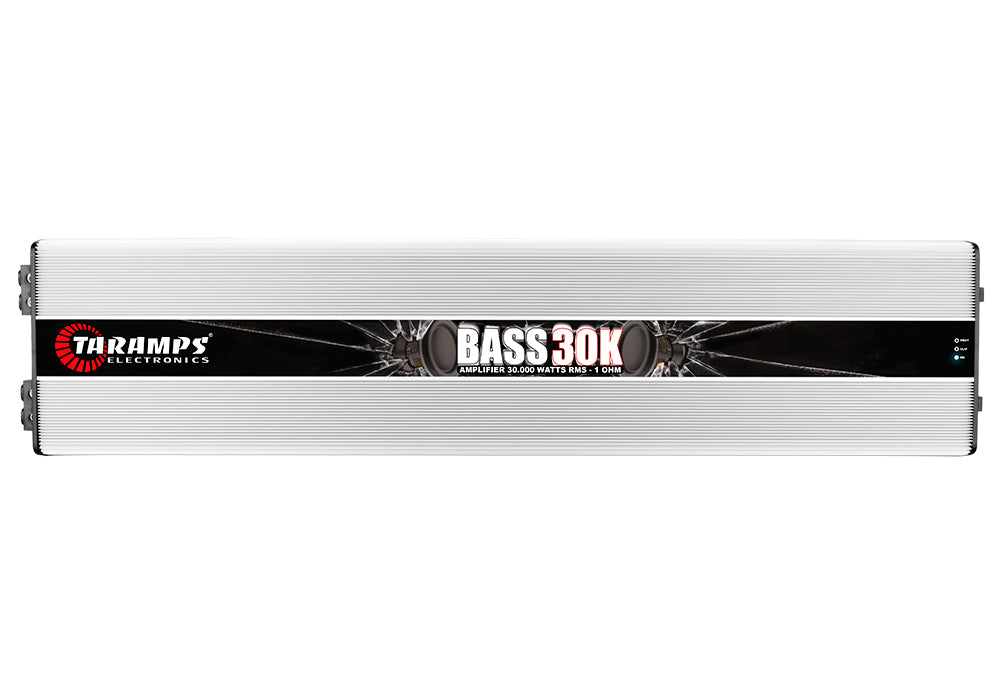

Taramps Bass 30K 30000W Class D Amplifier

  • $3,516.99
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

The BASS 30k amplifier module, is carefully designed with the highest technology, and high performance for automotive sound systems focused on subwoofer and bass response. Its maximum power is 30.000W using 1 channel of 1 OHM, and frequency responses from 8Hz to 250Hz, with customized adjustments according to the size of the trunk, and the frequency of each vehicle. Through the BASS BOOST and the option of choosing the center frequency, this product can offer much more, excessive displacement control, through SUBSONIC FILTER, volume control and LOW PASS, to hear your bass in the right measure.

Operation class Class D
Number of Channels 01
Maximum power @ 14,4 VDC - 1 OHM: 30000 W RMS
@ 14,4 VDC - 2 OHMS: 17010 W RMS
Input Sensitivity 400mV
Signal to Noise Ratio >90dB
Frequency response (-3dB) 8Hz to 250Hz
Crossover high pass (HPF) Variable, 8 to 30Hz (-12dB/8ª)
Crossover low pass (LPF) Variable, 60 to 250Hz (-12dB/8ª)
Bass Boost Parametric, (35 to 60Hz) 0 to +12dB
Efficiency 90%
Input Impedance 22K Ohms
Protection system Output Short / Short on output relative to GND / High and Low Power Supply and Thermal protection
Min. Supply Voltage 9VDC
Maximum Power Supply Voltage 17VDC
Consumption at rest 400mA
Maximum music consumption 1156A
Maximum consumption in sinusoidal signal 2312A
Dimensions (H x W x D) mm 9.37" x 2.79" x 41.10"
Weight 42.24lb
