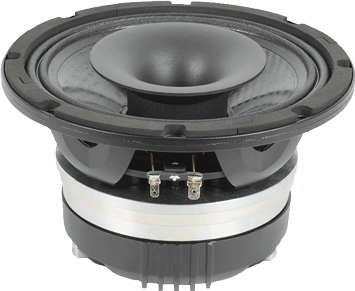

- BEYMA PRO8FX370ND COAXIAL SPEAKER INCLUDES A LIGHTWEIGHT NEODYMIUM 8" CAST FRAME SPEAKER & 1.4" EXIT HIGH FREQUENCY COMPRESSION DRIVER
- FEATURES A WATERPROOF CARBON FIBER CONE & ONE NEODYMIUM MAGNET FOR BOTH LOW & HIGH FREQUENCY FOR PROPER TIME ALIGNMENT
- HANDLES 250 WATTS AES & 500 WATTS PROGRAM
- DEMODULATION RING FOR THE LOW FREQUENCY TO FLATTEN RESPONSE AND LOWER DISTORTION
|
COAXIAL MODEL |
PRO8FX370ND |
|
Specifications |
|
|
Nominal Basket Diameter |
8" / 200mm |
|
Impedance (LF/HF) |
8 ohms |
|
AES Power Rating (LF) |
250 Watts |
| Program Power (LF) | 500 Watts |
| AES Power Rating (HF) | 60 Watts AES |
| Program Power (HF) | 120 Watts AES |
|
Frequency Response |
120Hz - 20kHz |
| HF Frequency Dispersion | 70º Conical |
|
Sensitivity (1W/1m) (LF) |
97dB SPL |
| Sensitivity (1W/1m) (HF) | 105dB SPL |
|
Voice Coil Diameter (LF) |
2.5" / 63.5mm |
| Voice Coil Diameter (HF) | 2.85" / 72.4mm |
| Recom. Crossover Frequency | 1.2kHz or higher @ 12dB/oct. |
| Voice Coil Length | 15 mm |
| Air Gap Height | 7 mm |
| BL Factor | 14.5 N/A |
|
Mounting Information |
|
| Overall Diameter | 8.31" / 211mm |
| Bolt Circle Diameter | 7.7" / 195mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 7.22" / 182mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.056 ft3 / 1.5 Liters |
| Overall Depth | 5.3" / 135mm |
| Net Weight | 10.8 lb. / 4.9 kg. |
| Shipping Weight | 11.5 lb. / 5.2 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Waterproof Carbon Fiber |
| Spider | Conex |
| Surround | Treated Cloth |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
High Frequency Tweeter |
|
| Diaphragm | Pure Titanium |
| Surround | Mylar |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 100 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | .3 mH |
| Mechanical Q (Qms) | 3.4 |
| Electrical Factor (Qes) | .36 |
| Total Q (Qts) | .33 |
| Comp. Equivelant Vol. (Vas) | .26 ft3 / 7.4 Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Moving Mass (Mms) | 23 Grams |
| Surface Area of Cone (Sd)m2 | 0.022m2 |
| Reference Efficiency | 2% |
| Displacement Volume (Vd) | 132 cm3 |
|
Frequency Response & Impedance Curve |
|
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
Description
- BEYMA PRO8FX370ND COAXIAL SPEAKER INCLUDES A LIGHTWEIGHT NEODYMIUM 8" CAST FRAME SPEAKER & 1.4" EXIT HIGH FREQUENCY COMPRESSION DRIVER
- FEATURES A WATERPROOF CARBON FIBER CONE & ONE NEODYMIUM MAGNET FOR BOTH LOW & HIGH FREQUENCY FOR PROPER TIME ALIGNMENT
- HANDLES 250 WATTS AES & 500 WATTS PROGRAM
- DEMODULATION RING FOR THE LOW FREQUENCY TO FLATTEN RESPONSE AND LOWER DISTORTION
|
COAXIAL MODEL |
PRO8FX370ND |
|
Specifications |
|
|
Nominal Basket Diameter |
8" / 200mm |
|
Impedance (LF/HF) |
8 ohms |
|
AES Power Rating (LF) |
250 Watts |
| Program Power (LF) | 500 Watts |
| AES Power Rating (HF) | 60 Watts AES |
| Program Power (HF) | 120 Watts AES |
|
Frequency Response |
120Hz - 20kHz |
| HF Frequency Dispersion | 70º Conical |
|
Sensitivity (1W/1m) (LF) |
97dB SPL |
| Sensitivity (1W/1m) (HF) | 105dB SPL |
|
Voice Coil Diameter (LF) |
2.5" / 63.5mm |
| Voice Coil Diameter (HF) | 2.85" / 72.4mm |
| Recom. Crossover Frequency | 1.2kHz or higher @ 12dB/oct. |
| Voice Coil Length | 15 mm |
| Air Gap Height | 7 mm |
| BL Factor | 14.5 N/A |
|
Mounting Information |
|
| Overall Diameter | 8.31" / 211mm |
| Bolt Circle Diameter | 7.7" / 195mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 7.22" / 182mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.056 ft3 / 1.5 Liters |
| Overall Depth | 5.3" / 135mm |
| Net Weight | 10.8 lb. / 4.9 kg. |
| Shipping Weight | 11.5 lb. / 5.2 kg. |
|
Materials |
|
|
Low Frequency Woofer |
|
| Basket | Die-Cast Aluminum |
| Cone | Waterproof Carbon Fiber |
| Spider | Conex |
| Surround | Treated Cloth |
| Voice Coil | Aluminum |
| Magnet | Neodymium |
|
High Frequency Tweeter |
|
| Diaphragm | Pure Titanium |
| Surround | Mylar |
| Voice Coil | Edgewound Aluminum Ribbon |
| Voice Coil Former | Kapton |
| Magnet | Neodymium |
|
Thiele-Small Parameters |
|
| Resonant Frequency (fs) | 100 Hz |
| Impedance (Re) | 5.2 ohms |
| Coil Inductance (Le) | .3 mH |
| Mechanical Q (Qms) | 3.4 |
| Electrical Factor (Qes) | .36 |
| Total Q (Qts) | .33 |
| Comp. Equivelant Vol. (Vas) | .26 ft3 / 7.4 Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Moving Mass (Mms) | 23 Grams |
| Surface Area of Cone (Sd)m2 | 0.022m2 |
| Reference Efficiency | 2% |
| Displacement Volume (Vd) | 132 cm3 |
|
Frequency Response & Impedance Curve |
|
Shipping
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
