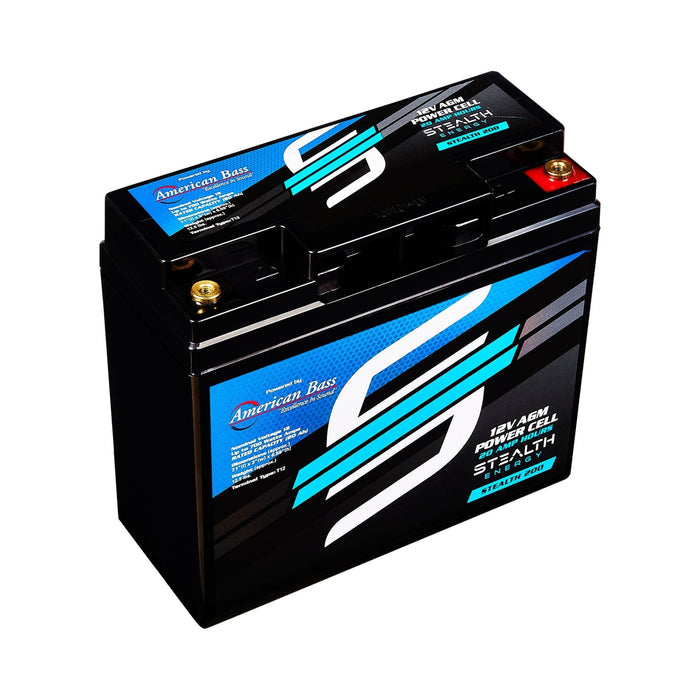

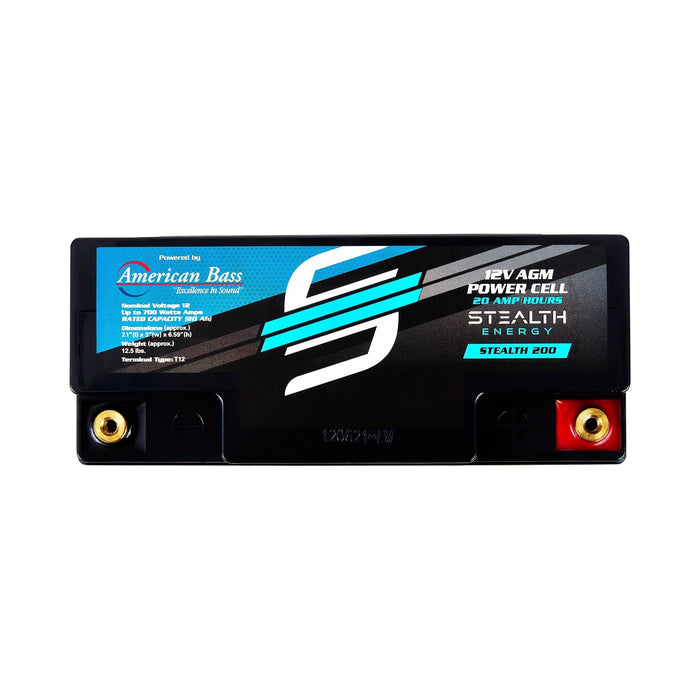

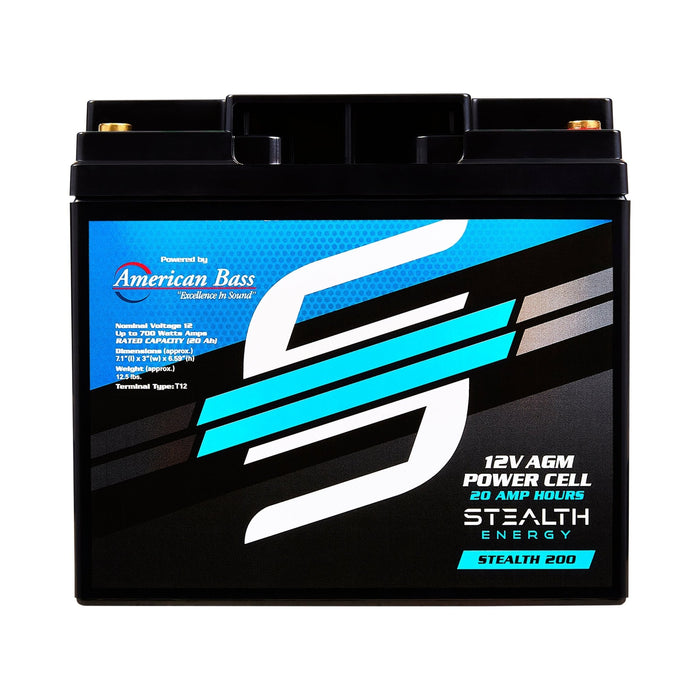

American Bass STEALTH 200 BATTERY

Your Price:
$105.95
Add to wishlist
Checkout Secure

Great reasons to buy from us:

  • Image of Quality Assurance

    Quality Assurance

    Quality Assurance
  • Image of Expert Guidance

    Expert Guidance
  • Image of Customers Over Profits

    Customers Over Profits

Up To 700 Watt Amplifiers

12V AGM Battery, 20 AH



NOMINAL VOLTAGE 12V
NOMINAL CAPACITY(20HR) 20.0AH
APPROX WEIGHT Approx 5.78 kg (12.74lbs)
TERMINAL T12
CONTAINER MATERIAL ABS
MAX. DISCHARGE CURRENT 300A (5s)
INTERNAL RESISTANCE APPROX 15mB
NOMINAL OPERATING TEMP. RANGE 25 +3 C (77+5 F )
DIMENSION
  • Length: 181.512mm (7.14 inches)
  • Width: 7712mm (3.03 inches)
  • Container Height: 167.512mm (6.59 inches)
  • Total Height (with Terminal): 167.512mm (6.59 inches)
RATED CAPACITY
  • 20.0 AH/1.00A: (20hr ,1.80V/cell,25 C/77 F)
  • 18.6 AH/1.86A: (10hr ,1.80V/cell,25 C/77 F)
  • 17.0 AH/3.40A: (5hr ,1.75V/cell,25 C/77 F)
  • 15.3 AH/5.10A: (3hr ,1.75V/cell,25 C/77 F)
  • 12.6 AH/12.6A: (1hr ,1.60V/cell,25 C/77 F)
CAPACITY AFFECTED BY TEMPERATURE
  • 40 C (104 F): 103%
  • 25 C (77 F): 100%
  • 0 C (32 F): 86%
OPERATING TEMP.RANGE
  • Discharge: -15~50 C (5~122 F)
  • Charge: 0~40 C (32~104 F)
  • Storage: -15~40 C (5~104

CYCLE USE

  • Initial Charging Current less than 6.0A.Voltage
  • 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C

 STANDBY USE

  • No limit on Initial Charging Current Voltage
  • 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C

SELF DISCHARGE

  • Batteries may be stored for up to 6 months
  • at 25 C(77 F) and then a freshening charge is required.
  • For higher temperatures the time interval will be shorter.
Shipping This item ships to
Delivery Estimated between and . Will usually ship within 1-3 businesses day.

Description

Up To 700 Watt Amplifiers

12V AGM Battery, 20 AH



NOMINAL VOLTAGE 12V
NOMINAL CAPACITY(20HR) 20.0AH
APPROX WEIGHT Approx 5.78 kg (12.74lbs)
TERMINAL T12
CONTAINER MATERIAL ABS
MAX. DISCHARGE CURRENT 300A (5s)
INTERNAL RESISTANCE APPROX 15mB
NOMINAL OPERATING TEMP. RANGE 25 +3 C (77+5 F )
DIMENSION
  • Length: 181.512mm (7.14 inches)
  • Width: 7712mm (3.03 inches)
  • Container Height: 167.512mm (6.59 inches)
  • Total Height (with Terminal): 167.512mm (6.59 inches)
RATED CAPACITY
  • 20.0 AH/1.00A: (20hr ,1.80V/cell,25 C/77 F)
  • 18.6 AH/1.86A: (10hr ,1.80V/cell,25 C/77 F)
  • 17.0 AH/3.40A: (5hr ,1.75V/cell,25 C/77 F)
  • 15.3 AH/5.10A: (3hr ,1.75V/cell,25 C/77 F)
  • 12.6 AH/12.6A: (1hr ,1.60V/cell,25 C/77 F)
CAPACITY AFFECTED BY TEMPERATURE
  • 40 C (104 F): 103%
  • 25 C (77 F): 100%
  • 0 C (32 F): 86%
OPERATING TEMP.RANGE
  • Discharge: -15~50 C (5~122 F)
  • Charge: 0~40 C (32~104 F)
  • Storage: -15~40 C (5~104

CYCLE USE

  • Initial Charging Current less than 6.0A.Voltage
  • 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C

 STANDBY USE

  • No limit on Initial Charging Current Voltage
  • 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C

SELF DISCHARGE

  • Batteries may be stored for up to 6 months
  • at 25 C(77 F) and then a freshening charge is required.
  • For higher temperatures the time interval will be shorter.
