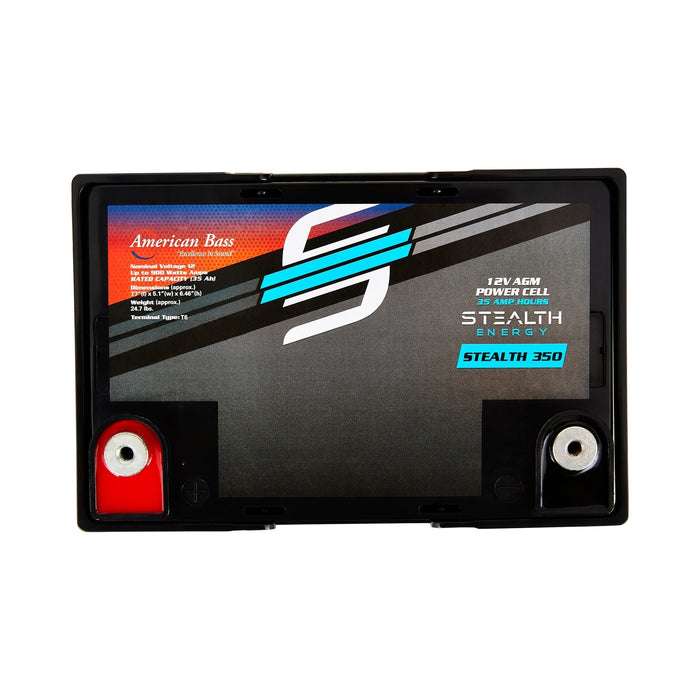

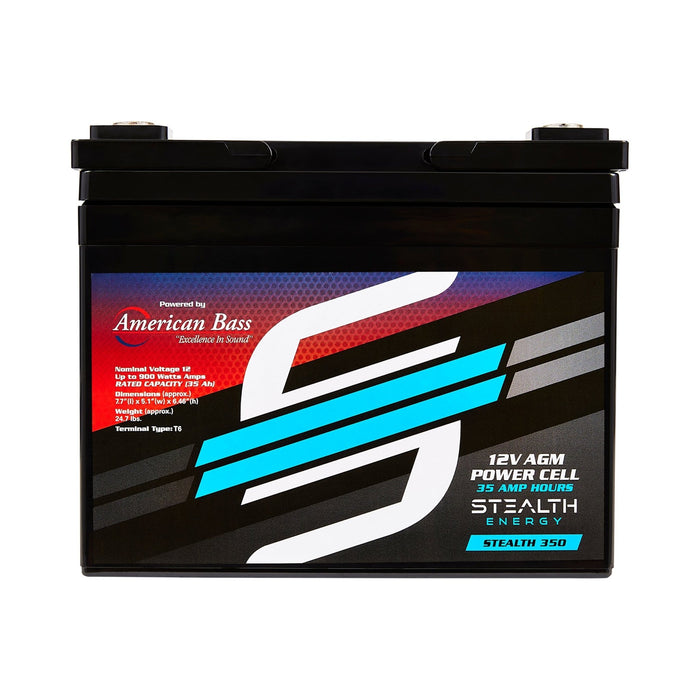

American Bass STEALTH 350 BATTERY

SKU: AB-ST-350
Your Price:
$111.36
Add to wishlist
Checkout Secure
Available to order Secure checkout, financing options, and build support from Droppin HZ.
Complete the build

Great reasons to buy from us:

  • Image of Quality Assurance

    Quality Assurance

    Quality Assurance
  • Image of Expert Guidance

    Expert Guidance
  • Image of Customers Over Profits

    Customers Over Profits

Up To 900 Watt Amplifiers

12V AGM Battery, 35 AH

NOMINAL VOLTAGE 12V
NOMINAL CAPACITY(20HR) 35.0AH
APPROX WEIGHT Approx 11.2 kg (24.7lbs
TERMINAL T6
CONTAINER MATERIAL ABS
MAX. DISCHARGE CURRENT 525A (5s)

INTERNAL RESISTANCE APPROX Approx 11mΩ

NOMINAL OPERATING TEMP. RANGE 25+3 C (77+5 F )

DIMENSION
  • Length:Ā 195+2mm (7.68 inches)
  • Width:Ā 130+2mm (5.12 inches)
  • Container Height:Ā 164+2mm (6.46 inches)
  • Total Height (with Terminal):Ā 167+2mm (6.57 inches)
RATED CAPACITY
  • 35.0 AH/1.75A:Ā (20hr ,1.80V/cell,25 C/77 F)
  • 32.6 AH/3.26A:Ā (10hr ,1.80V/cell,25 C/77 F)
  • 29.7 AH/5.95A:Ā (5hr ,1.75V/cell,25 C/77 F)
  • 26.8 AH/8.93A:Ā (3hr ,1.75V/cell,25 C/77 F)
  • 22.0 AH/22.0A:Ā (1hr ,1.60V/cell,25 C/77 F)
CAPACITY AFFECTED BY TEMPERATURE
  • 40 C (104 F): 103%
  • 25 C (77 F): 100%
  • 0 C (32 F): 86%
OPERATING TEMP.RANGE
  • Discharge:Ā -15~50 C (5~122 F)
  • Charge:Ā 0~40 C (32~104 F)
  • Storage:Ā -15~40 C (5~104 F)

CYCLE USE

  • Initial Charging Current less than 10.5A.
  • Voltage 0 0 0 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C

Ā STANDBY USE

  • No limit on Initial Charging Current Voltage
  • 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C

SELF DISCHARGE

  • Batteries may be stored for up to 6 months
  • at 25 C(77 F) and then a freshening charge is required.
  • For higher temperatures the time interval will be shorter.
Shipping Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination.

Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.

Have questions before you order? If you need help confirming fitment, power needs, or the right supporting gear for your build, contact Droppin HZ and we’ll help point you in the right direction.

Description

Up To 900 Watt Amplifiers

12V AGM Battery, 35 AH

NOMINAL VOLTAGE 12V
NOMINAL CAPACITY(20HR) 35.0AH
APPROX WEIGHT Approx 11.2 kg (24.7lbs
TERMINAL T6
CONTAINER MATERIAL ABS
MAX. DISCHARGE CURRENT 525A (5s)

INTERNAL RESISTANCE APPROX Approx 11mΩ

NOMINAL OPERATING TEMP. RANGE 25+3 C (77+5 F )

DIMENSION
  • Length:Ā 195+2mm (7.68 inches)
  • Width:Ā 130+2mm (5.12 inches)
  • Container Height:Ā 164+2mm (6.46 inches)
  • Total Height (with Terminal):Ā 167+2mm (6.57 inches)
RATED CAPACITY
  • 35.0 AH/1.75A:Ā (20hr ,1.80V/cell,25 C/77 F)
  • 32.6 AH/3.26A:Ā (10hr ,1.80V/cell,25 C/77 F)
  • 29.7 AH/5.95A:Ā (5hr ,1.75V/cell,25 C/77 F)
  • 26.8 AH/8.93A:Ā (3hr ,1.75V/cell,25 C/77 F)
  • 22.0 AH/22.0A:Ā (1hr ,1.60V/cell,25 C/77 F)
CAPACITY AFFECTED BY TEMPERATURE
  • 40 C (104 F): 103%
  • 25 C (77 F): 100%
  • 0 C (32 F): 86%
OPERATING TEMP.RANGE
  • Discharge:Ā -15~50 C (5~122 F)
  • Charge:Ā 0~40 C (32~104 F)
  • Storage:Ā -15~40 C (5~104 F)

CYCLE USE

  • Initial Charging Current less than 10.5A.
  • Voltage 0 0 0 14.4V~15.0V at 25 C(77 F)Temp. Coefficient -30mV/ C

Ā STANDBY USE

  • No limit on Initial Charging Current Voltage
  • 13.5V~13.8V at 25 C(77 F)Temp. Coefficient -20mV/ C

SELF DISCHARGE

  • Batteries may be stored for up to 6 months
  • at 25 C(77 F) and then a freshening charge is required.
  • For higher temperatures the time interval will be shorter.
