high-power multi-channel amplifier with accubassŽ
Â

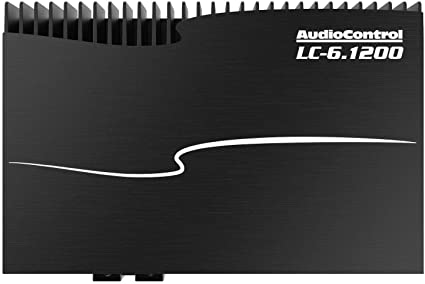

Building from the hugely successful LC-4.800 multi-channel amplifier, the LC-6.1200 is surely the most flexible 6 channel amplifier on the market. Featuring eight active speaker level inputs with summing, coupled with an intuitive three-way Linkwitz-Riley crossover network, the LC-6.1200 can be easily integrated with most factory installed source units. The patented AccuBASSŽ circuit compensates for factory bass roll-off and provides maximum bass performance.
More control and features include our GTO Signal Sense, MILC Source Clip Detection and assignable Remote Level Control. The LC-6.1200 builds on the legacy of audio passion and a focus on user-friendly features, making this a perfect solution based amplifier.
features
- Configurable as 6/5/4/3/2 channel amplifier
- 6 x 200 watts @ 2 ohms
- 6 x 125 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASSÂŽ Processing
- MILCTMÂ Maximum Input Level Control (Patent Pending)
- GTOTMÂ Signal Sense
- 3-way Independent Linkwitz-Riley Alignment crossovers
- Summable active speaker-level inputs (8 channels) for OEM integration
- 6Â preamp inputs
- 2 assignable preamp outputs
- PFM Subsonic Filter
- Optional ACR-1 assignable remote control
- Solid One-Piece Aluminum Chassis
specifications
inputs
- Preamp Inputs: 6 balanced
- Preamp Input Voltage Range: 250 mV â 8 V RMS
- Speaker Level Inputs: 8
outputs
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ί â 125 W x 6 RMS
- 2 Ί â 200 W x 6 RMS
- Bridged 4 Ί â 400 W RMS
- Preamp Outputs: 2
- Maximum Preamp Output: 8.5 V RMS
performance
- Frequency Response: 10 Hz â 30 kHz
- Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
- THD+N: < 0.1%
- Minimum Power / Ground Wire Gauge: 3 AWG wire
- Fuse Rating: 3 x 40 A
- Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz â 5000 Hz
weights & dimensions
- Dimensions: 12âłW x 8.0âłD x 2.1âłH
- Weight: 7.2lbs. (3.3kg)
in the box: LC-6.1200, Speaker Connectors, Fuses, Manual, Warranty
| Shipping | Most items ship within 1â3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
Description
high-power multi-channel amplifier with accubassŽ
Â
Building from the hugely successful LC-4.800 multi-channel amplifier, the LC-6.1200 is surely the most flexible 6 channel amplifier on the market. Featuring eight active speaker level inputs with summing, coupled with an intuitive three-way Linkwitz-Riley crossover network, the LC-6.1200 can be easily integrated with most factory installed source units. The patented AccuBASSŽ circuit compensates for factory bass roll-off and provides maximum bass performance.
More control and features include our GTO Signal Sense, MILC Source Clip Detection and assignable Remote Level Control. The LC-6.1200 builds on the legacy of audio passion and a focus on user-friendly features, making this a perfect solution based amplifier.
features
- Configurable as 6/5/4/3/2 channel amplifier
- 6 x 200 watts @ 2 ohms
- 6 x 125 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASSÂŽ Processing
- MILCTMÂ Maximum Input Level Control (Patent Pending)
- GTOTMÂ Signal Sense
- 3-way Independent Linkwitz-Riley Alignment crossovers
- Summable active speaker-level inputs (8 channels) for OEM integration
- 6Â preamp inputs
- 2 assignable preamp outputs
- PFM Subsonic Filter
- Optional ACR-1 assignable remote control
- Solid One-Piece Aluminum Chassis
specifications
inputs
- Preamp Inputs: 6 balanced
- Preamp Input Voltage Range: 250 mV â 8 V RMS
- Speaker Level Inputs: 8
outputs
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ί â 125 W x 6 RMS
- 2 Ί â 200 W x 6 RMS
- Bridged 4 Ί â 400 W RMS
- Preamp Outputs: 2
- Maximum Preamp Output: 8.5 V RMS
performance
- Frequency Response: 10 Hz â 30 kHz
- Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
- THD+N: < 0.1%
- Minimum Power / Ground Wire Gauge: 3 AWG wire
- Fuse Rating: 3 x 40 A
- Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz â 5000 Hz
weights & dimensions
- Dimensions: 12âłW x 8.0âłD x 2.1âłH
- Weight: 7.2lbs. (3.3kg)
in the box: LC-6.1200, Speaker Connectors, Fuses, Manual, Warranty
Shipping
| Shipping | Most items ship within 1â3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
