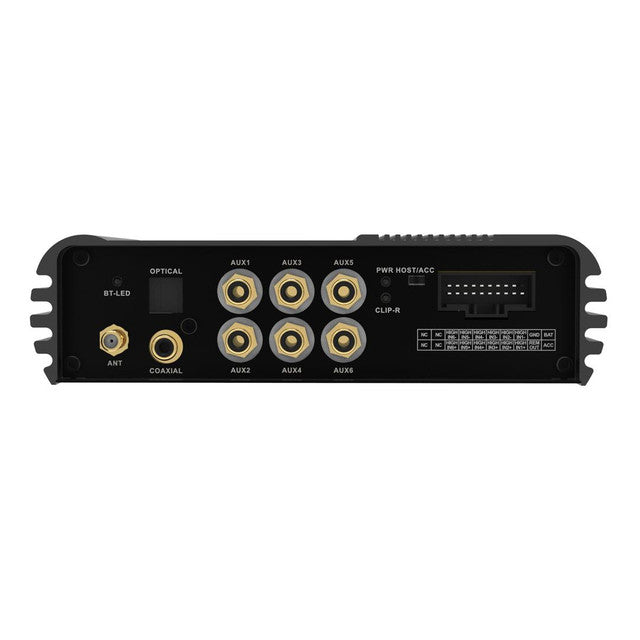

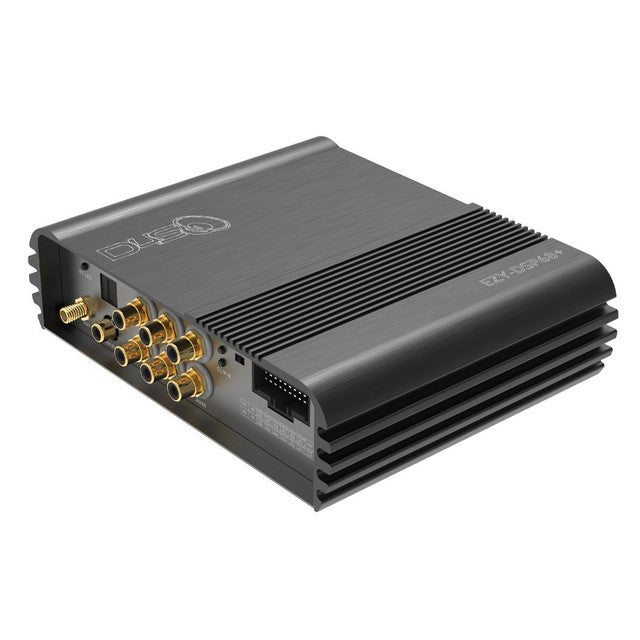

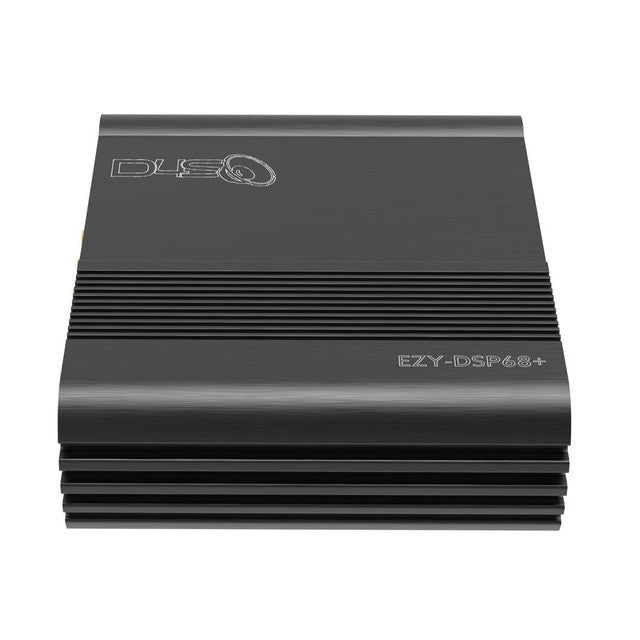

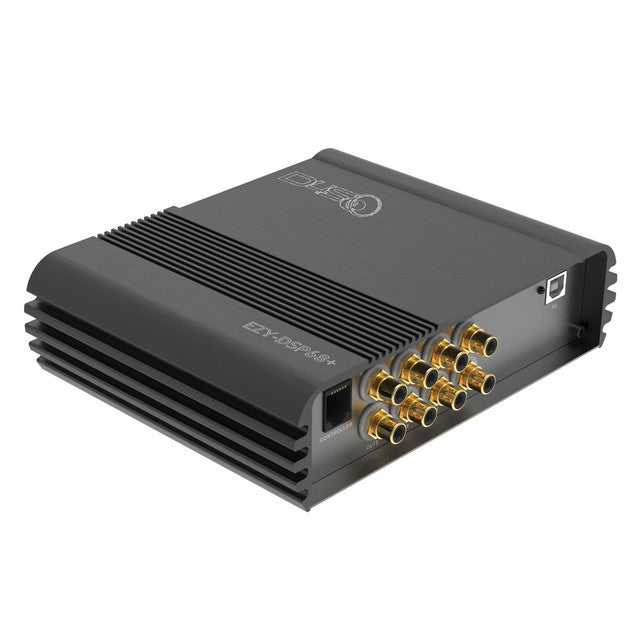

The EZY DSP68+ is your ultimate car audio solution, offering the Down4Sound difference with unmatched flexibility and performance. Whether you're upgrading a factory system or creating a custom setup, the EZY DSP68+ has you covered. With both high-level and low-level input capabilities, it adapts to your needs, making every feature standard and ensuring you get the best audio experience. Want to keep it simple? Use your phone as the source with its built-in Bluetooth 5.0 for TRUE HD audio streaming—no head unit required.
Unmatched Flexibility, Standard in Every Unit
High-Level Inputs:
- Perfect for factory systems where replacing the radio isn’t an option.
- Converts high-level signals into clean, professional-quality digital audio.
- Retain all OEM features while upgrading your sound to the next level.
Low-Level RCA Inputs:
- Designed for custom setups with aftermarket radios.
- Direct, pure signal path for audiophiles who demand crystal-clear audio.
- Provides high signal quality to maximize system performance.
Bluetooth Streaming:
- Use your smartphone as the source unit with built-in Bluetooth 5.0.
- Stream music in TRUE HD AUDIO directly to the DSP.
- No head unit? No problem—your phone becomes the control center of your system.
Key Features
Every feature is standard, designed to give you the best possible experience:
Inputs:
- 6 RCA inputs (high-level or low-level) for seamless integration into any system.
- Includes a harness for quick and easy installation.
Outputs:
- 8 RCA outputs with 4.2Vrms for clean, powerful sound distribution to your amplifiers.
Bluetooth Streaming:
- Built-in Bluetooth 5.0 for TRUE HD wireless audio streaming.
Connectivity Options:
- Optical and coaxial inputs for flexible connection to modern audio sources.
Advanced Audio Processing:
- 31-band EQ for precision frequency, Q-value, and gain control.
- High/low-pass filters with adjustable slopes for detailed tuning.
- Phase adjustment (0° to 360°) to align your sound perfectly.
- Delay control up to 20ms (273 inches) for accurate speaker timing.
Custom Presets:
- Save and recall up to 6 audio profiles for quick customization.
Noise Control:
- Features a noise gate, limiter, and minimum source attenuation for clean, undistorted sound.
Specifications
| Specification | Value |
|---|---|
| Dynamic Range | ≥100dB |
| Signal-to-Noise Ratio | ≥102dB |
| Total Harmonic Distortion | ≤0.05% |
| Frequency Response | 20Hz ~ 20kHz |
| Sampling Rate | 48kHz/24Bit |
| RCA Input Voltage (RMS) | 2.8Vrms |
| RCA Output Voltage (RMS) | 4.2Vrms |
| RCA Input Impedance | 10kΩ |
| RCA Output Impedance | 51Ω |
| Max Input/Output Signal | 12Vpp |
| Working Voltage | DC 9V ~ 16V |
| Operating Temperature | -30°C to 70°C (-22°F to 158°F) |
| Dimensions | 5 in x 3 in x 3 in |
| Weight | 2 lbs |
Why Choose the EZY DSP68+?
- Flexible Integration: High-level and low-level inputs make it compatible with factory and aftermarket systems alike.
- Crystal-Clear Audio: Dynamic range of ≥100dB and ultra-low distortion (≤0.05%) ensure every detail of your music is heard.
- Wireless Streaming Excellence: Use your phone as the source with Bluetooth 5.0, delivering TRUE HD sound directly to your system.
- Custom Control: Advanced tuning features like the 31-band EQ, phase alignment, and delay adjustment let you dial in the perfect sound.
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
