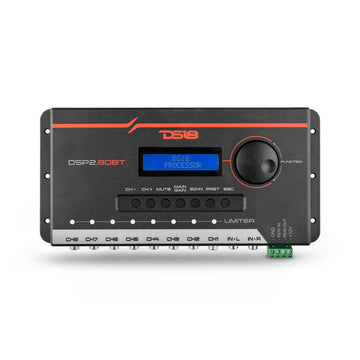

DS18 DSP2.8DBT 2-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth and LCD Screen

  • $199.95
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

DS18 DSP2.8DBT 2-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth and LCD Screen

At DS18, our team of engineers is always working to give users unrestrained control over the unmatched power our products deliver. The DSP2.8BT, our newest digital sound processor, gives users access to every bit of power in your vehicle’s audio system, allowing you to gain the control needed to handle and achieve the quality of sound you desire.

Creating a flawless audio system has never been easier. The DSP2.8DBT gives users access to a list of filtrations settings directly from our BT Interface. This interface also gives users option to save presets for certain songs or genres allowing for the perfect listening experience one hundred percent of the time.

The DSP2.8DBT gives you access to a great number of tuning options that can be adjusted using the DSP2.8DBT Application on the App Store or Google Play.

Highlights

  • Bluetooth connectivity to allow for easy and accessible audio tuning
  • Easy to use software found on Google Play or the App Store to fine tune and monitor every aspect of your signal processing.
  • 2 Channel RCA and/or HI-level speaker inputs
  • 8 Channel RCA outputs
  • Parametric equalizer with 3 independent band per channel
  • Crossover with filters: Butterworth, Linkwitz-Riley and Bessel.



Great for:

  • Car Audio
  • Pro Audio
  • Motor Cycles
  • Home Studio
  • Stunt Walls
  • DIY Projects

INPUTS
Type  Unbalanced
Connection  RCA
Max level  Up to 6 Volts RMS
Impedance  47kΩ
OUTPUTS (1,2,3,4,5,6,7,8):
Type  Unbalanced
Connection  RCA
Max Level  2 Volts RMS
Impedance  470kΩ
TECHNICAL INFORMATION
Resolution  24 Bits
Sample Frequency  48KHz
Latency Frequency  1.08ms
Range Frequency  15Hz a 22KHz (-1db)
THD+N max  0,01%
Signal Noise Ratio  100dB
POWER SUPPLY
Voltage  10~15Vdc
Consumption  300mA (5w)
Fuse  2A
Dimensions (H x L x D)  4.72” x 9.84” x 1.18” / 120 x 250 x 30mm
Weight  382g / 13.4 Oz
