DS18 SB10A 10" Amplified Powered Car Subwoofer Shallow Enclosure 700 Watts

  • $274.95
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

Subwoofers are a must have for any audio system. Some audio enthusiasts dont have alot of room for big subs, for example, in single cab trucks. Now we have a option for people craving great bass but dont have much space for it.

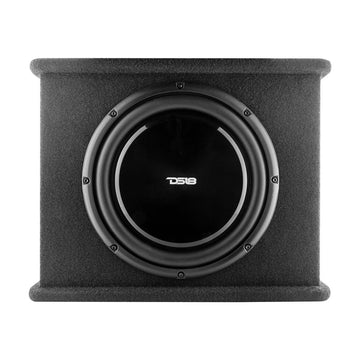

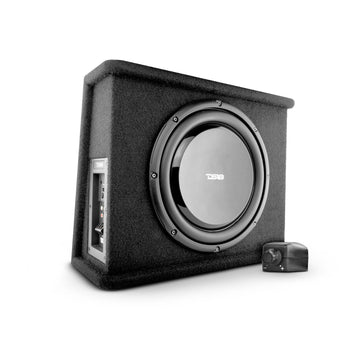

The SB10-A is a slim 10 inch subwoofer in a sealed box that is powered by a powerful, built in 350w RMS amplifier that is sure to get the bass thumping hard in the minimal space that you have available available in your vehicle.

Highlights

  • Strong slim 10 inch sub that is sure to bring pounding bass where there is not much space.
  • Compact sealed box made of .6 inch MDF with included built in 350w RMS 700w Max high power amplifier.
  • Easy to hook up and integrate with any system with the use of high level inputs or RCA jacks, whichever is easiest for you!

BOX SPECIFICATIONS
Internal Volume 12L / 0.42ft3
Load Configuration Parallel In
Box Type Sealed Box
Box Material 0.59" MDF
Finish Material Non-Woven fabric
(-3bB) Dropping Point 48Hz
MEASUREMENTS / MEDIDAS
Height 13.6" / 345.4mm
Width 16.7" / 424mm
Depth 1 4.82" / 122.6mm
Depth 2 7.9" / 201mm
SPECIFICATIONS
Speaker Size 10" / 261mm
Total Impedance 2 ohms
RMS Power Handling 350W
MAX Power Handling 700W
Sensitivity (1w/1m) 83dB
Frequency Response 38Hz-250Hz
MOTOR / MOTOR
Voice Coil Diameter 1.5" / 38.6mm
Voice Coil Former Material Aluminum
Winding Material EISV
Cone Material IPP
Surround Material Rubber
Basket Material SPCC
Magnet Material Ferrite
Magnet Weight 40 Oz

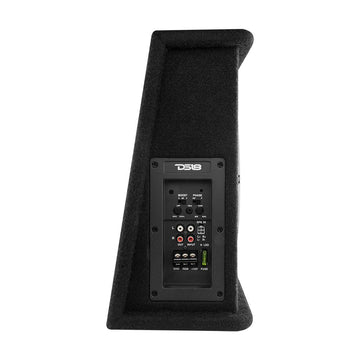

AMPLIFIER
Amplifier Class Digital
Amplifier Type Monoblock Subwoofer
Number of Channels 1 CH
Minimum Impedance 2 ohms
Signal to Noise Ratio 75 dB
Efficiency @ 4 ohms 75%
Total Harmonic Distortion (T.H.D) 0.30%
Low Level Input Range 0.1-0.6 V
High Level Input Range Yes
Selectable X-Over RMS a 2 OHMS LPF Fixed
X-Over Filter Range 50 - 200 Hz
Bass Boost Range 0-6 dB
Bass Boost Frequency 50 Hz
Phase Selector 0-180°
Led Indicator Power - Protection
Power Input Terminal Size 8 GA
Fuse Size 30 A

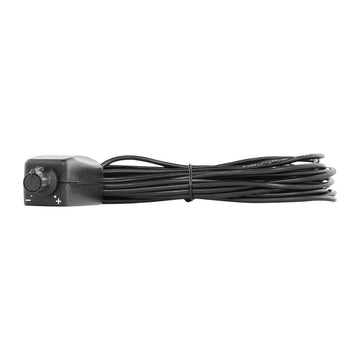

Remote Level Control Yes
Thermal Protection Yes (75°C / 167°F)
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes / Si (<8v,>16v)
