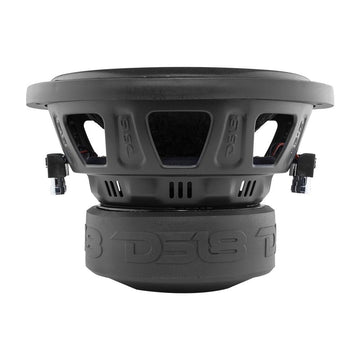

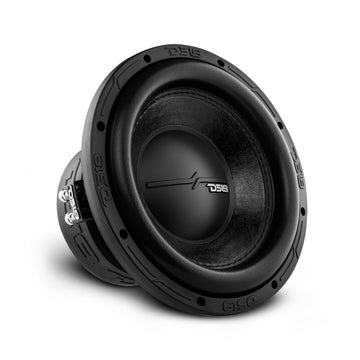

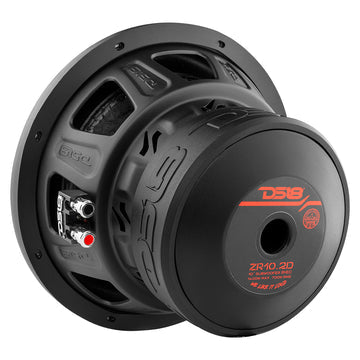

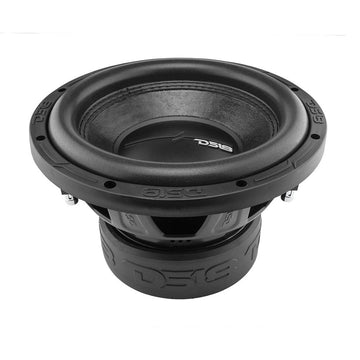

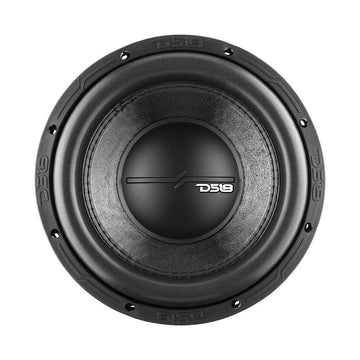

DS18 ZR10.2D 10" Car Subwoofer with 1400 Watts 2-Ohm DVC

  • $149.95
    Unit price per

Shipping calculated at checkout.

Apply For Financing


The ZR subline is an amazing entry level subwoofer that both handles great power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.

This 10 inch model comes in both dual 2 and dual 4 ohms configurations giving you many options to perfectly match your amplifiers optimal impedance. This model comes with a 2.5 inch aluminum voice coil that handles 700w RMS and 1400w Max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout and outside the vehicle.


  • Large foam surround giving great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
  • Great power handling of 700w RMS and 1400w Max through a high strength 2.5 inch aluminum voice coil.
  • Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, DS18 dust cap, and high quality push terminal connectors.
  • Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes making them highly versatile.

Nominal Diameter 10"
Nominal Impedance 2 + 2 Ohms
RMS Power Handling 700W
MAX Power Handling 1400W
Sensitivity (1w/1m) 81 dB
Frequency Response 27Hz - 200 Hz
Recommended Lo Pass Crossover 100 Hz
Voice Coil Diameter 2.5" / 61.6mm
VC Former Material Aluminum
Winding Material Copper
Cone Material Non Pressed Paper
Dust Cap Material PPI
Surround Material Foam
Basket Material Steel
Basket Color/Finish Matte Black
Magnet Material Ferrite
Magnet Weight 100 oz
Displacement Volume 0.05 ft3
Equivalent Volume 8.26 L
Excursion (one way) 25mm
Free Air Resonance 34Hz
Mechanical Factor 4.3
Electrical Factor 0.8
Total Factor 0.67
Moving Mass 252g
Compliance 53.37µ m/N
BL Factor 8.78
Voice Coil Inductance 546.4m mH
Cone Area 333.29 Cm2
DC Resistance 1.8 + 1.8 ohm
Efficiency Bandwidth Product 42.5
Overall Diameter 10.31” / 262mm
Overall Depth 6.92" / 176mm
Front Mount Baffle Cutout 9" / 229mm
Mounting Depth 6" / 152.3mm
Motor Diameter 6.1" / 155mm
