DS18 ZXI10.2D High Excursion 10" Car Subwoofer 1600 Watts DVC 2-Ohms, Quad Stacked Magnets Ask a question | Write a review

  • $288.95
    Unit price per

Shipping calculated at checkout.

Apply For Financing



DS18  ZXI10.2D 10” High Excursion Car Subwoofer – 1600 DVC 2-Ohms, Quad Stacked Magnets

More Power, More Bass!

Designed to provide thumping power that shakes everyone’s mirrors, the ZXI10.2D is a newly designed subwoofer that could only be defined as a monster of a machine. It packs a 2.5-inch voice coil that’s made to withstand high amounts of power with unparalleled efficiency, while producing thunderous bass that’s free from distortion. Don’t get it twisted, this sub is versatile enough to play higher frequencies under 900Hz down to 20Hz with incredible clarity and accuracy!

Order the DS18 ZXI10.2D today to turn up the bass with thunderous power!

Powerful Bass!

The majority of subs that produce this much bass usually have enormous power requirements to get to maximum XMAX and deliver crazy loud bass. The ZXI10.2D sets itself apart since it has an extremely efficient coil that handles large power with a higher dB rating than most subs at 86 dB. This sub is also conservatively rated at 800W RMS Power Handling and 1600W MAX Power Handling, making it capable of handling anything you throw at it!


  • Long ferrite motor structure allows for maximum excursion and former clearance with quad stacked magnets.
  • High Excursion Surround to help produce maximum a 28.5mm (one-way) XMAX without damage to the cone and surround.
  • Conservatively rated at 800W RMS Power Handling and 1600W MAX Power Handling so you can get the high-powered thunderous bass you crave.
  • 2.5-inch voice coil to absorb and produce the highest heat to power ratio all while pumping out thumping head turning bass.
  • Low FS of 29Hz so the sub can play ultra-low frequencies all while still retaining the versatility of a traditional subwoofer.
  • Ultra-low frequency response of 20Hz-900Hz to ensure great lows and you will be able to have hard hitting bass that plays with authority.

Great for:

  • Car Audio
  • Pro Audio
  • Home Studio
  • Hi-Fi Installation
  • Surround Sound
  • DIY Projects

    Nominal Diameter  10" / 254mm
    Nominal Impedance  2 + 2 ohms
    RMS Power Handling  800w
    MAX Power Handling  1600w
    Sensitivity (1w/1m)  86dB
    Frequency Response 20Hz-900Hz
    Recommended Lo Pass Crossover 90Hz
    Voice Coil Diameter 2.5" / 63.5mm
    Voice Coil Former Material  Black Aluminum
    Winding Material  CCAW
    Cone Material Non-Pressed Paper
    Dust Cap Material PPI
    Surround Material Foam
    Basket Material  Aluminum
    Basket Color/Finish Sandblasted Black
    Magnet Material Ferrite
    Magnet Weight 196 Oz (4 x 49 oz)
    Displacement Volume 2.23L / 0.078ft3

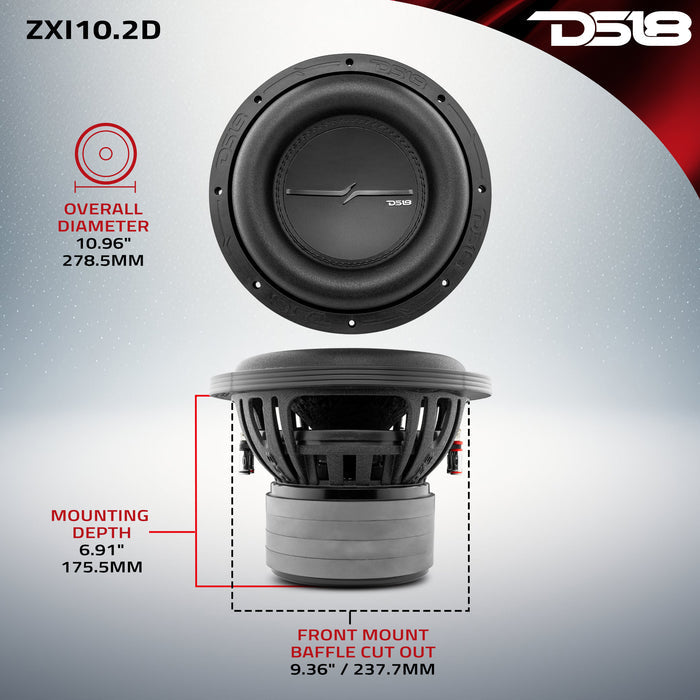

    Overall Diameter 10.96" / 278.5mm
    Overall Depth 8.34" / 212mm
    Front Mount Baffle Cutout 9.36" / 237.7mm
    Mounting Depth 6.91" / 175.5mm
    Motor Diameter 6.69" / 170mm
