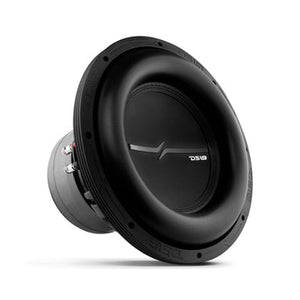

DS18 ZXI12.2D 12" High Excursion Car Subwoofer 2000W Watts Dvc 2-Ohm 4 Magnets

  • $314.95
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

Do you want more excursion, more thumping power, and to shake everyone's mirrors around you? DS18 has the perfect subwoofer to satisfy all your bass head needs in the newly designed for ZXI12.2D high excursion subwoofer. This monster sub packs a 3 inch coil made to withstand high amounts of power with the utmost efficiency while producing thunderous distortion free bass. This sub has a low FS so it can be used in large boxes with lower than normal tuning. Not only will this subwoofer slay the lows, it is versatile enough to also play higher frequencies in the bass zone of sub frequencies.

Most subs that produce this much bass have very deep mounting depths which limit the applications in which they can be used. The ZXI12.2D has a mounting depth of only 7.5 inches so It can be used in most instances where you need a lot of bass but you don't have to worry about the setup taking up all the real estate in your vehicle. The ZXI12.2D has been conservatively rated at 1000w RMS and 2000w Peak power so this makes it the sub that can handle any task put to fruition.

Highlights

  • Long ferrite motor structure that will allow for maximum excursion and former clearance.
  • High Excursion Surround to help produce maximum XMAX without damage to the cone and surround.
  • Conservable rated at 1000w RMS and 2000w Peak power so you can get the high powered thunderous bass you crave.
  • 3 inch voice coil to absorb and produce the highest heat to power ratio all while pumping out thumping head turning bass.
  • Low FS of 31.5 Hz so the sub can play ultra low frequencies all while still retaining the versatility of a traditional subwoofer.

Download ZXI12.2D Product Manual

SPECIFICATIONS
Nominal Diameter 12" / 304.8 mm
Nominal Impedance 2 + 2 Ohms
RMS Power Handling 1000 W
MAX Power Handling 2000 W
Sensitivity (1w/1m) 89.2 dB
Frequency Response 15Hz - 1.7KHz
Recommended Lo Pass Crossover 90 Hz
MOTOR
Voice Coil Diameter 3” / 76.5 mm
Voice Coil Former Material Black Aluminum
Winding Material CCAW
Cone Material Non Pressed Paper
Dust Cap Material PPI
Surround Material Foam
Basket Material Aluminum
Basket Color | Finish Black Sandblasted
Magnet Material Ferrite
Magnet Weight 224 Oz (4 x 56 Oz)
Displacement Volume 0.14 ft3 / 3.99 L
THIELE & SMALL PARAMETERS
Equivalent Volume 15.23 L / 0.53 ft3
Excursion (one way) 32 mm
Free Air Resonance 30.8 Hz
Mechanical Factor 5.268
Electrical Factor 0.576
Total Factor 0.528
Moving Mass 242.643 g
Compliance 0.075mm/N
Bl Factor 15.55
Voice Coil Inductance 12.6 mH
Diaphragm Area 530.93 cm2
DC Resistance 2+2 ohms
Efficiency Bandwidth Product 53.4
RECOMMENDED ENCLOSURES
Sealed Internal Volume 21.2L / 1.4ft3
Ported Box Output Response 42 Hz
Ported Internal Volume 39.6L / 1.4ft3
Port Size *Square (WxHxLong) 1.23"x12.28"x24.35"
Port Tunning Frequency 32 Hz
Ported Box Output Response 26 Hz

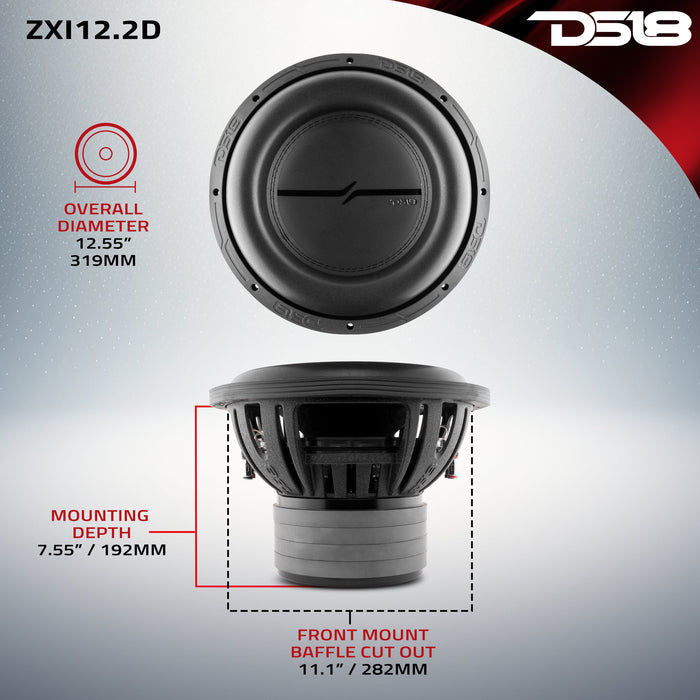

MEASUREMENT
Overall Diameter 12.55” / 319 mm
Overall Depth 9.13” / 232 mm
Front Mount Baffle Cutout 11.1” / 282 mm
Mounting Depth 7.55” / 192 mm
Motor Diameter 7.08" / 180 mm
