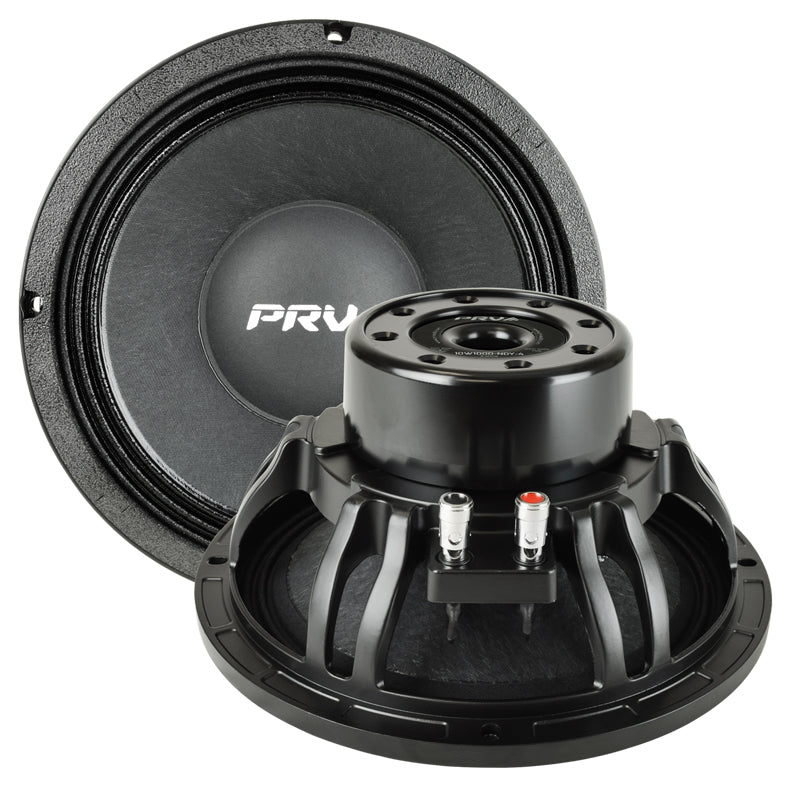

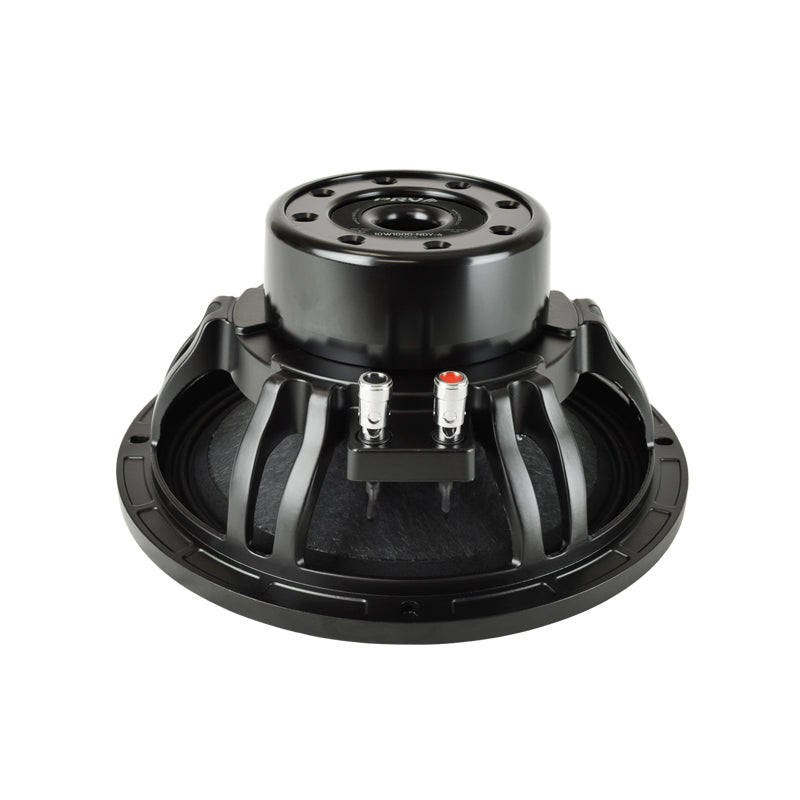

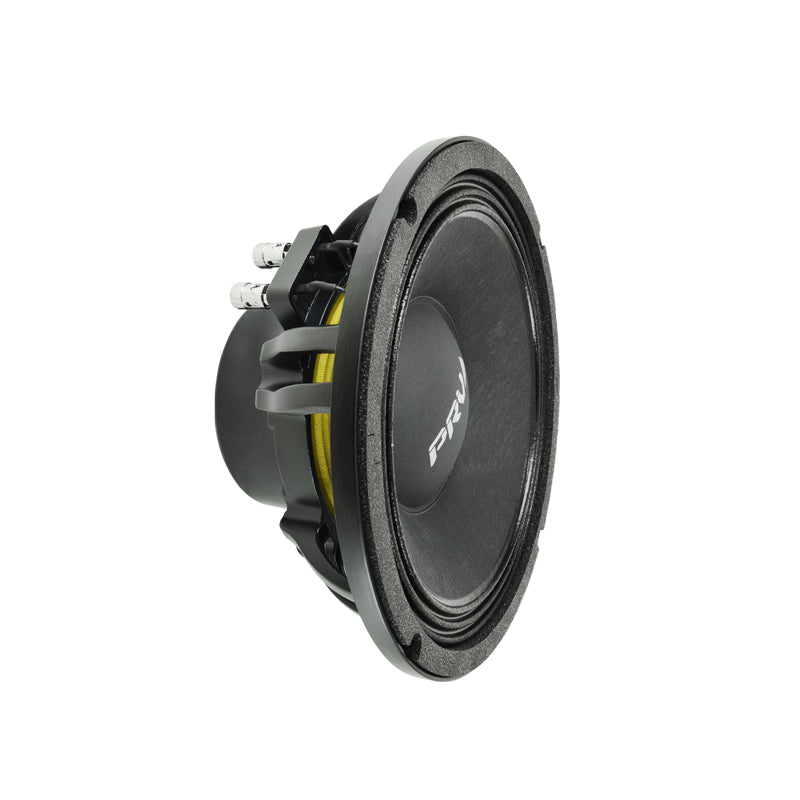

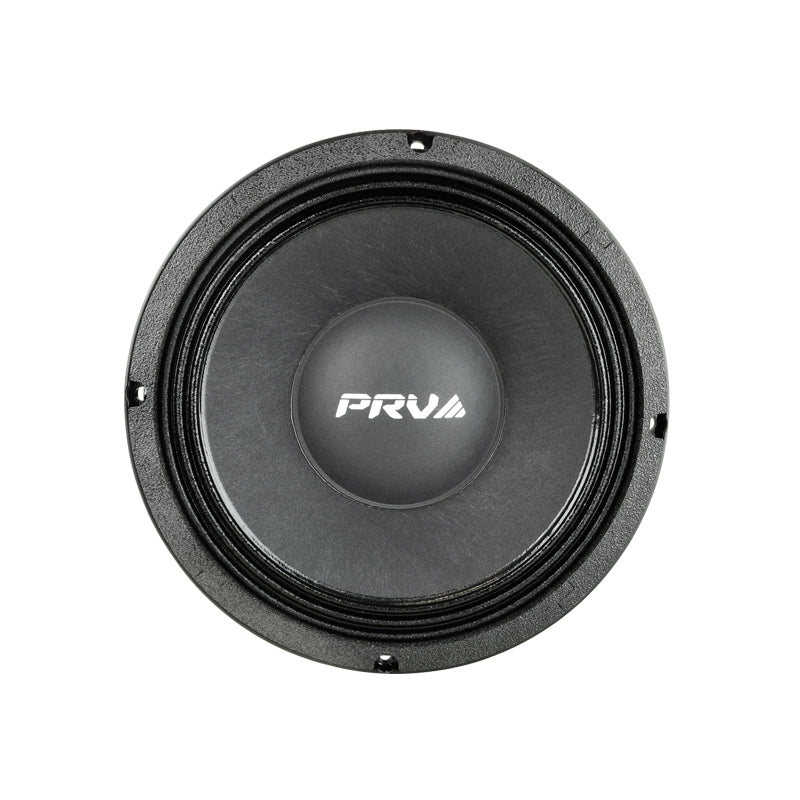

PRV Audio 10W1000-NDY-4 10" WOOFER LOUDSPEAKER
- Product Overview
PRV Audio’s 10W1000-NDY-4 Neodymium woofer loudspeakers were carefully crafted to reproduce a natural, smooth sound, while remaining dynamic. The PRV Audio 10W1000-NDY-4 is the evolution of our mid bass loudspeakers, our R&D department pushed the output limits on a mid bass driver, creating this unique sound reproduction.
- 3″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 4 ohms
- 500 watts continuous program power rating makes high acoustical output
- 36 mm peak-to-peak excursion before damage
- 97 dB sensitivity, which makes it capable of generating a lot of output!
- Detailed vocal reproduction on a wide frequency band response
To get superior fidelity, the special composite cone is built with non-pressed paper for reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker.
The 10W1000-NDY-4 is an extremely efficient 10″ woofer from PRV Audio. To stand up to the use and abuse of the professional sound environment we designed a 3″ CCAW voice coil that is wound inside-outside on a fiberglass former and features a generous 18 mm winding length for extended Xmax and less distortion. (with a suggested 80 Hz, 12 dB/octave high pass filter in place)!
Its powerful optimized neodymium motor is vented to provide excellent cooling.
The large 3″ voice coil allows for the high 1,000-watt power handling, and warrants the outstanding cooling system implemented into the motor.
High sensitivity rating of 97 dB 1W/1M which makes it capable of generating a lot of output!
|Nominal Diameter||10″ (254 mm)|
|Nominal impedance||4 Ohms|
|Rated AES Power Handling (RMS)||500 Watts|
|Program Power||1000 Watts|
|Sensitivity 2.83V at 1m||97 dB|
Recommended Hi Pass Crossover**
**For Full Power Handling
**12db Per Octave Crossover
|Frequency Response at -10dB||50 – 5,000 Hz|
|Voice Coil Diameter||3″ (76 mm)|
|Voice Coil Wire||CCAW|
|Voice Coil Winding Depth||18.0 mm|
|Former Material||Fiber Glass|
|Magnetic Gap Depth||10.0 mm|
|Frame Material||Die Cast Aluminum|
|Equivalent Volume||Vas||46.36 l|
|Excursion (mathematical)***||Xmax||6.5 mm|
|Free Air Resonance||Fs||50.19 Hz|
|Cone Area||Sd||380 cm²|
|Mechanical Mass||Mms||43.36 g|
|Bl Factor||Bl||12.03 Tm|
|Dc Resistance||Re||3.0 Ohms|
|Inductance||Le||0.47 mH at 1 kHz|
|Mechanical Mass Without Air||Mmd||39.17 g|
|Mechanical Compliance||Cms||0.232 mm/N|
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
|Overall Diameter||10.27” (261 mm)|
|Front Mount Baffle Cutout||8.78” ( 223 mm)|
|Mounting Depth||4.49” (114 mm)|
|Overall Depth||5.00” (127 mm)|
|Net Weight||8.38 Lbs (3.8 kg)|
|Shipping Weight||9.70 Lbs (4.4 kg)|
|Carton Dimensions W x L x H||11.2” x 11.2” x 5.71”
(285 x 285 x 145 mm)
