Features

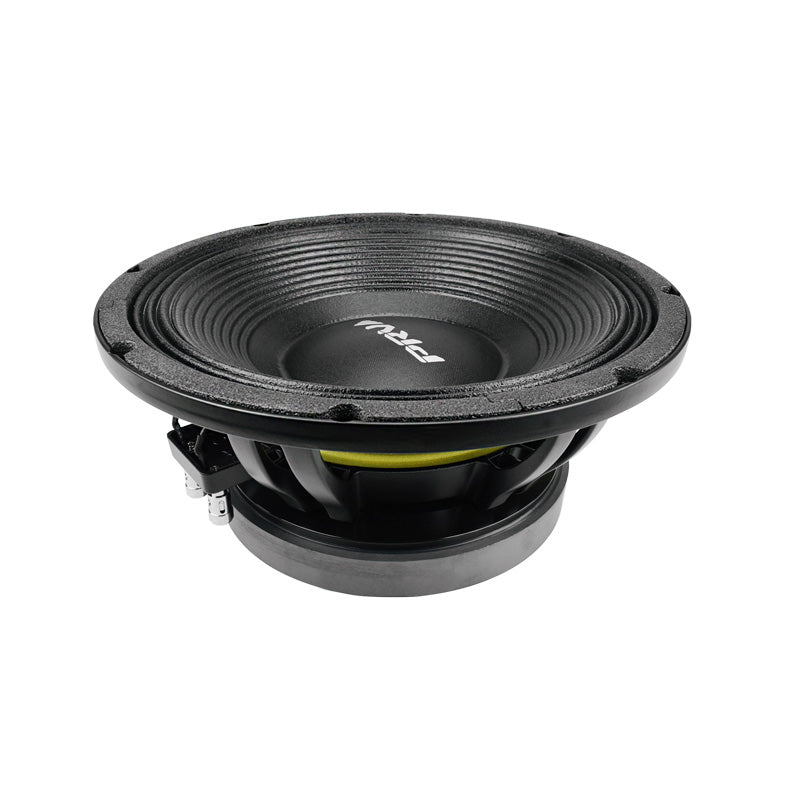

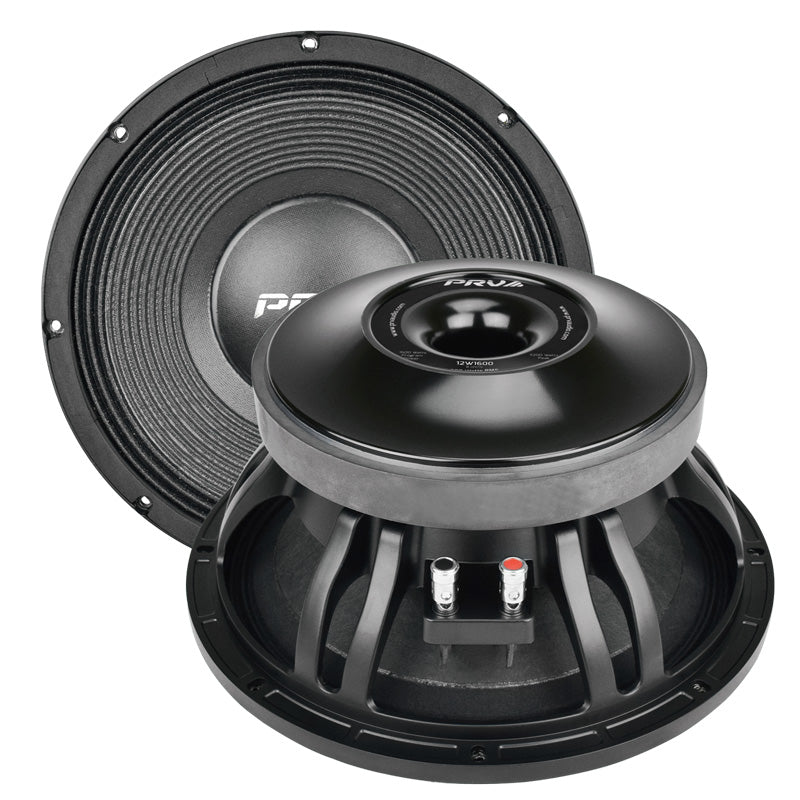

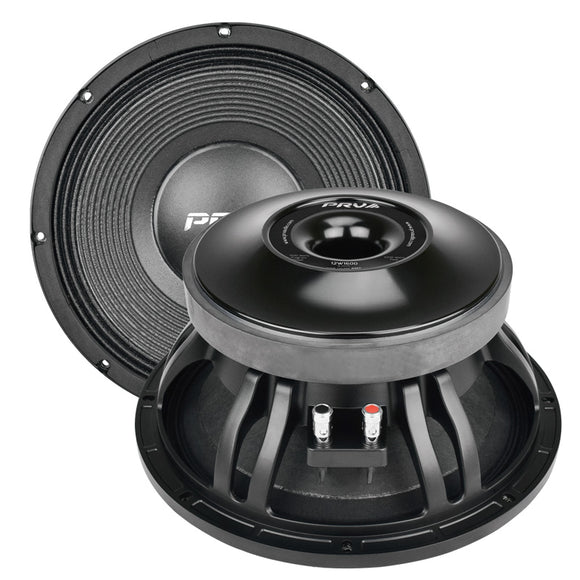

The 12W1600 woofer features a special 4″ split copper wire voice coil wound on a fiberglass former using proprietary high temperature adhesives. It features an optimized ceramic ferrite magnet assembly that will guarantee very good Low dynamic range with a very low distortion figure. This professional low frequency driver is especially recommended for compact vented enclosures, in which it will deliver solid, deep bass output.
Highlights
- 4″ split copper voice coil wound on fiberglass former for hi-temp performance, 8 ohms
- Ventilated voice coil gap reduces power compression
- 10.5 mm Xmax, 36 mm peak-to-peak excursion before damage
- 800 watts continuous program power rating makes high acoustical output
- High BL factor and Xmax for outstanding Low output
- Weather-resistant paper cone and dust cap

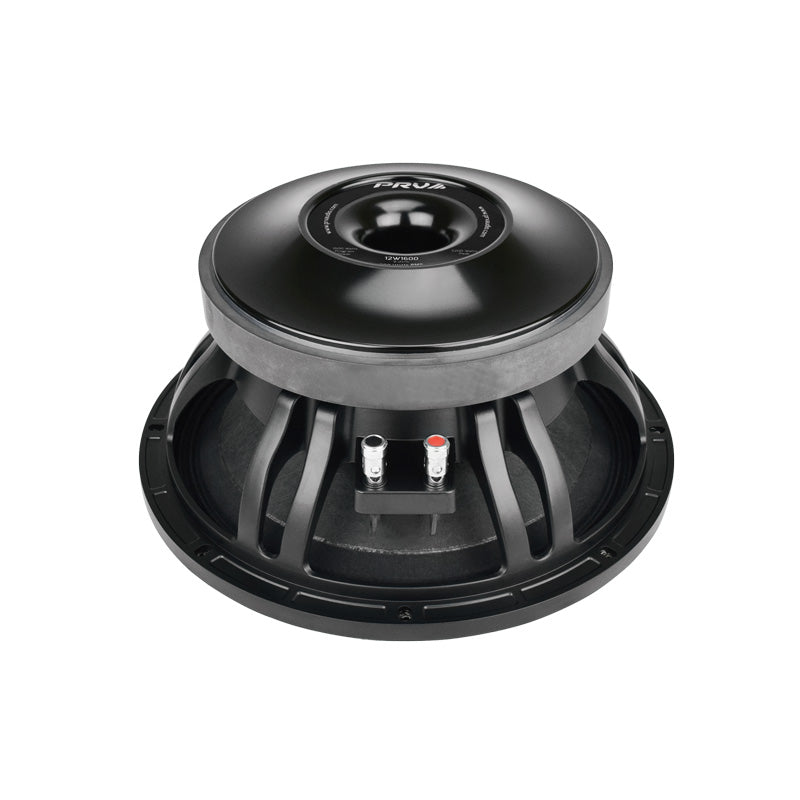

Designed to make tremendous amounts of bass, the 12W1600 12″ woofer can be used in small vented or sealed cabinet. The shallow 5.51″ mounting depth and high EBP makes it ideal for compact folded horn enclosures. Our specially designed rigid cast aluminum frame features side forced cooling system openings which allows airflow to cool the voice coil to handle up to 800 watts RMS without issue. Spring-loaded push terminals make installation a snap while offering a secure connection to your speaker wires.
To stand up to the use and abuse of the professional sound environment we designed a 4″ spit copper voice coil that is wound inside-outside on a fiberglass former and features a generous 27.5 mm winding length for extended Xmax and less distortion.

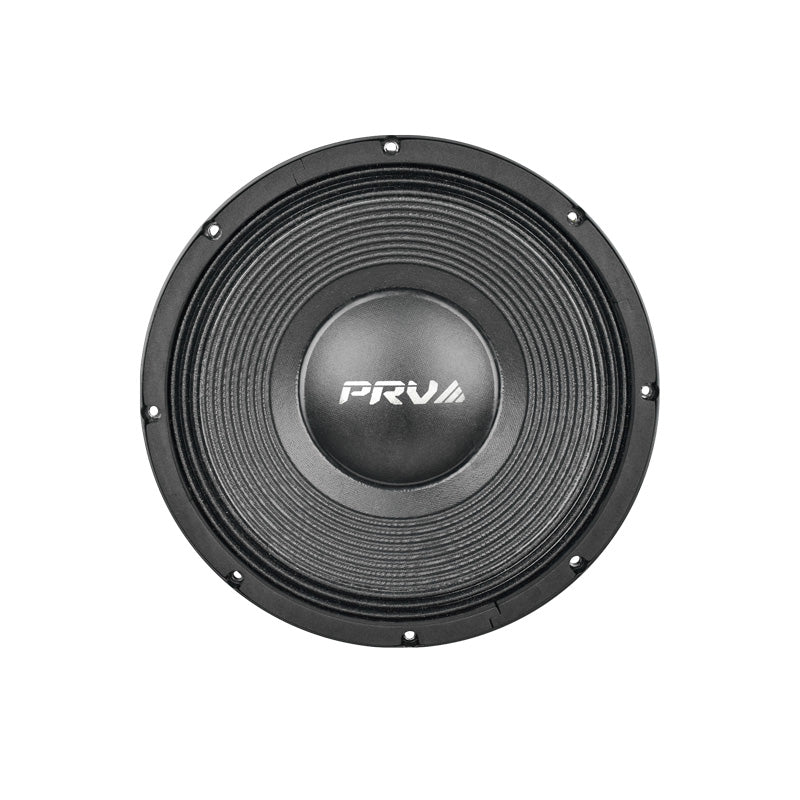

The cone, constructed of thick paper for a natural response, includes glass fiber reinforcement and uses a ribbed design offering additional structural support. Supporting the cone is a double heavy spider and triple roll treated cloth surround, both designed for high excursion applications to handle short bursts of excessive power without damage.
Technical Details
GENERAL SPECIFICATIONS
| Nominal Diameter | 12″ (305 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 800 Watts |
| Program Power | 1600 Watts |
| Sensitivity 2.83V at 1m | 94 dB |
|
Recommended Hi Pass Crossover** **For Full Power Handling |
60 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 55 – 2,500 Hz |
| Voice Coil Diameter | 4″ (100 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Winding Depth | 27.0 mm |
| Former Material | Glass Fiber |
| Magnetic Gap Depth | 12.0 mm |
| Frame Material | Die Cast Aluminum |
THIELE-SMALL PARAMETERS
| Equivalent Volume | Vas | 46.99 l |
| Excursion (mathematical)*** | Xmax | 10.50 mm |
| Free Air Resonance | Fs | 51.22 Hz |
| Mechanical Factor | Qms | 14.98 |
| Electrical Factor | Qes | 0.40 |
| Total Factor | Qts | 0.39 |
| Cone Area | Sd | 594 cm² |
| Mechanical Mass | Mms | 101.16 g |
| Bl Factor | Bl | 20.35 Tm |
| Dc Resistance | Re | 5.1 Ohms |
| Inductance | Le | 1.26 mH at 1 kHz |
| Mechanical Mass Without Air | Mmd | 92.97 g |
| Mechanical Compliance | Cms | 0.095 mm/N |
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4
EXTRA INFO
| Overall Diameter | 12.40” (315 mm) |
| Front Mount Baffle Cutout | 11.16” (283.4 mm) |
| Mounting Depth | 5.51” ( 140 mm) |
| Overall Depth | 6.04” (153.5 mm) |
| Net Weight | 24.22 Lbs (11.0 kg) |
| Shipping Weight | 26.01.Lbs (11.80 kg) |
| Carton Dimensions W x L x H | 13.38” x 13.38” x 6.69” (340 x 340 x 170 mm) |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
