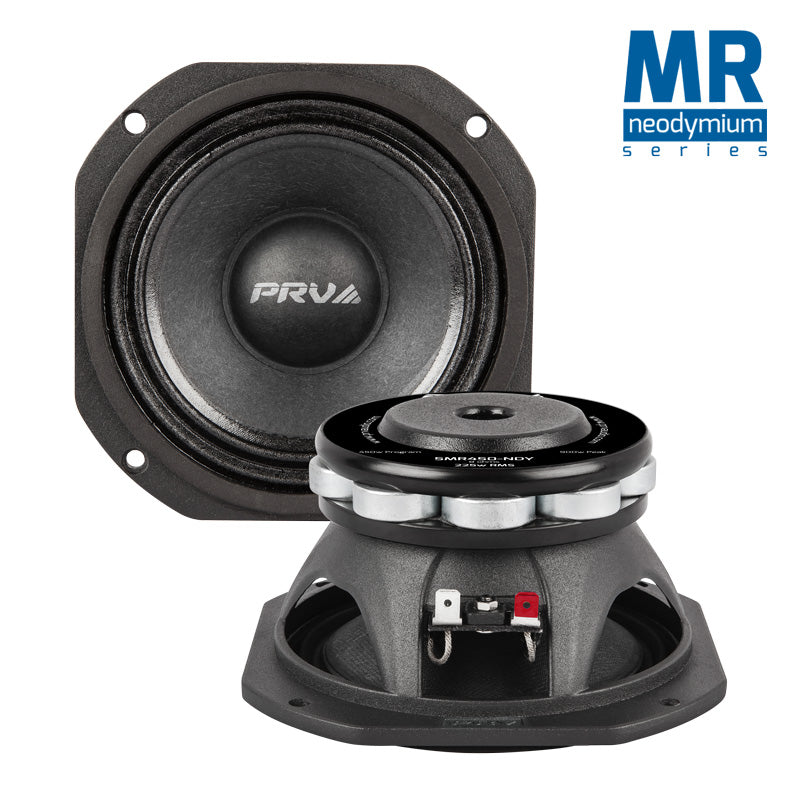

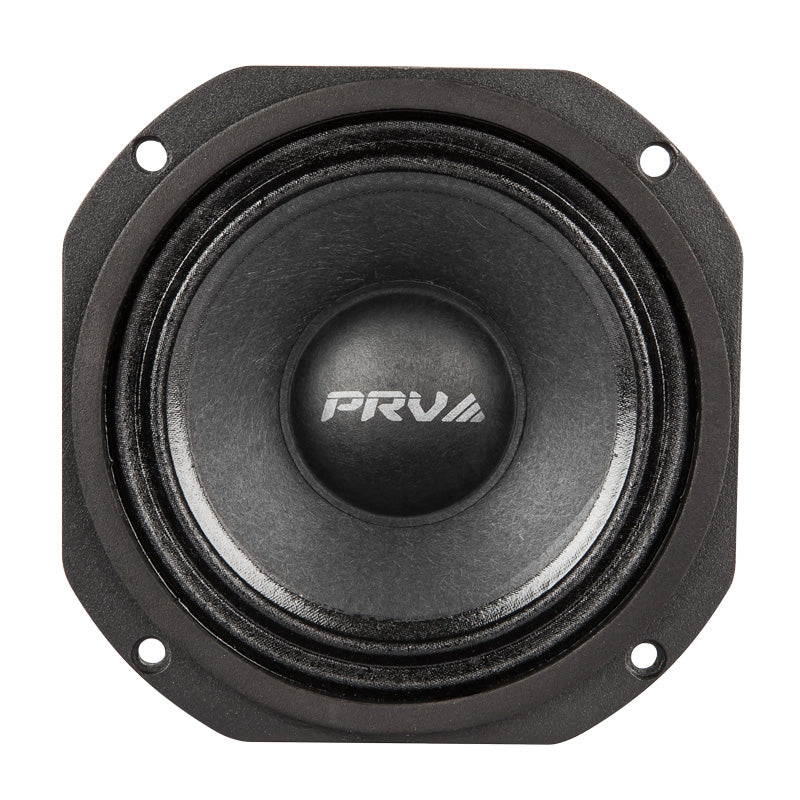

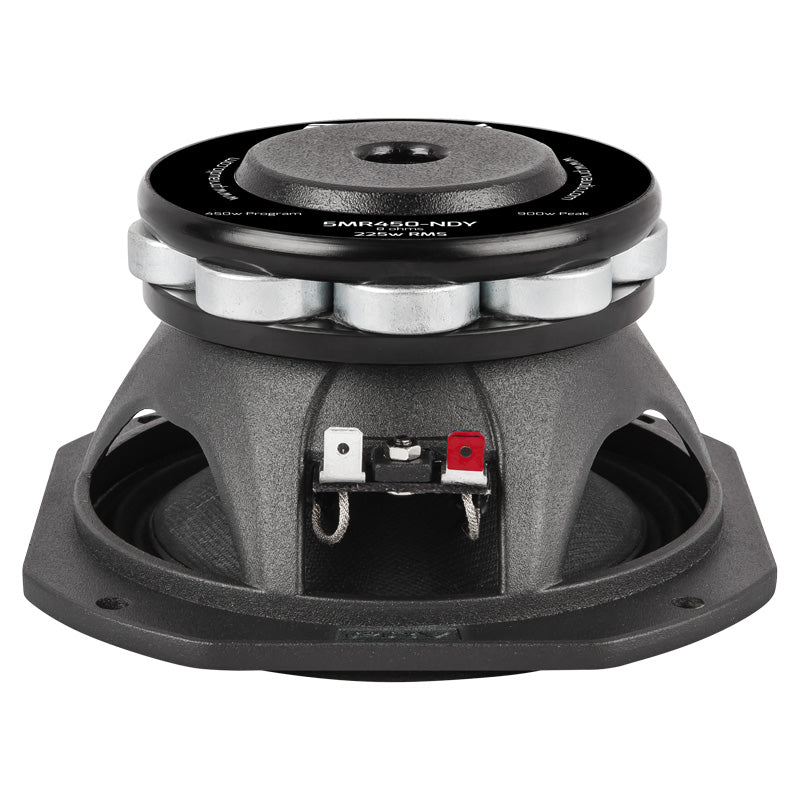

PRV Audio 5MR450-NDY 5" NEODYMIUM MIDRANGE LOUDSPEAKER

SKU: PRV-5MR450-NDY
Your Price:
$119.91
Add to wishlist
Checkout Secure

Great reasons to buy from us:

  • Image of Quality Assurance

    Quality Assurance

    Quality Assurance
  • Image of Expert Guidance

    Expert Guidance
  • Image of Customers Over Profits

    Customers Over Profits

Features




The PRV Audio Pro Audio Loudspeaker, 5MR450-NDY midrange woofer offers outstanding durability and a smooth midrange response through 16kHz.





This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even the home studio monitors. It is a great option for three way cabinets requiring additional midrange support.

The high end neodymium magnet assembly was chosen to increase sensitivity and power handling. This neodymium is attached to a sturdy reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment.

Its light weight of only 1.21 lbs helps keep your enclosures light and is a great use for use for car doors and installers looking for high SPL midrange and upper midrange responses.
For car audio applications, a 4 ohm model is also available.


















Highlights





  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 225 Watts
  • Program Power: 450 Watts
  • Sensitivity (1W/1m): 94 dB
  • Voice Coil Diameter: 1.5″







Technical Details


GENERAL SPECIFICATIONS

Nominal Diameter 5″ (127 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 225 Watts
Program Power 450 Watts
Sensitivity 2.83V at 1m 94 dB
Recommended Hi Pass Crossover*
*For Full Power Handling
290 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 160- 16,000 Hz
Voice Coil Diameter 1.5″ (38.1 mm)
Voice Coil Wire Copper
Voice Coil Winding Depth 9.8 mm
Former Material Kapton
Magnetic Gap Depth 5.8 mm
Frame Material Die Cast Aluminum




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 1.47 l
Excursion (mathematical)*** Xmax 3.45 mm
Free Air Resonance Fs 159.0 Hz
Mechanical Factor Qms 22.26
Electrical Factor Qes 0.66
Total Factor Qts 0.64
Cone Area Sd 95 cm²
Mechanical Mass Mms 8.60 g
Bl Factor Bl 9.42 Tm
Dc Resistance Re 6.9 Ohms
Inductance Le 0.03 mH at 1 kHz
Mechanical Mass Without Air Mmd 8.07 g
Mechanical Compliance Cms 0.116 mm/N



EXTRA INFO

Overall Diameter 5.79″ (147 mm)
Front Mount Baffle Cutout 4.72″ (120 mm)
Mounting Depth 2.60″ (66 mm)
Overall Depth 2.95″ (75 mm)
Net Weight 2.65 Lbs (1.2 kg)
Shipping Weight 2.85 Lbs (1.3 kg)
Carton Dimensions W x L x H 6.1” x 6.1 x 3.7”
(155 x 155 x 95mm)

                        Shipping This item ships to
                        Delivery Estimated between and . Will usually ship within 1-3 businesses day.

                        Description

                        Features




                        The PRV Audio Pro Audio Loudspeaker, 5MR450-NDY midrange woofer offers outstanding durability and a smooth midrange response through 16kHz.





                        This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even the home studio monitors. It is a great option for three way cabinets requiring additional midrange support.

                        The high end neodymium magnet assembly was chosen to increase sensitivity and power handling. This neodymium is attached to a sturdy reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment.

                        Its light weight of only 1.21 lbs helps keep your enclosures light and is a great use for use for car doors and installers looking for high SPL midrange and upper midrange responses.
                        For car audio applications, a 4 ohm model is also available.


















                        Highlights





                        • Nominal Impedance: 8 Ohms
                        • Rated AES Power Handling (RMS): 225 Watts
                        • Program Power: 450 Watts
                        • Sensitivity (1W/1m): 94 dB
                        • Voice Coil Diameter: 1.5″







                        Technical Details


                        GENERAL SPECIFICATIONS

                        Nominal Diameter 5″ (127 mm)
                        Nominal impedance 8 Ohms
                        Rated AES Power Handling (RMS) 225 Watts
                        Program Power 450 Watts
                        Sensitivity 2.83V at 1m 94 dB
                        Recommended Hi Pass Crossover*
                        *For Full Power Handling
                        290 Hz**
                        **12db Per Octave Crossover
                        Frequency Response at -10dB 160- 16,000 Hz
                        Voice Coil Diameter 1.5″ (38.1 mm)
                        Voice Coil Wire Copper
                        Voice Coil Winding Depth 9.8 mm
                        Former Material Kapton
                        Magnetic Gap Depth 5.8 mm
                        Frame Material Die Cast Aluminum




                        THIELE-SMALL PARAMETERS

                        Equivalent Volume Vas 1.47 l
                        Excursion (mathematical)*** Xmax 3.45 mm
                        Free Air Resonance Fs 159.0 Hz
                        Mechanical Factor Qms 22.26
                        Electrical Factor Qes 0.66
                        Total Factor Qts 0.64
                        Cone Area Sd 95 cm²
                        Mechanical Mass Mms 8.60 g
                        Bl Factor Bl 9.42 Tm
                        Dc Resistance Re 6.9 Ohms
                        Inductance Le 0.03 mH at 1 kHz
                        Mechanical Mass Without Air Mmd 8.07 g
                        Mechanical Compliance Cms 0.116 mm/N



                        EXTRA INFO

                        Overall Diameter 5.79″ (147 mm)
                        Front Mount Baffle Cutout 4.72″ (120 mm)
                        Mounting Depth 2.60″ (66 mm)
                        Overall Depth 2.95″ (75 mm)
                        Net Weight 2.65 Lbs (1.2 kg)
                        Shipping Weight 2.85 Lbs (1.3 kg)
                        Carton Dimensions W x L x H 6.1” x 6.1 x 3.7”
                        (155 x 155 x 95mm)

                                              Shipping

                                              Shipping This item ships to
                                              Delivery Estimated between and . Will usually ship within 1-3 businesses day.
