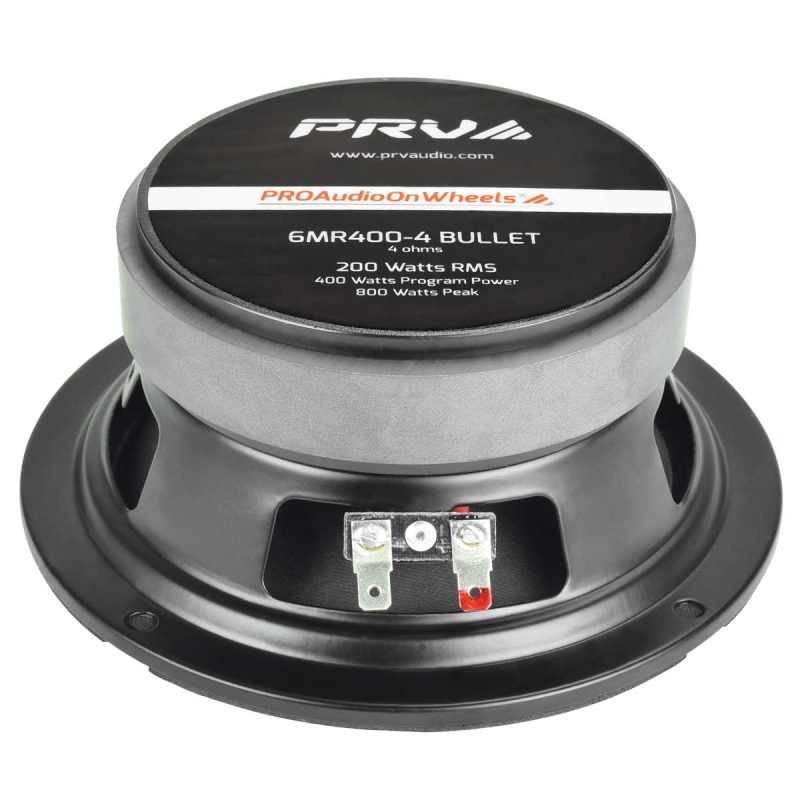

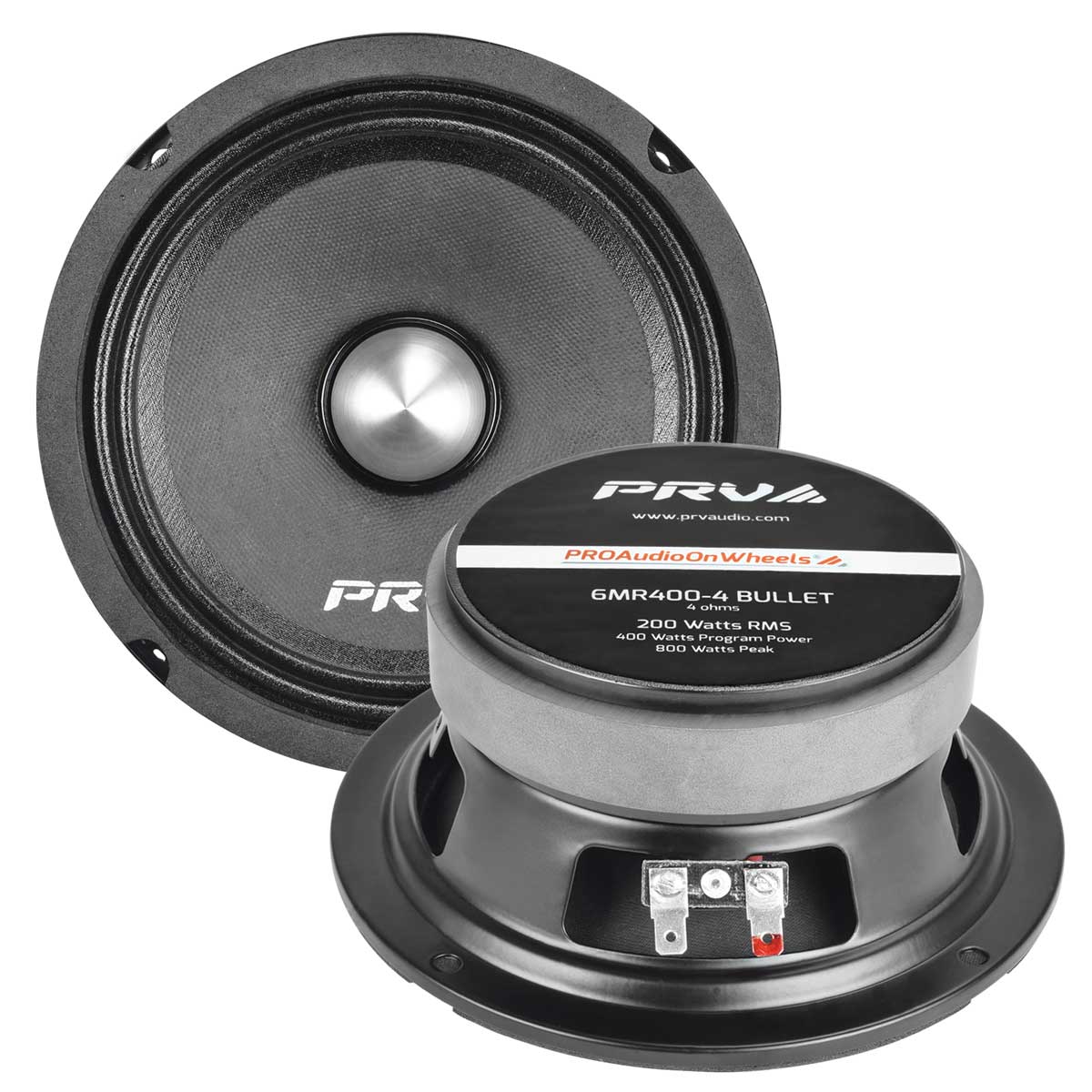

PRV Audio 6MR400-4 BULLET 6.5" Mid Range Bullet Loudspeaker (Single)

  • $54.91
    Unit price per

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION

DESCRIPTION

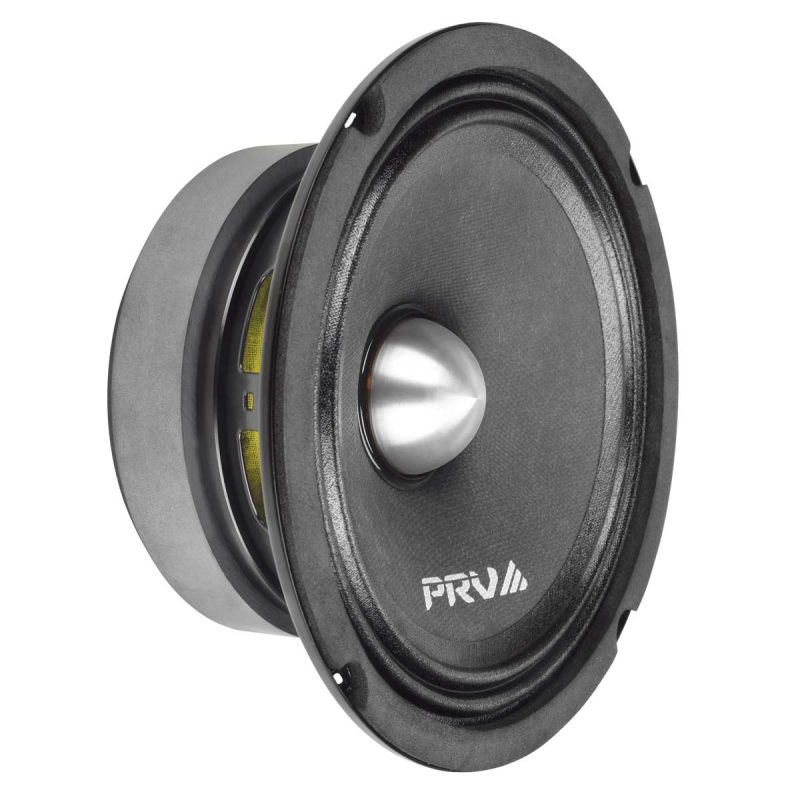

Featuring an Aluminum Phase Plug (Bullet), this mid is built like a professional mid range loudspeaker, but it has been designed for use in the mobile audio market, as we called it Pro Audio On Wheels®!! By combining elements from PRO Audio and Car Audio, we have developed a NEW type of high efficient mid range that is able to give high levels of output for your custom door.

8MR5000-NDY-V2---Highlight---4-and-8-Ohms

Highlights

  • Built to Perform at Wide Frequency Range: 145 – 12,500 Hz
  • Highest Quality Speaker with bullet design available
  • High efficiency: 95 dB guarantees High Output Levels
  • Handles 400 Watts – Endurance at Loudest Volumes
  • Vented Air pole piece for heat dissipation
  • Center phase plug for even sound distribution
  • 4 Ohms Impedance
  • Also available in 8″ – 8MR500-4 BULLET
    and 6×9″ – 69MR500-4 BULLET

The “bullet” phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound.

A triple roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speaker’s frequency response is smooth and extends to high range making an easy transition to a super tweeter, but according to customers, the high-frequency response from this speaker does NOT need support from a tweeter!


6MR250B-4 SLIM

The suspension design of this mid range features a single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.

Its high-performance characteristics and high-quality components provide exceptional clarity, detail, and dynamics sound. You can expect outstanding sound stage quality and realistic sound reproduction for a great value. This is the new standard of value in high-performance bullet speakers.


Built to perform and able to handle 400 watts of continuous power, this mid range is the perfect match on 3-way custom door system such as:

10W1000-NDY-4 + 6MR400-4 BULLET + TW450Ti-ND-4 making the ultimate sound reproduction machine, with unbeatable sound quality and output.

Technical Details


GENERAL SPECIFICATIONS

Nominal Diameter 6″ (152 mm)
Nominal impedance 4 Ohms

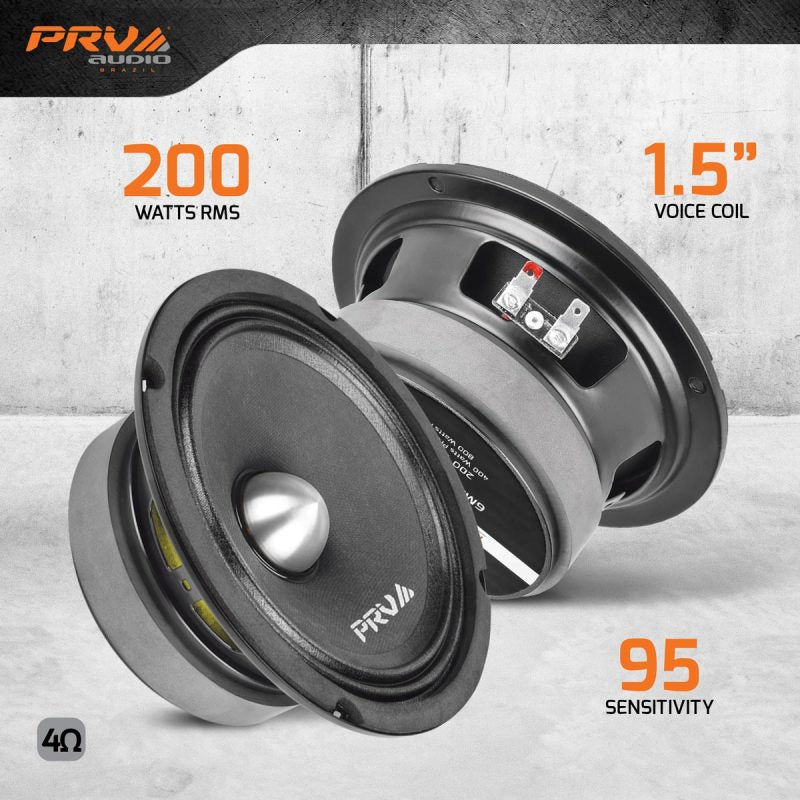

Rated AES Power Handling (RMS) 200 Watts
Program Power 400 Watts
Sensitivity 2.83V at 1m 95 dB
Recommended Hi Pass Crossover** **For Full Power Handling 145 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 145 – 12,500 Hz
Voice Coil Diameter 1.5″ (38 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 9.5 mm
Former Material Kapton
Magnetic Gap Depth 6.0 mm
Frame Material Stamped Steel

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 4.40 l
Excursion (mathematical)*** Xmax 3.25 mm
Free Air Resonance Fs 144.1  Hz
Mechanical Factor Qms 11.98
Electrical Factor Qes 0.64
Total Factor Qts 0.60
Cone Area Sd 143 cm²
Mechanical Mass Mms 7.94 g
Bl Factor Bl 6.37 Tm
Dc Resistance Re 3.6 Ohms
Inductance Le 0.136 mH at 1 kHz
Mechanical Mass Without Air Mmd 6.97 g
Mechanical Compliance Cms 0.154 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

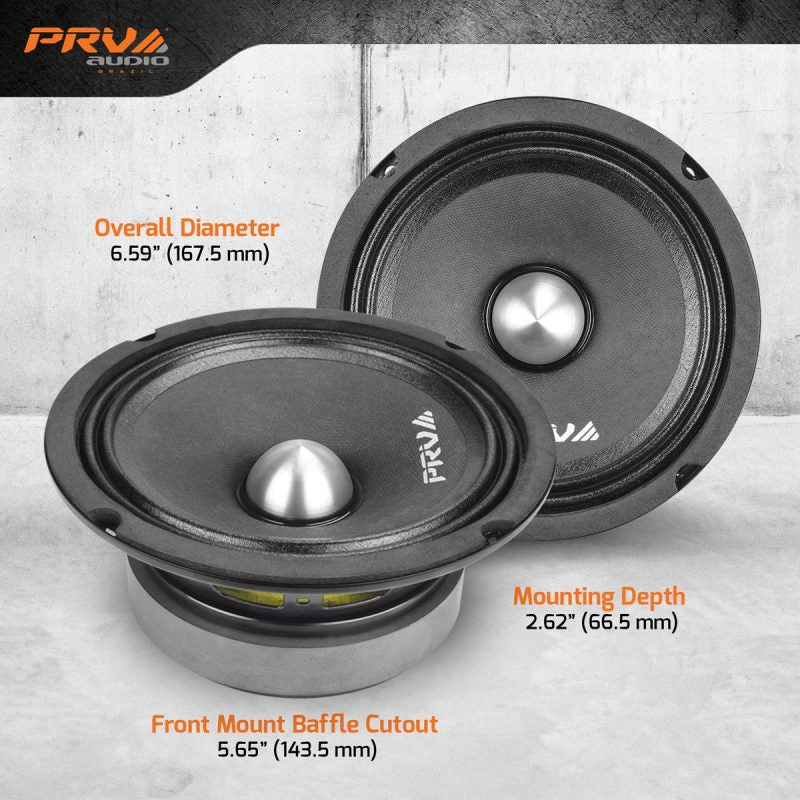

Overall Diameter 6.59″ (167.5 mm)
Front Mount Baffle Cutout 5.65″ (143.5 mm)
Mounting Depth 2.62″ (66.5 mm)
Overall Depth 2.99″ (73.5 mm)
Net Weight 4.81 Lbs (2.18 kg) unit
Shipping Weight 5.18 Lbs (2.35 kg)
Carton Dimensions W x L x H 8.50″ x 8.50″ x 3.35″ (175 x 175 x 85 mm)
