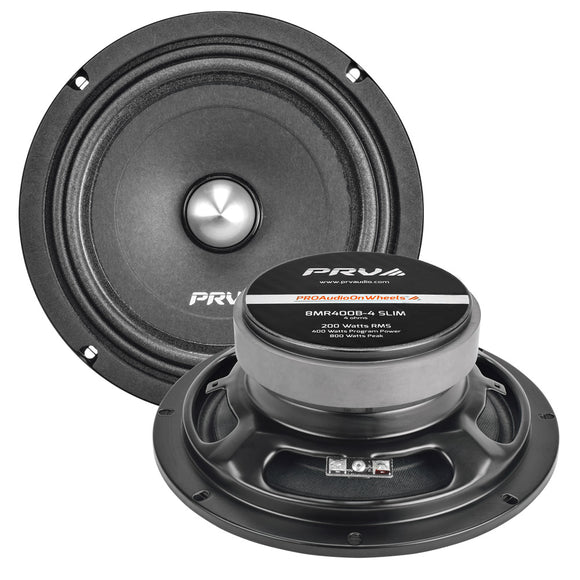

PRV Audio 8MR400B-4 SLIM 8" Mid Range Bullet Slim Loudspeaker

  • $41.91
    Unit price per
  • Save $10.48

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

Highlights

  • Slim Design – Perfect for door stock location
  • Sound Quality without Cutting up interior Panels
  • Endurance at Loudest Volumes
  • Vented Air pole piece for heat dissipation
  • Center phase plug for even sound distribution
  • 4 Ohms Impedance
  • Also available in 6″ – 6MR250B-4 SLIM

The “bullet” phase plug is made from pure aluminum acting as a radiator cooling system for the voice coil and machined to perfection for even sound dissipation. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound.

Also featuring a cloth M-roll surround helping resonance to be kept under control making for an easy transition to a super tweeter.


6MR500CF-NDY-4

The suspension design of this mid range features the single layer spider – which connects to the coil former with premium stitched lead wires, all being driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.

You can expect outstanding sound stage quality and realistic sound reproduction for a great value.


Built for compact spaces and able to handle 400 watts of continuous power. Its slim design makes this the perfect car audio door speaker, allowing it to be utilized in endless ways.

Loud and clear vocals all within 2.68″ of mounting depth without sacrifice quality and performance.

Technical Details


GENERAL SPECIFICATIONS
Nominal Diameter 8″ (152 mm)
Nominal impedance 4 Ohms

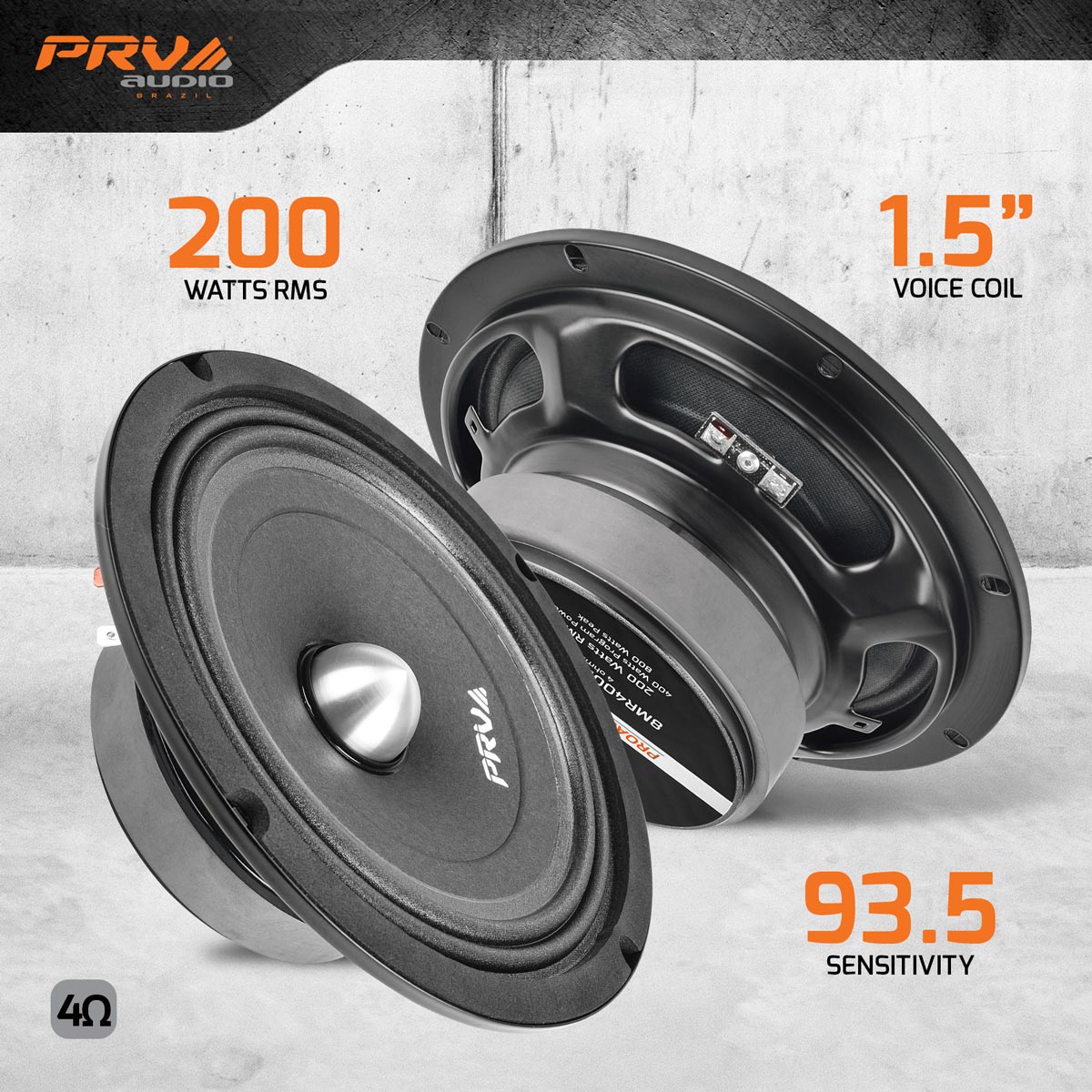

Rated AES Power Handling (RMS) 200 Watts
Program Power 400 Watts
Sensitivity 2.83V at 1m 93.5 dB
Recommended Hi Pass Crossover** **For Full Power Handling 125 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 95 – 7,500 Hz
Voice Coil Diameter 1.5″ (38 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 9.5 mm
Former Material Kapton
Magnetic Gap Depth 6.0 mm
Frame Material Stamped Steel

THIELE-SMALL PARAMETERS

Equivalent Volume Vas 15.7 l
Excursion (mathematical)*** Xmax 3.25 mm
Free Air Resonance Fs 92.9  Hz
Mechanical Factor Qms 25.53
Electrical Factor Qes 0.76
Total Factor Qts 0.74
Cone Area Sd 230 cm²
Mechanical Mass Mms 13.78 g
Bl Factor Bl 6.34 Tm
Dc Resistance Re 3.8 Ohms
Inductance Le 0.167 mH at 1 kHz
Mechanical Mass Without Air Mmd 11.81 g
Mechanical Compliance Cms 0.213 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

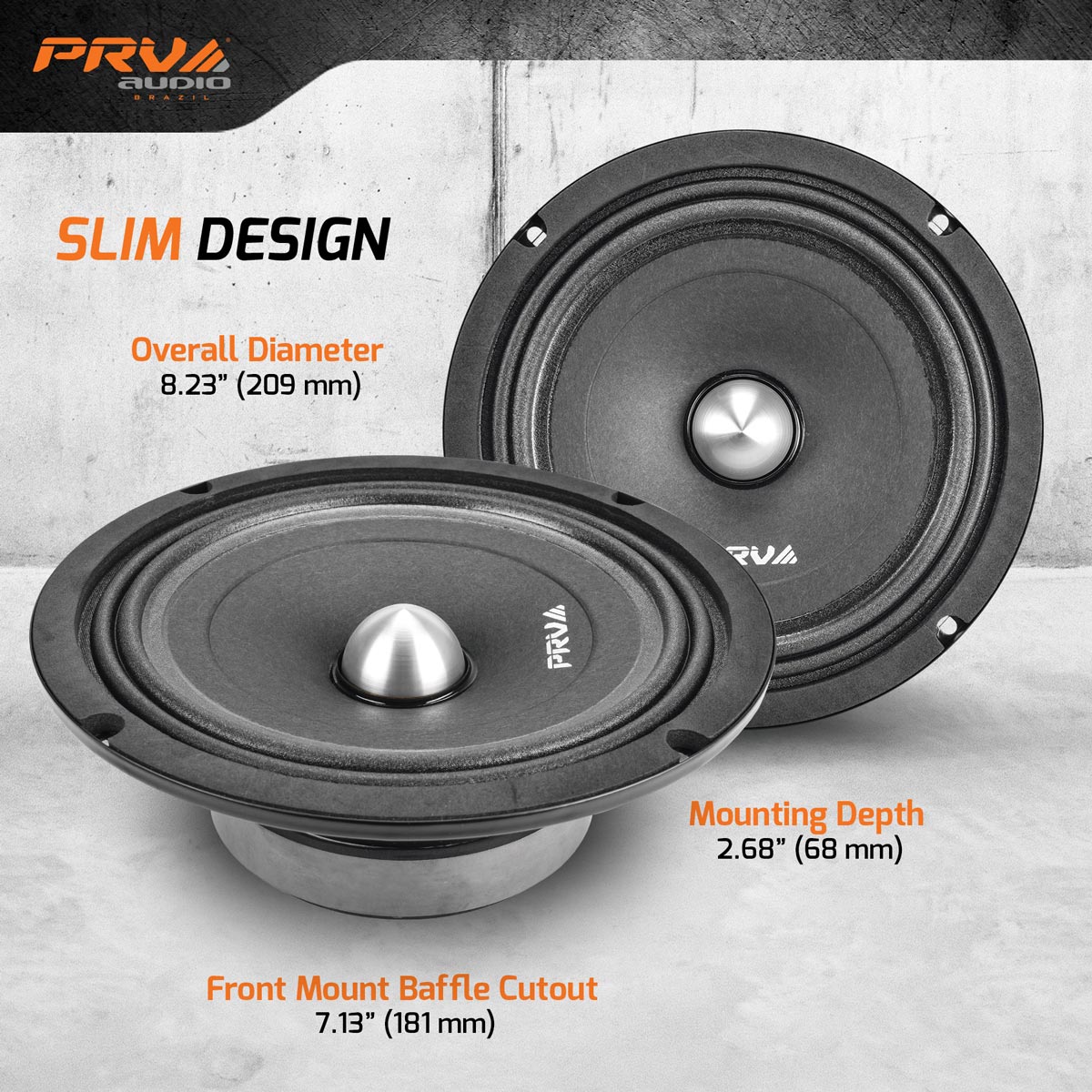

Overall Diameter 8.23″ (209 mm)
Front Mount Baffle Cutout 7.13″ (181 mm)
Mounting Depth 2.68″ (68 mm)
Overall Depth 2.95″ (75 mm)
Net Weight 5.10 Lbs (2.30 kg) unit
Shipping Weight 5.50 Lbs (2.50 kg)
Carton Dimensions W x L x H 8.66″ x 8.66″ x 3.62″ (220 x 220 x 92 mm)
