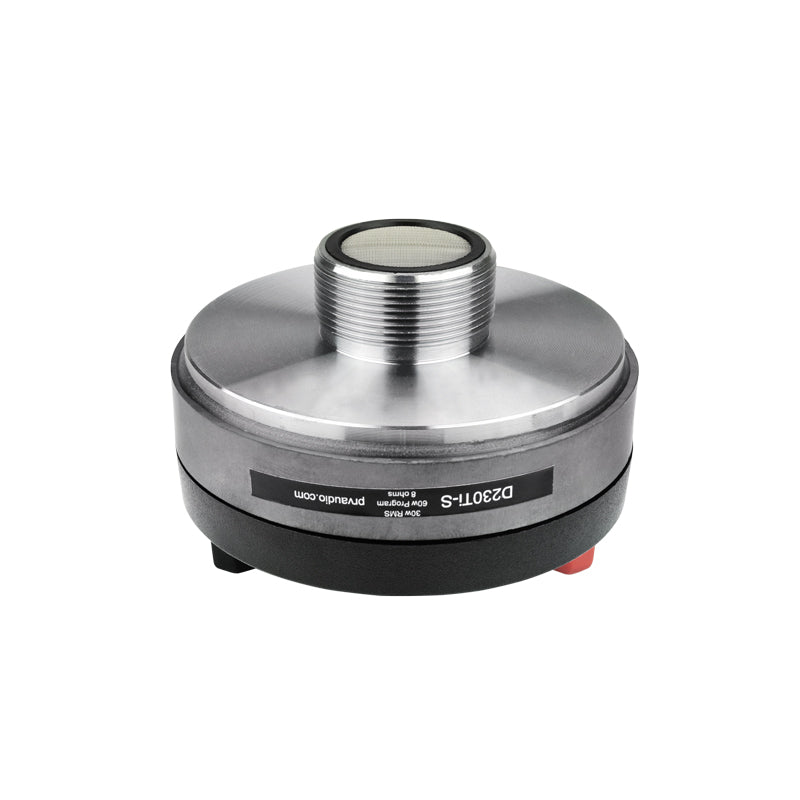

PRV D230Ti-S 1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER

SKU: PRV-D230Ti-S
Your Price:
$32.91
Add to wishlist
Checkout Secure

Great reasons to buy from us:

  • Image of Quality Assurance

    Quality Assurance

    Quality Assurance
  • Image of Expert Guidance

    Expert Guidance
  • Image of Customers Over Profits

    Customers Over Profits

The D230Ti-S compression driver is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8″-18 TPI horn.

The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.


Highlights

  • Throat Diameter: 1″
  • Type: Screw-On
  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 30 Watts
  • Program Power: 60 Watts

This driver is also available in both bolt-on and screw-on models (D230T-B / D230Ti-S). The D230Ti-B is a lightweight driver that weighs just 2lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.

The D230Ti-S is designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1” screw-on design

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter 1” (25.4mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 30 Watts
Program Power 60 Watts
Sensitivity 2.83V at 1m 105 dB
Recommended Hi Pass Crossover** **For Full Power Handling 2000 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 1,800 – 20,000 Hz
Voice Coil Diameter 1.4″ (35.5 mm)
Voice Coil Wire Copper
Voice Coil Former Material Kapton
Diaphragm Material Titanium
Flux Density 1.65 T
Magnet Material Ferrite


EXTRA INFO

Overall Diameter 3.54” (90 mm)
Overall Depth 2.40” (61 mm)
Mounting Thread 1 3/8” 18 TPI
Net Weight 2.05 lbs (0.93 kg)
Shipping Weight 2.14 lbs (0.97 kg)
Carton Dimensions W x L x H 3.74” x 3.74” x 2.95” (95 x 95 x 75 mm)
    Shipping This item ships to
    Delivery Estimated between and . Will usually ship within 1-3 businesses day.

    Description

    The D230Ti-S compression driver is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8″-18 TPI horn.

    The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.


    Highlights

    • Throat Diameter: 1″
    • Type: Screw-On
    • Nominal Impedance: 8 Ohms
    • Rated AES Power Handling (RMS): 30 Watts
    • Program Power: 60 Watts

    This driver is also available in both bolt-on and screw-on models (D230T-B / D230Ti-S). The D230Ti-B is a lightweight driver that weighs just 2lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.

    The D230Ti-S is designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1” screw-on design

    Technical Details

    GENERAL SPECIFICATIONS

    Exit Throat Diameter 1” (25.4mm)
    Nominal impedance 8 Ohms
    Rated AES Power Handling (RMS) 30 Watts
    Program Power 60 Watts
    Sensitivity 2.83V at 1m 105 dB
    Recommended Hi Pass Crossover** **For Full Power Handling 2000 Hz** **12db Per Octave Crossover
    Frequency Response at -10dB 1,800 – 20,000 Hz
    Voice Coil Diameter 1.4″ (35.5 mm)
    Voice Coil Wire Copper
    Voice Coil Former Material Kapton
    Diaphragm Material Titanium
    Flux Density 1.65 T
    Magnet Material Ferrite


    EXTRA INFO

    Overall Diameter 3.54” (90 mm)
    Overall Depth 2.40” (61 mm)
    Mounting Thread 1 3/8” 18 TPI
    Net Weight 2.05 lbs (0.93 kg)
    Shipping Weight 2.14 lbs (0.97 kg)
    Carton Dimensions W x L x H 3.74” x 3.74” x 2.95” (95 x 95 x 75 mm)

      Shipping

      Shipping This item ships to
      Delivery Estimated between and . Will usually ship within 1-3 businesses day.
