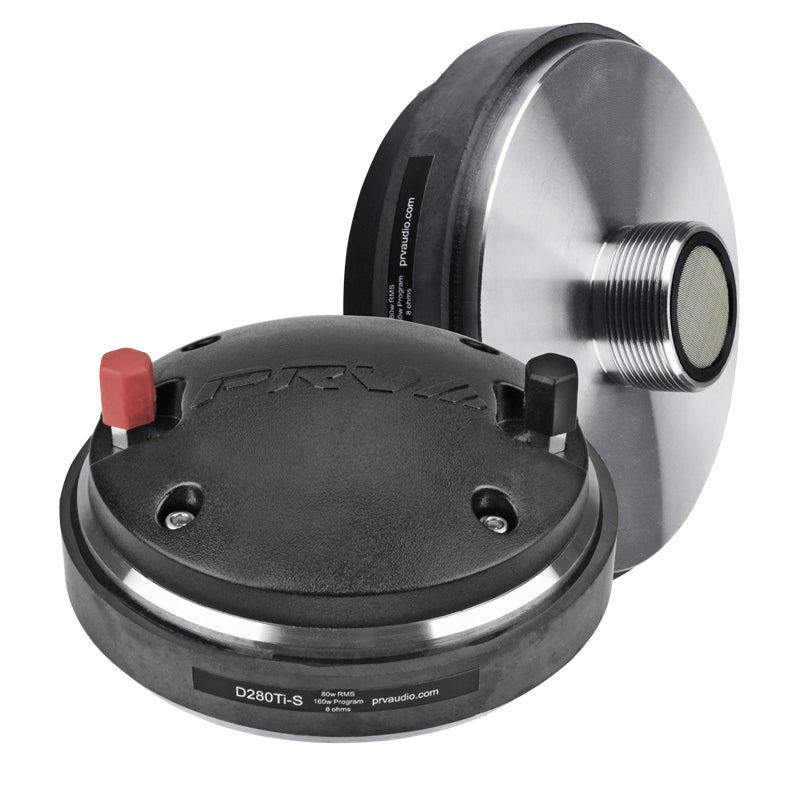

PRV D280Ti-S 1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER product image 1

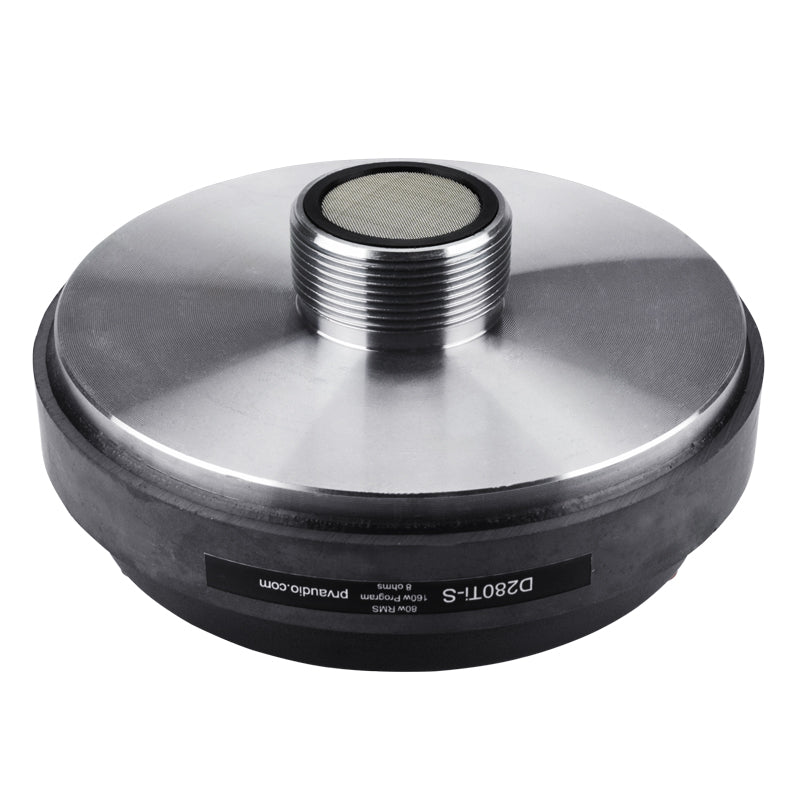

PRV D280Ti-S 1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER product image 2

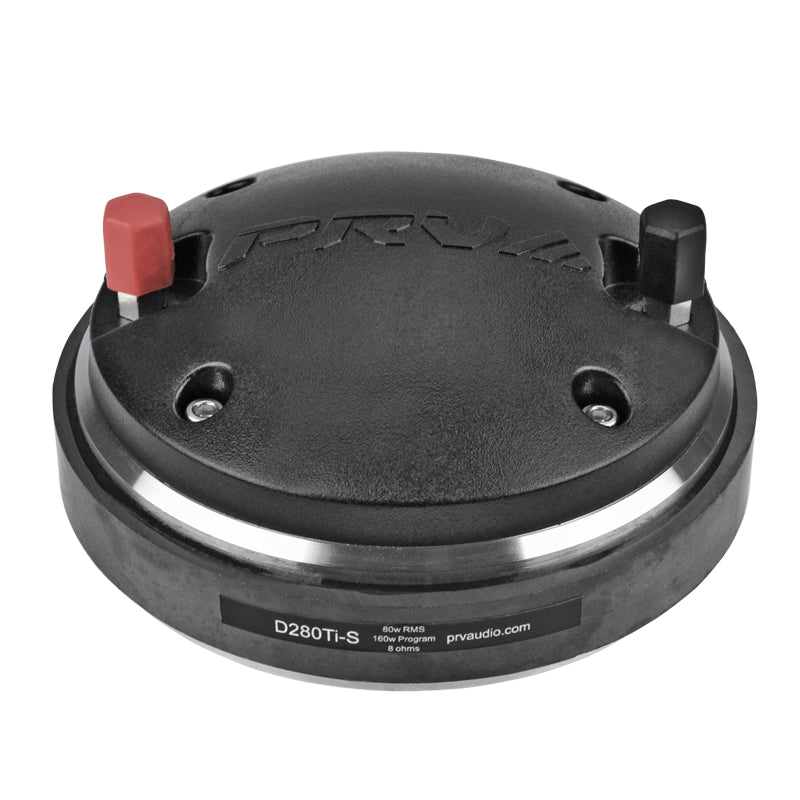

PRV D280Ti-S 1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER product image 3

PRV D280Ti-S 1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER

Name: PRV D280Ti-S 1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER
Brand: PRV Audio
SKU: PRV-D280Ti-S
Price: 39.91 USD
Availability: InStock

SKU: PRV-D280Ti-S

Your Price:

$39.91

Available to order Secure checkout, financing options, and build support from Droppin HZ.

Shipping Info Returns Fitment Help Warranty Support

Complete the build

Wiring Kits Batteries Subwoofers

Great reasons to buy from us:

Quality Assurance
Quality Assurance
Expert Guidance
Customers Over Profits

The NEW PRV Audio D280Ti-S Compression Driver offers a surprisingly smooth response and high efficiency from mid-range through high range frequencies thanks to the pure titanium diaphragm.

Highlights

Throat Diameter: 1″
Type: Screw-On
Nominal Impedance: 8 Ohms
Rated AES Power Handling (RMS): 80 Watts
Program Power: 160 Watts

Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required. A 2 and 3 or bolt pattern ensures easy replacement with current 1” bolt-on horns and weighs just 3.3 lbs. A standard 1 3/8” screw ensures easy replacement with current 1” horns and weighs just 3.3 lbs.

D280Ti-B and D280Ti-S is designed to ensure a quality sound and long lasting play in most any environment and in the rare event you need to make a repair to your driver, simple, quick diaphragm replacements are available.

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter	1” (25.4mm)
Nominal impedance	8 Ohms
Rated AES Power Handling (RMS)	80 Watts
Program Power	160 Watts
Sensitivity 2.83V at 1m	109 dB
Recommended Hi Pass Crossover For Full Power Handling	1800 Hz 12db Per Octave Crossover
Frequency Response at -10dB	1,300 – 20,000 Hz
Voice Coil Diameter	1.75”(44.4 mm)
Voice Coil Wire	CCAW
Voice Coil Former Material	Kapton
Diaphragm Material	Titanium
Flux Density	1.65 T
Magnet Material	Ferrite

EXTRA INFO

Overall Diameter	4.52” (115 mm)
Overall Depth	2.56” (65 mm)
Mounting Thread	1 3/8” 18 TPI
Net Weight	3.31 lbs (1.5 kg)
Shipping Weight	3.52 lbs (1.59 kg)
Carton Dimensions W x L x H	5.31” x 5.0” x 2.91” (135 x 127 x 74 mm)

Shipping

Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination.

Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.

Have questions before you order? If you need help confirming fitment, power needs, or the right supporting gear for your build, contact Droppin HZ and we’ll help point you in the right direction.

Description

The NEW PRV Audio D280Ti-S Compression Driver offers a surprisingly smooth response and high efficiency from mid-range through high range frequencies thanks to the pure titanium diaphragm.

Highlights

Throat Diameter: 1″
Type: Screw-On
Nominal Impedance: 8 Ohms
Rated AES Power Handling (RMS): 80 Watts
Program Power: 160 Watts

Technical Details

GENERAL SPECIFICATIONS

Exit Throat Diameter	1” (25.4mm)
Nominal impedance	8 Ohms
Rated AES Power Handling (RMS)	80 Watts
Program Power	160 Watts
Sensitivity 2.83V at 1m	109 dB
Recommended Hi Pass Crossover For Full Power Handling	1800 Hz 12db Per Octave Crossover
Frequency Response at -10dB	1,300 – 20,000 Hz
Voice Coil Diameter	1.75”(44.4 mm)
Voice Coil Wire	CCAW
Voice Coil Former Material	Kapton
Diaphragm Material	Titanium
Flux Density	1.65 T
Magnet Material	Ferrite

EXTRA INFO

Overall Diameter	4.52” (115 mm)
Overall Depth	2.56” (65 mm)
Mounting Thread	1 3/8” 18 TPI
Net Weight	3.31 lbs (1.5 kg)
Shipping Weight	3.52 lbs (1.59 kg)
Carton Dimensions W x L x H	5.31” x 5.0” x 2.91” (135 x 127 x 74 mm)
