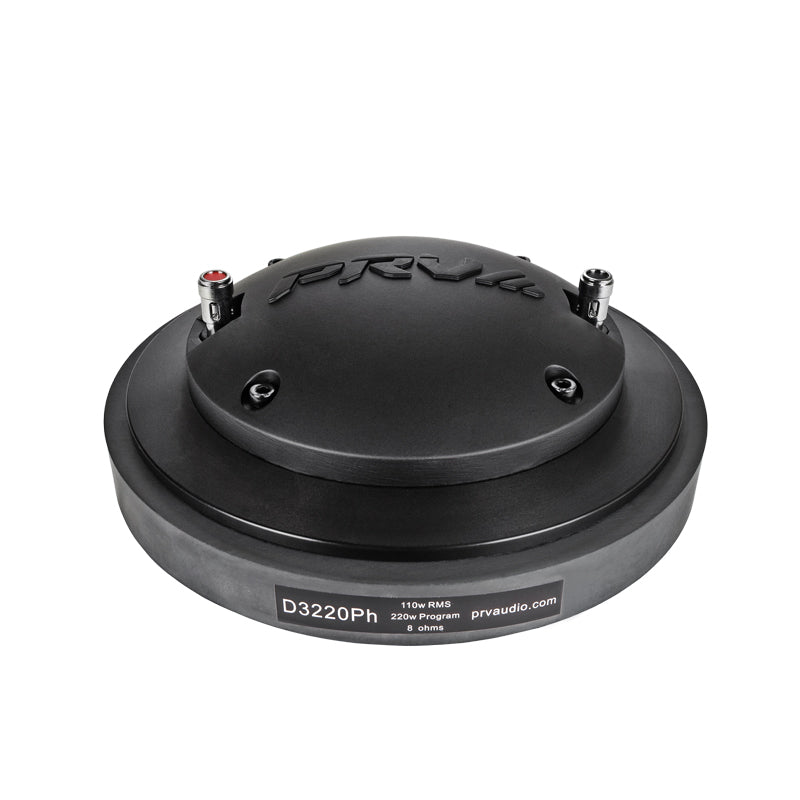

PRV AUDIO D3220Ph 2" EXIT PRO AUDIO PHENOLIC COMPRESSION DRIVER
DESCRIPTION
- Product Overview
Product Overview
Features
The PRV Audio D3220Ph, pro audio phenolic compression driver offers unsurpassed vocal and midrange reproduction. The specially designed phenolic diaphragm on a Kapton former offers a smooth sound required for proper voice production systems.
The D3220Ph with a 2” opening and large 3” voice coil is perfect for large venue loudspeaker enclosures or line array systems where a high sound quality and SPL is required. 4 M6 bolt mounts permit mounting to most 2” wave guides. D3220Ph is designed to ensure a quality sound and long lasting play in most any environment.
Highlights
- Throat Diameter: 2″
- Type: Bolt-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 110 Watts
- Program Power: 220 Watts
Technical Details
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 110 Watts |
| Program Power | 220Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 800 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 650 – 7,500 Hz |
| Voice Coil Diameter | 3”(76.2 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic resin |
| Flux Density | 1.80 T |
| Magnet Material | Ferrite |
EXTRA INFO
| Overall Diameter | 6.69” (170 mm) |
| Overall Depth | 2.75” (70 mm) |
| Mounting Bolt Circle | M6 x 4” (101.6 mm) |
| Net Weight | 9.72 lbs (4.41 kg) |
| Shipping Weight | 10.14 lbs (4.60 kg) |
| Carton Dimensions W x L x H | 7.67” x 7.67” x 3.94” (195 x 195 x 100 mm) |
