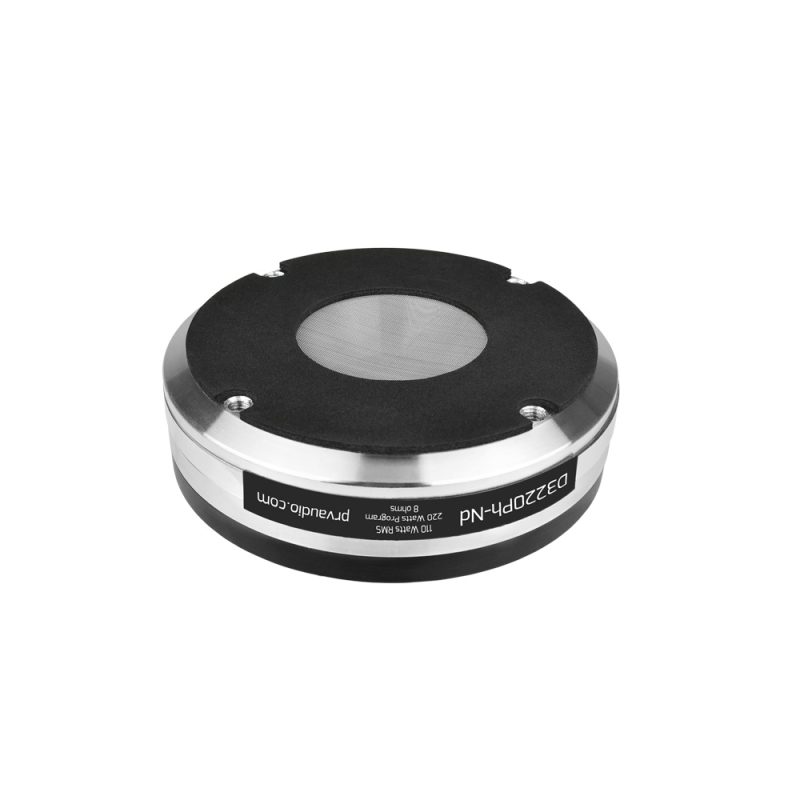

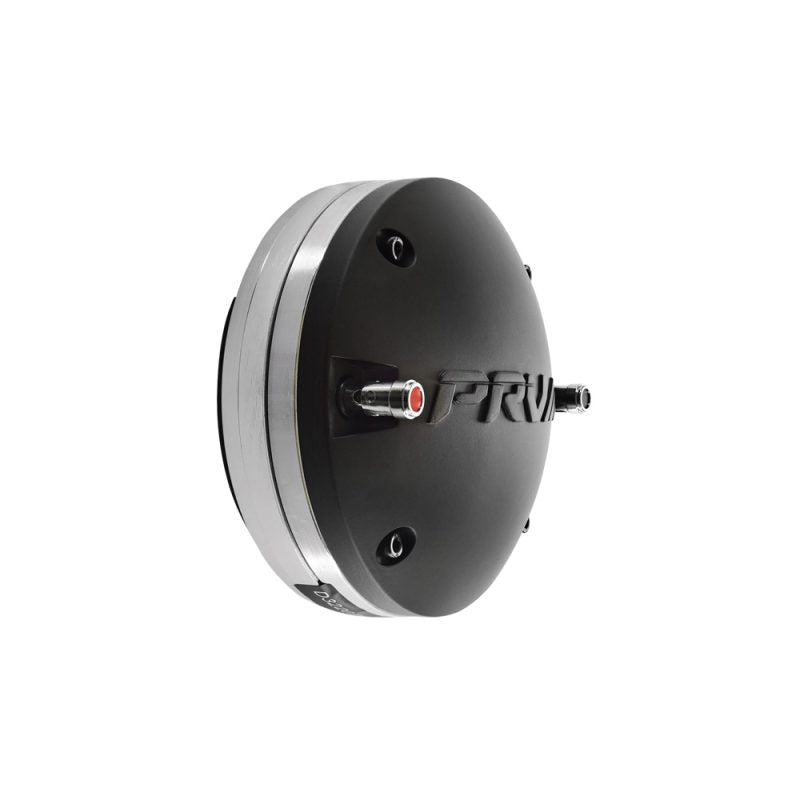

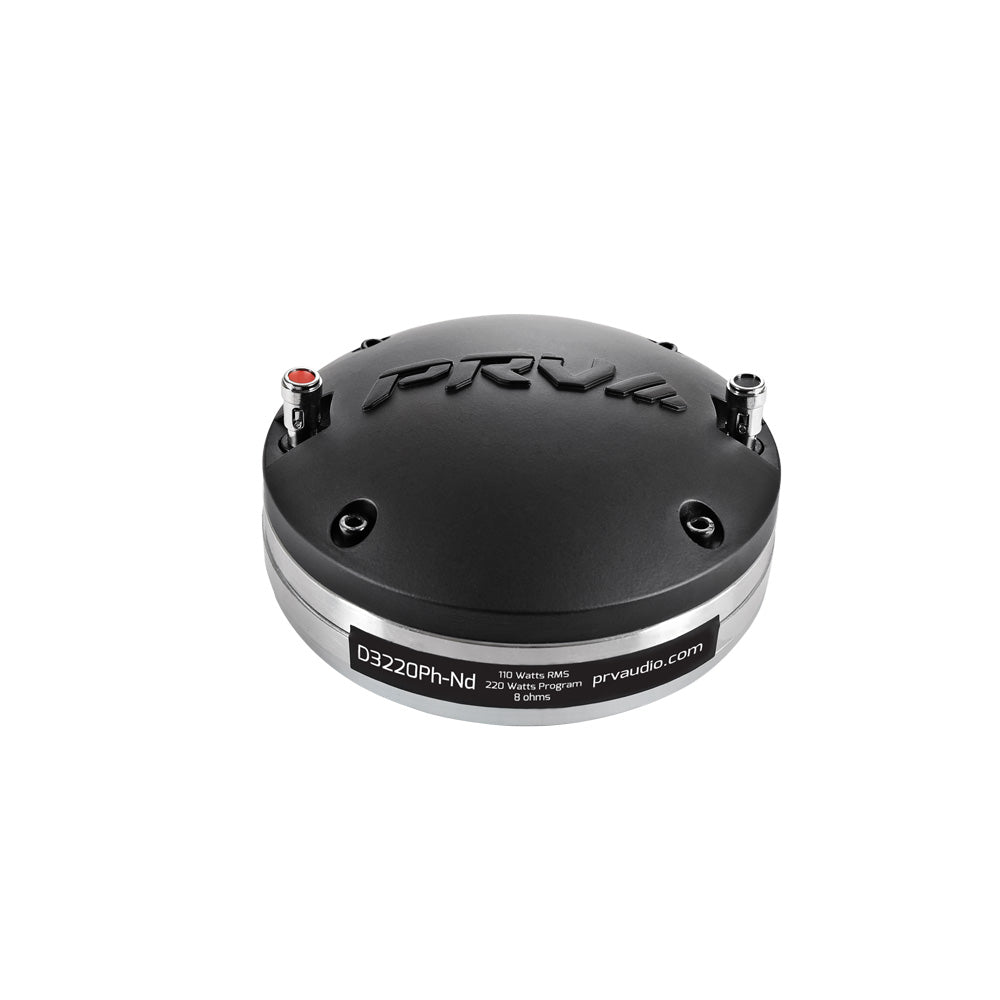

PRV AUDIO D3220Ph-Nd PRO AUDIO PHENOLIC NEODYMIUM COMPRESSION DRIVER
DESCRIPTION
- Product Overview
Product Overview
Features
The D3220Ph-Nd is the perfect solution for mid-high vocal reproduction, offering high sensitivity and a pleasant sound from the phenolic diaphragm. The small diameter of the driver allows front mounting, making it easy to install.
The pro audio phenolic compression driver offers unsurpassed vocal and mid range reproduction. The specially designed phenolic diaphragm on a Kapton former offers a smooth sound required for proper voice production systems.
Highlights
- Throat Diameter: 2″
- Type: Bolt-on
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 110 Watts
- Program Power: 220 Watts
Technical Details
| Exit Throat Diameter | 2” (50 mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 110 Watts |
| Program Power | 220Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 800 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 600 – 7,500 Hz |
| Voice Coil Diameter | 3”(76.2 mm) |
| Voice Coil Wire | Copper |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Phenolic |
| Flux Density | 1.80 T |
| Magnet Material | Neodymium |
EXTRA INFO
| Overall Diameter | 4.88” (124 mm) |
| Overall Depth | 2.21” (56 mm) |
| Mounting Bolt Circle | M6 x 4 4” (101.6 mm) |
| Net Weight | 5.00 lbs (2.27 kg) |
| Shipping Weight | 5.27 lbs (2.39 kg) |
| Carton Dimensions W x L x H | 5.71” x 5.71” x 3.35” (145 x 145 x 85 mm) |
