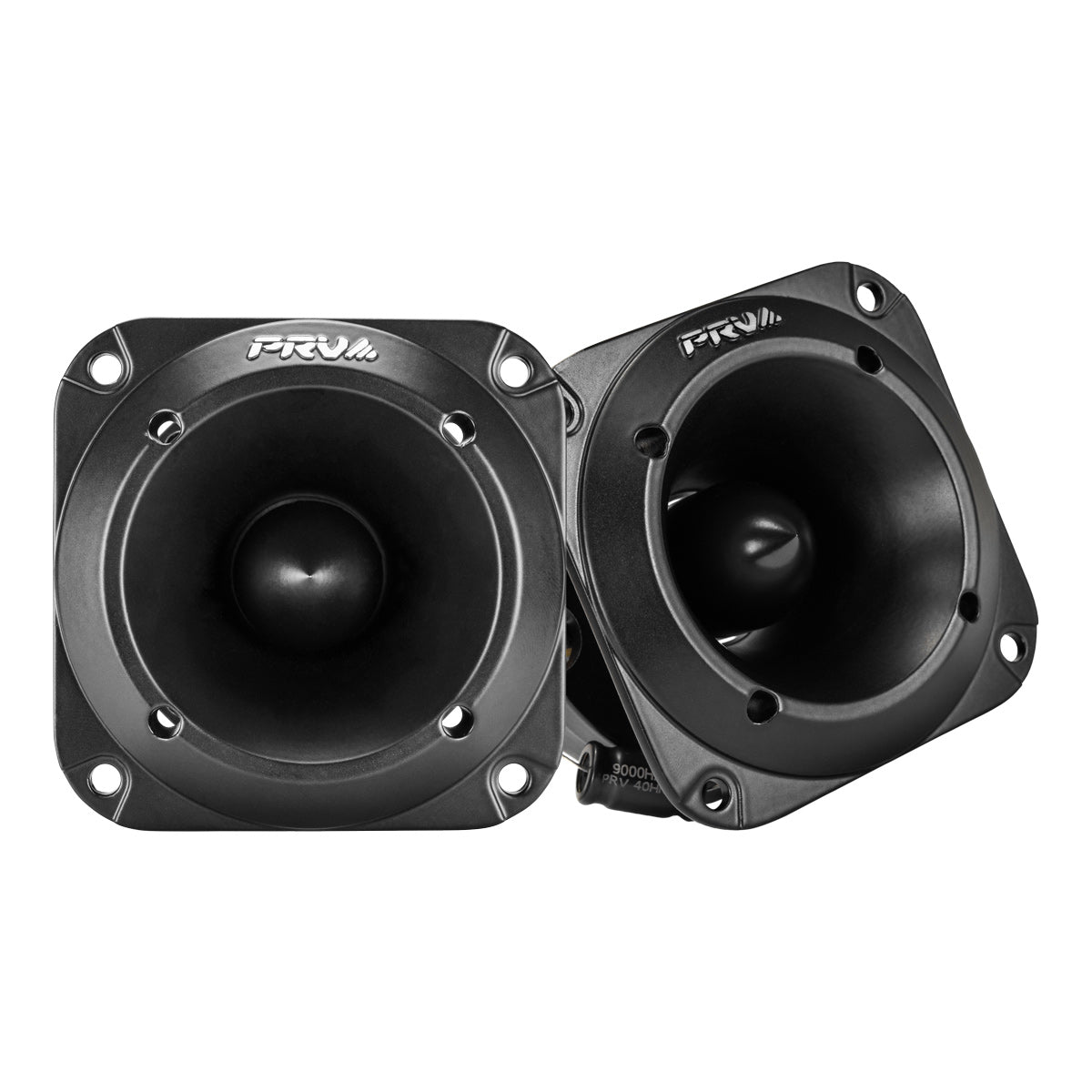

PRV Audio TW350Ti-4 (PAIR) PRO AUDIO SUPER TWEETER
- Product Overview
Add crystal clear sparkle to any speaker with PRV Audio’s TW350Ti-4 titanium bullet super tweeters! Not only does these tweeters look as good as it sounds, it can also take a lot of power from its 1″ diameter copper-clad voice coil attached to a titanium diaphragm that is lightweight and rigid, for maximum efficiency and smooth high frequencies.
- Designed to fit in small spaces without any major modifications
- Titanium diaphragm for an accurate and detailed response
- Designed to add high output, high frequency response to any high output system
- The hidden terminal design and square 3”x3” faceplate make it easy to install on 2.80″ baffle cutouts. Screws included.
- Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response.
- Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 5,000 Hz
These tweeters also feature a precise dispersion pattern, giving you a wide soundstage and accurate imaging. With the TW350Ti-4 tweeters, you get beautiful, crystal clear sound that will make your music shine.
A square faceplate makes it easier to install, and the black face is framed by a strong aluminum horn, which offers a smooth response and extremely high efficiency, enabling it to cover a wide frequency range and offer a smooth response.
PRV Compact Car Audio Bullet Tweeters TW350TI-4 240 Watts 4 Ohm 3×3”- Easy to Mount Tweeters (Pair)
|Nominal impedance||4 Ohm|
|Nominal Power Handling*||60 Watts|
|Continuous Program Power(RMS)**||120 Watts|
|Max Peak Power***||240 Watts|
|Sensitivity 2.00V at 1m||105 dB|
|Recommended Hi Pass Crossover
For Full Power Handling
|5000 Hz 12db
Per Octave Crossover
|Frequency Response at -10dB||4,500 – 20,000 Hz|
|Voice Coil Diameter||1.0” (25 mm)|
|Voice Coil Wire||CCAW|
|Voice Coil Former Material||Kapton|
|Flux Density||1.30 T|
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.
|Overall Depth||2.28” (58 mm)|
|Mounting Depth||1.93” (49 mm)|
|Overall Width||3.03” (77 mm)|
|Overall Height||3.03” (77 mm)|
|Cutout Diameter||2.76” (70 mm)|
|Net Weight||1.0 lbs (0.45 kg)|
|Shipping Weight (pair)||2.55 lbs (1.1 kg)|
|Carton Dimensions W x L x H||6.89” x 3.35” x 2.75” (175 x 85 x 70 mm)|
