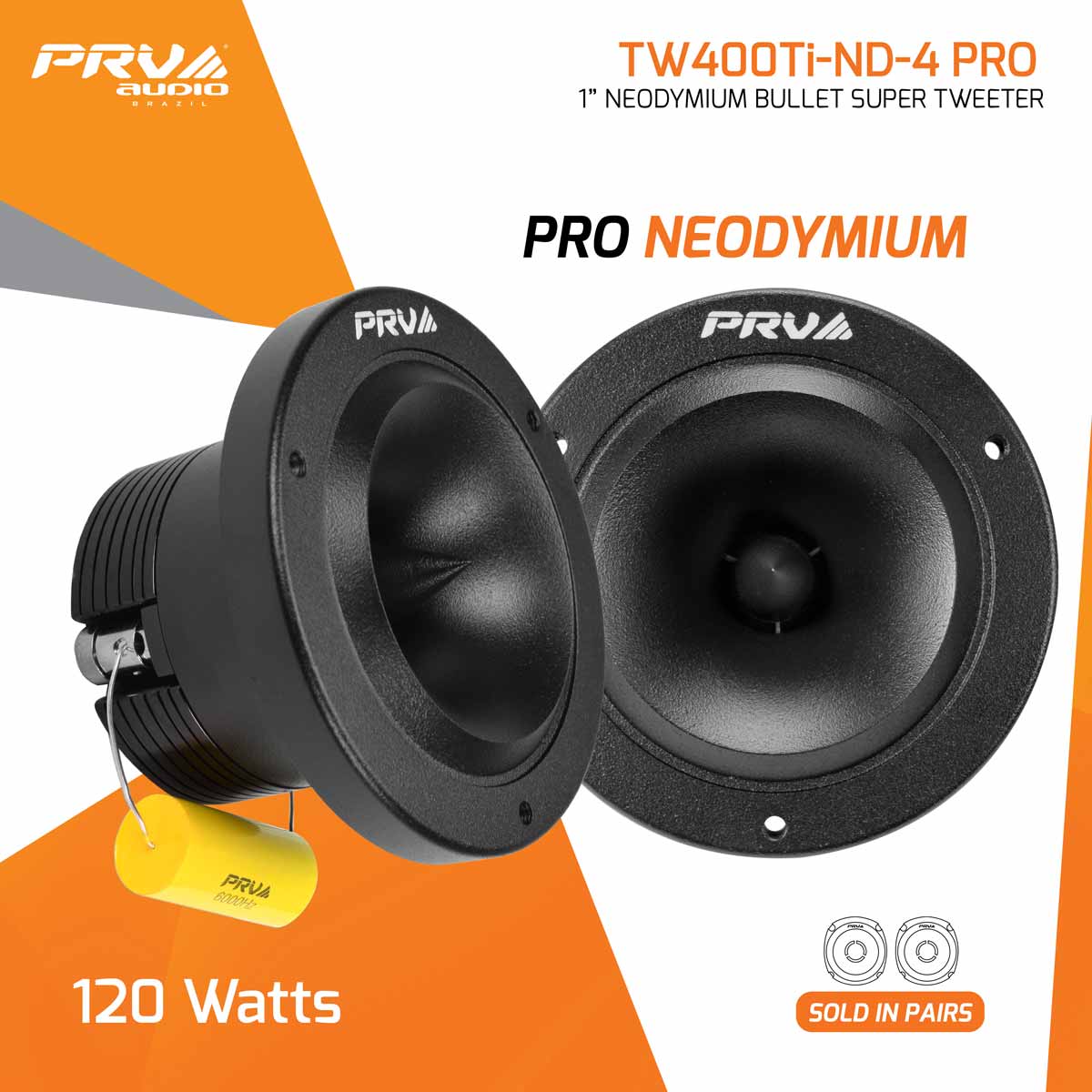

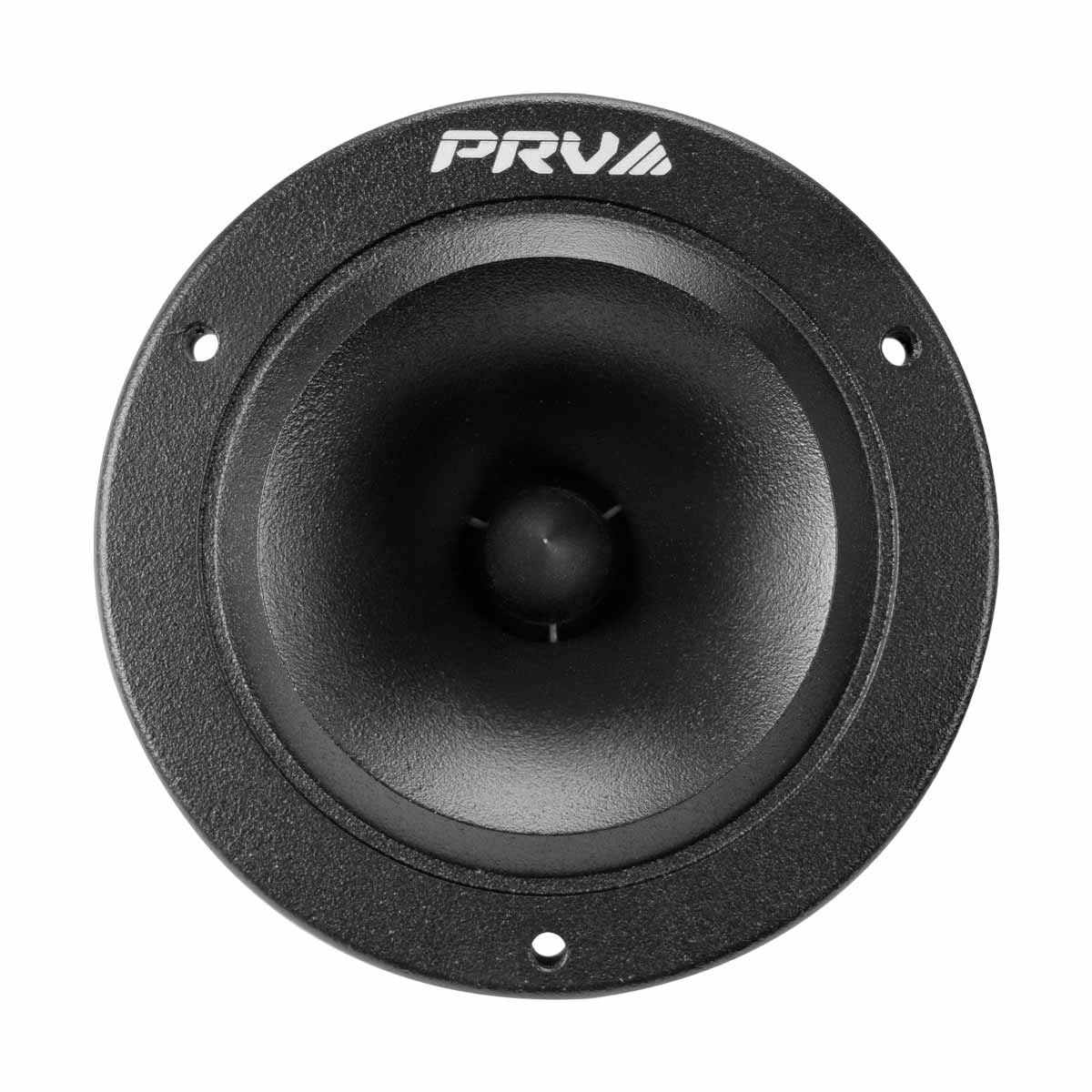

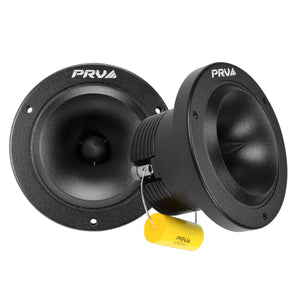

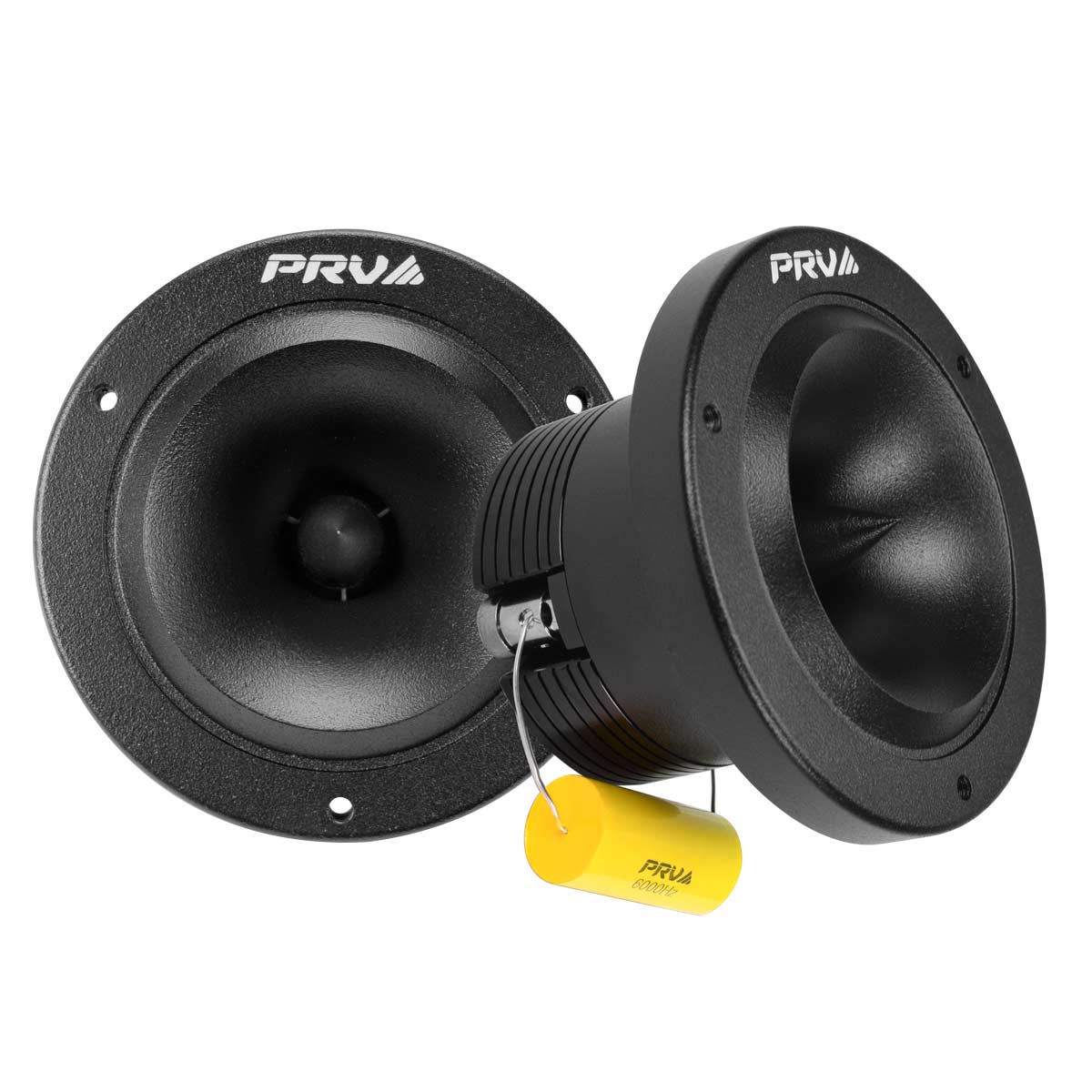

PRV Audio TW400Ti-Nd-4 PRO (PAIR) PRO Neodymium Tweeter
- Product Overview
PRO Audio 1″ Exit Neodymium Bullet Super Tweeter
The PRV Audio TW400Ti-Nd-4 PRO Super Tweeter offers a smooth response and extremely high efficiency from high mid range through high range frequencies. This compact tweeter is part of a wide family from the TW400Ti-Nd Series, featuring a strong neodymium motor which increases its efficiency and lowers its weight ans size dramatically without compromising any performance.
- Designed to fit in tight spaces without any major modifications
- Titanium diaphragm for an accurate and detailed response
- Designed to add high output, high frequency response to any interior system
- Hidden push terminal connection, takes less space on installation

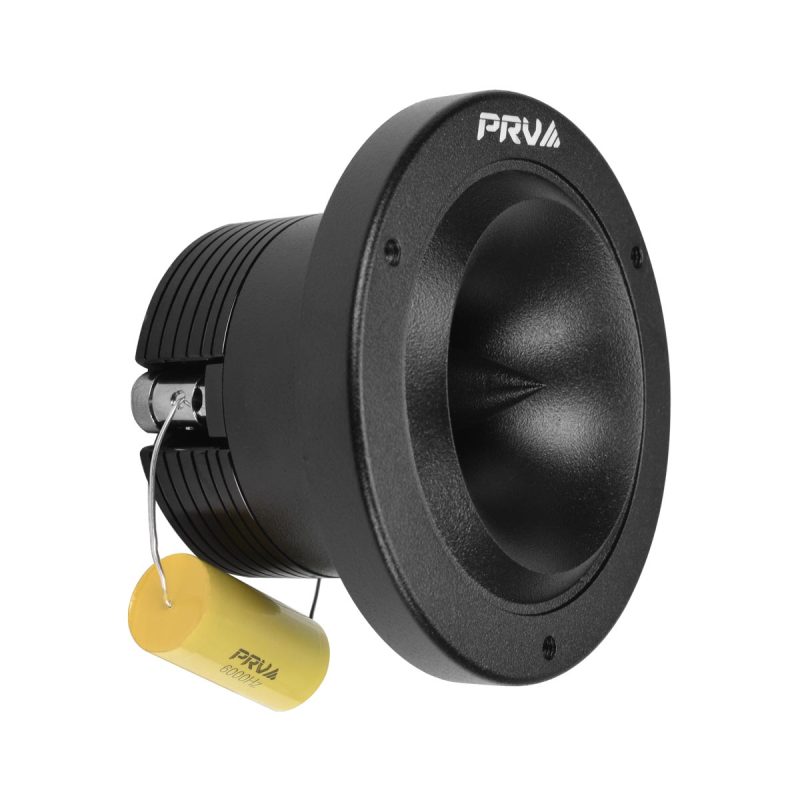

- Built-in capacitors act as a crossover and attenuates the low frequencies for smooth frequency response
- Able to take a ton of power! Up to 120 watts RMS of power handling are on tap with a 12 dB/octave crossover at 6,000 Hz
- Sold in Pairs
After several months of research and development, we were able to obtain a high level of output from this neodymium motor and an unique diaphragm design for the TW400Ti-Nd Series. Featuring a new concept, easy to replace diaphragm ( solderless ) makes a very easy task to fix your tweeter in few minutes.
Add detail to any speaker with PRV Audio’s TW400Ti-Nd-4 PRO 1″ exit titanium compact bullet super tweeter!
The titanium diaphragm combines with the durable, yet lightweight, Kapton™ voice coil former for sensitivity levels of up to 105 dB from 4,500 to 20,000 Hz.. The tweeter is perfect for Pro Audio On Wheels® applications.
|Nominal impedance||4 Ohms|
|Nominal Power Handling*||60 Watts|
|Continuous Program Power (RMS)**||120 Watts|
|Max Peak Power***||240 Watts|
|Sensitivity 2.00V at 1m||106 dB|
|Recommended High Pass Crossover
For Full Power Handling
|Frequency Response at -10dB||4,500 – 20,000Hz|
|Voice Coil Diameter||1.0″ (25 mm)|
|Voice Coil Wire||CCAW|
|Voice Coil Former Material||Kapton|

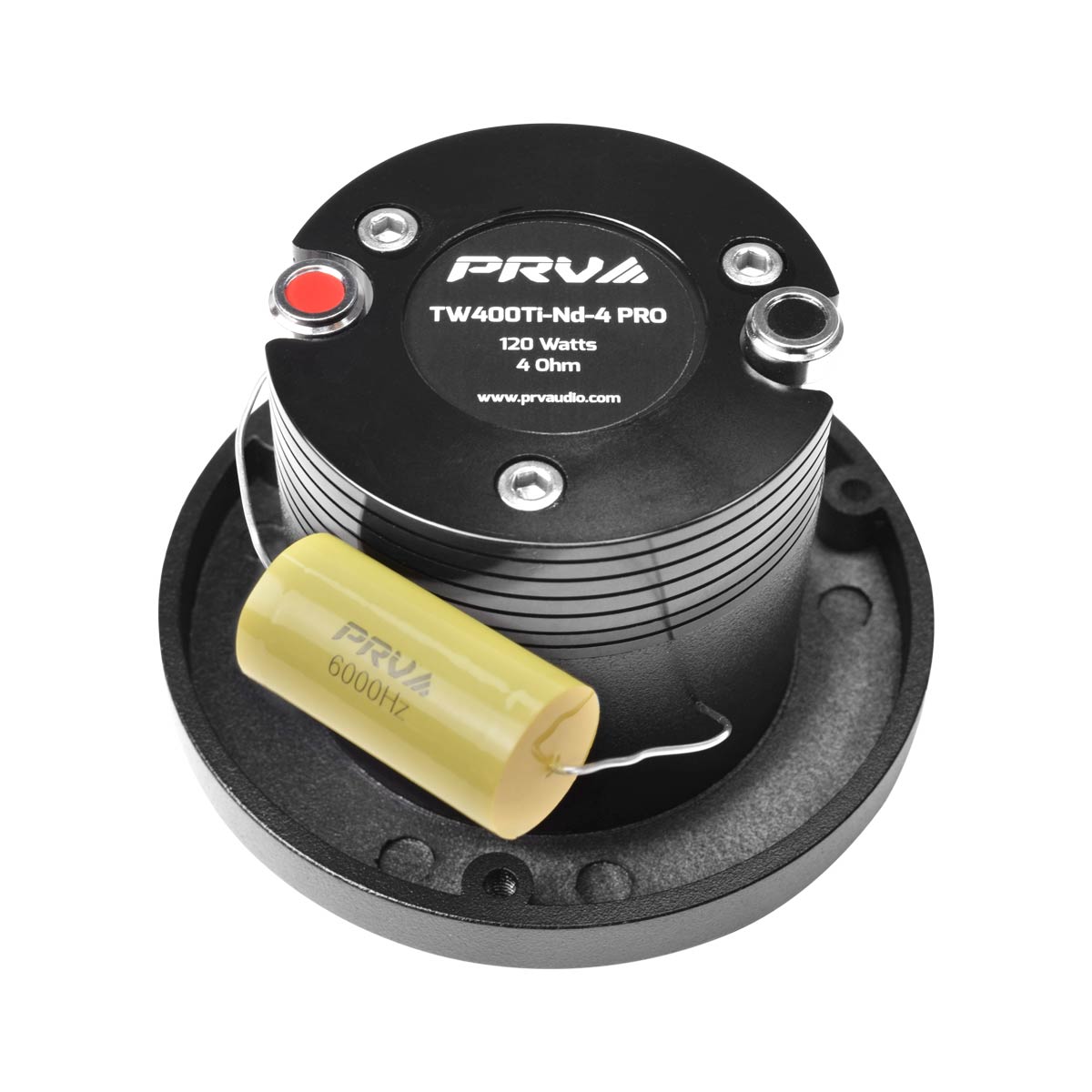

|Flux Density||1.45 T|
*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to avoid a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

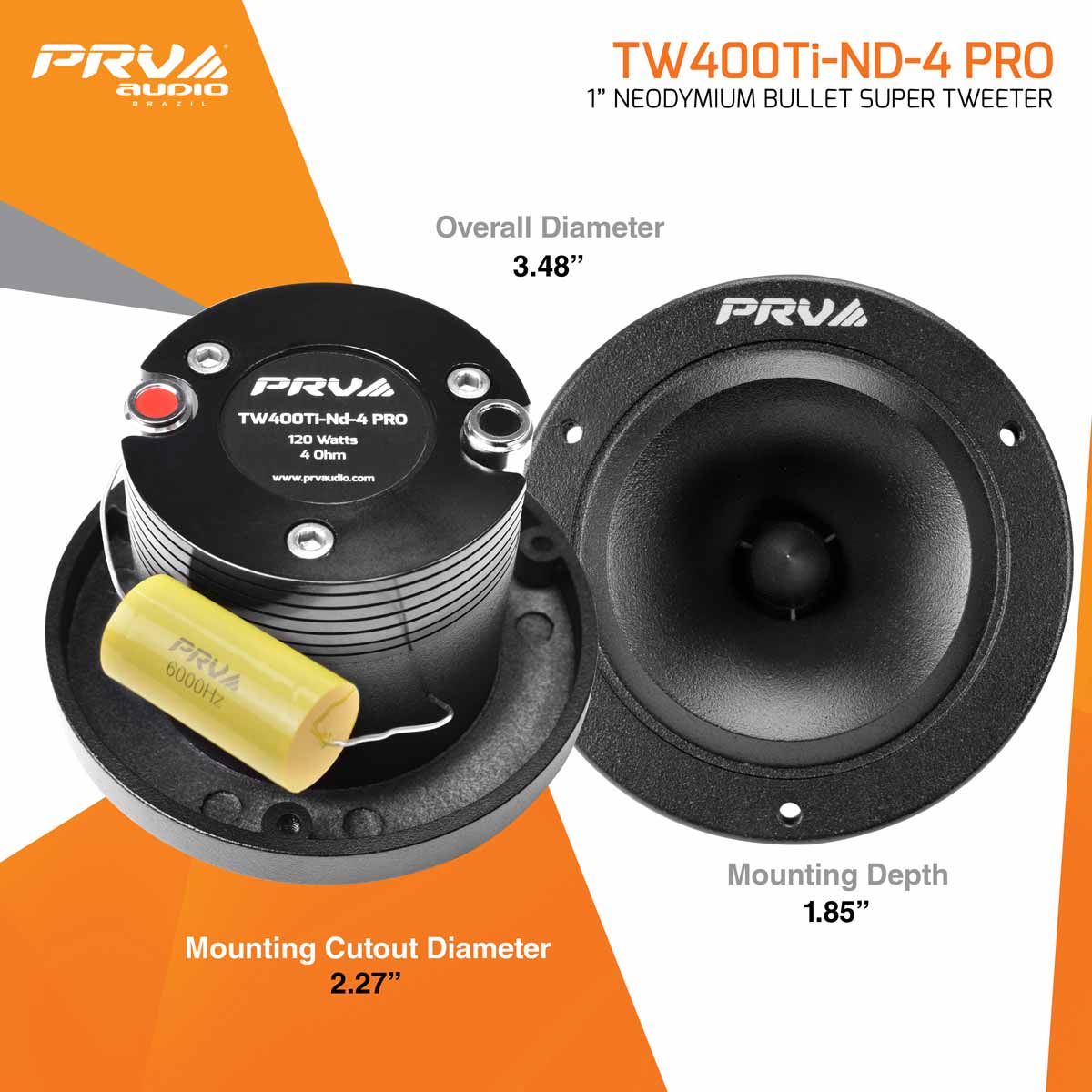

|Overall Depth||2.38″ (60.5 mm)|
|Mounting Depth||1.85″ (47.7 mm)|
|Overall Diameter||3.48″ (88.5 mm)|
|Cutout Diameter||2.27″ (57.7 mm)|
|Net Weight||0.88 lbs (0.40 kg)|
|Shipping Weight (pair)||1.98 lbs (0.9 kg)|
|Carton Dimensions W x L x H||7.95″ x 3.94″ x 2.76″
(202 x 100 x 70 mm)
