PRV AUDIO WG11-25 1" EXIT WAVEGUIDE

  • $3.91
    Unit price per
  • Save $0.98

Shipping calculated at checkout.

SHIPPING & DELIVERY INFORMATION
Apply For Financing

DESCRIPTION

Features

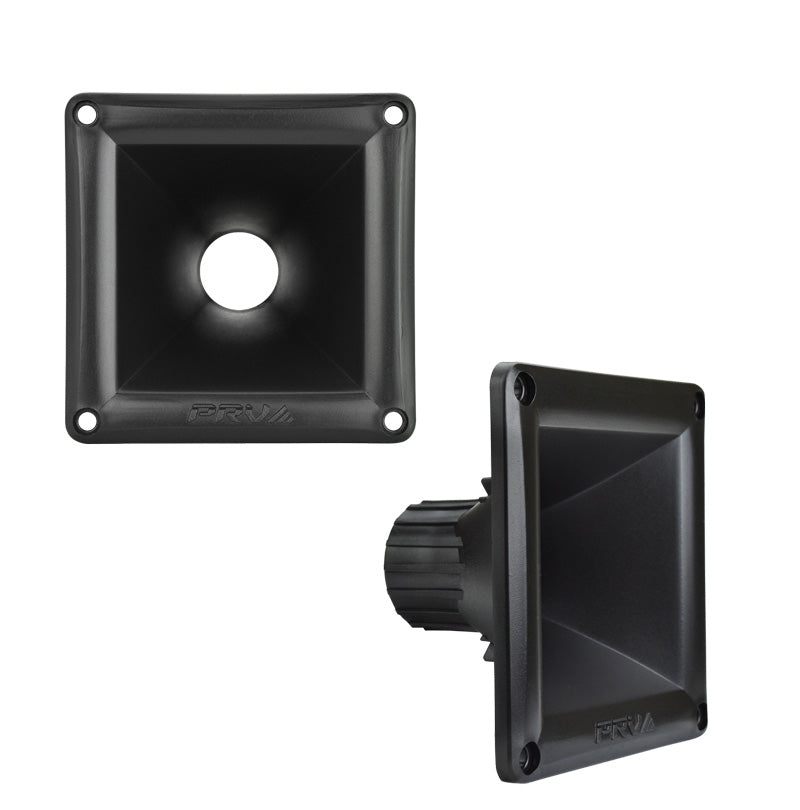

Screw-On compact PRV Audio’s WG11-25 exponential horn. At under 3″ of depth this horn makes installation easy in tight spaces.

A standard 1-3/8″-18 TPI Screw on mount is compatible with most 1″ compression drivers. The WG11-25 is constructed from non-resonant ABS plastic making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1200 Hz.


Highlights

  • Under 3″ of mounting depth for installation in tight spaces
  • 1″ Exit throat
  • Non-resonant reinforced plastic construction
  • Minimum recommended frequency of 1200 Hz

Technical Details


GENERAL SPECIFICATIONS

Throat Diameter 1” (25.4mm)
Mounting Type Screw-on
Thread dimensions 1-3/8″
Nominal Coverage
     Horizontal 60°
     Vertical 60°
Flare type Exponential
Material Plastic (ABS)
Finish / Coating White
Dimensions
     Height 4.5″ (115mm)
     Width 4.5″ (115mm)
     Depth 2.95″ (75mm)
     Mount Depth 2.71″ (69mm)
Baffle Cutout
     Width 3.31″ (84mm)
     Height 3.31″ (84mm)
Net weight 0.18lb (0.08kg)
