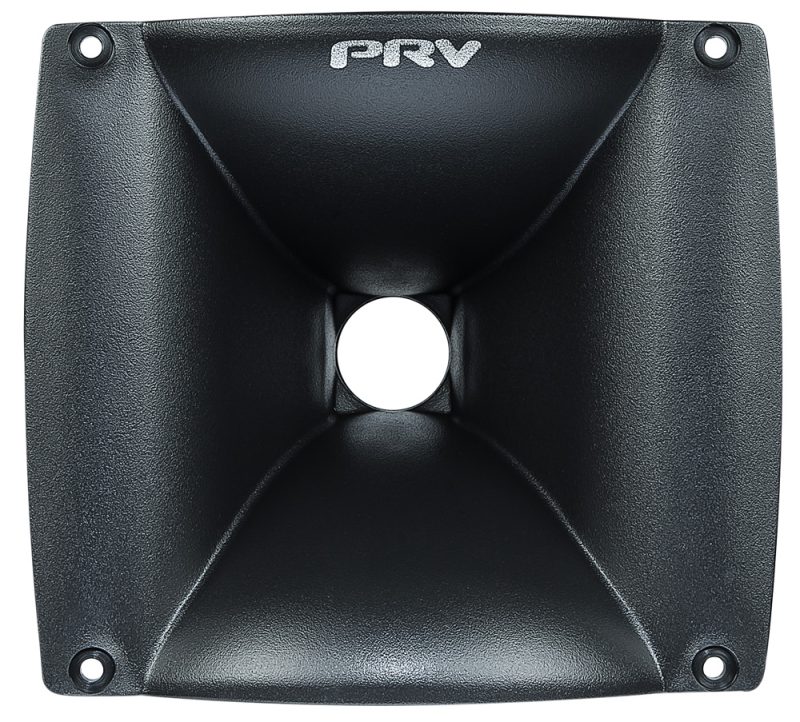

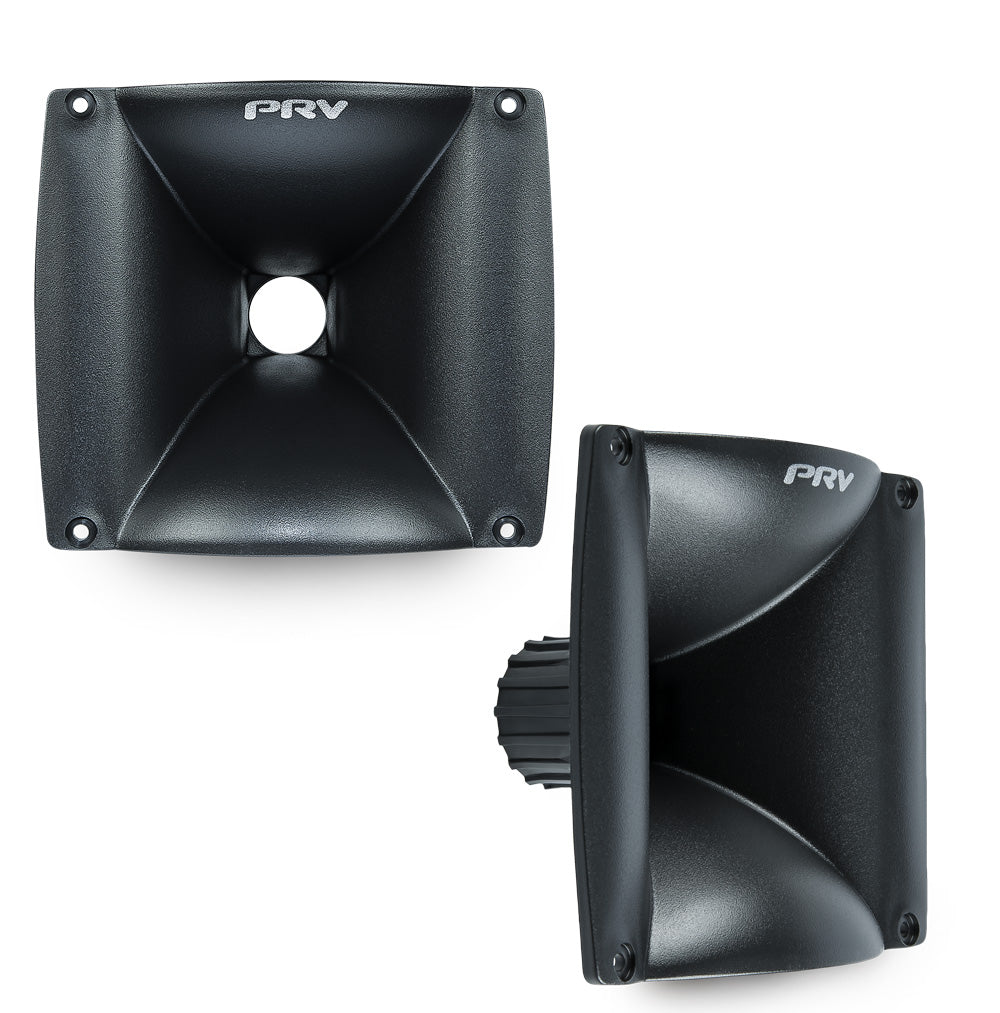

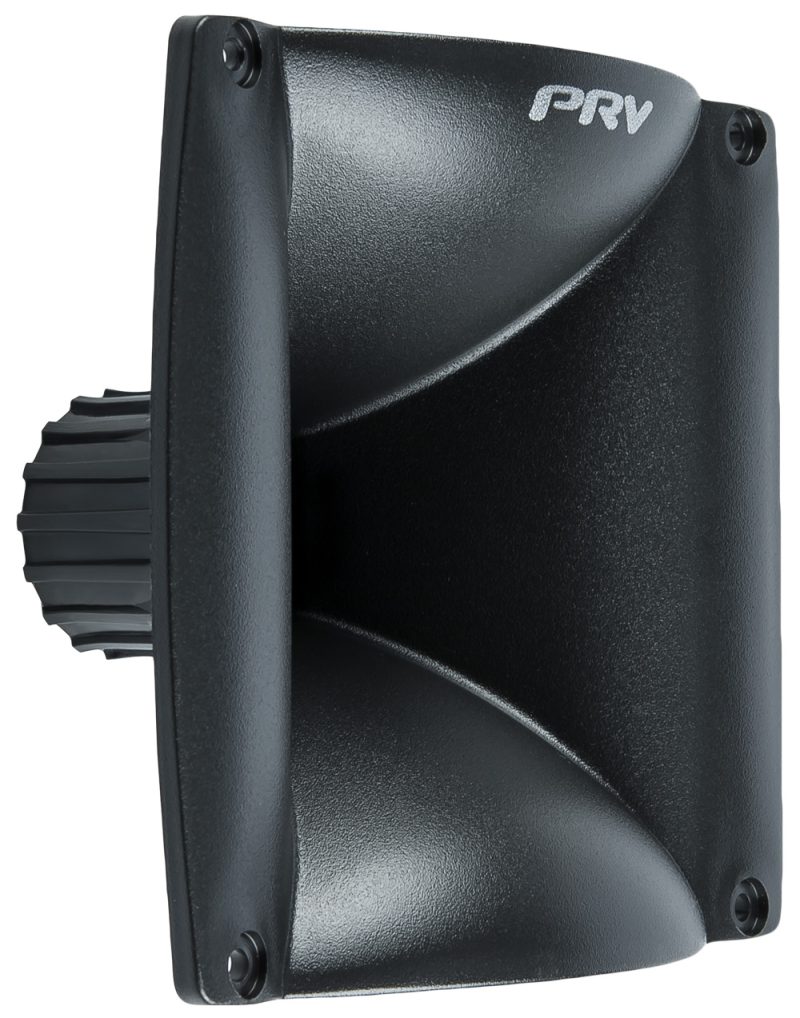

PRV AUDIO WG17-25 1" EXIT WAVEGUIDE
DESCRIPTION
- Product Overview
Product Overview
Features
1″ Exit – ABS Wave Guide – Screw-on
Highlights
- 1” Throat Diameter
- Screw-on
- 60° x 40° Nominal Coverage
Technical Details
GENERAL SPECIFICATIONS
| Throat Diameter | 1” (25.4mm) |
| Mounting Type | Screw-on |
| Thread dimensions | 1-3/8″ |
| Nominal Coverage | |
| Horizontal | 60° |
| Vertical | 40° |
| Flare type | Bi-radial |
| Material | Plastic (ABS) |
| Finish / Coating | Black |
| Dimensions | |
| Height | 5.57″ (141mm) |
| Width | 6.32″ (160mm) |
| Depth | 4.05″ (103mm) |
| Mount Depth | 3.18″ (81mm) |
| Baffle Cutout | |
| Width | 4.57″ (116mm) |
| Height | 5.11″ (130mm) |
| Net weight | 0.24lb (0.17kg) |
