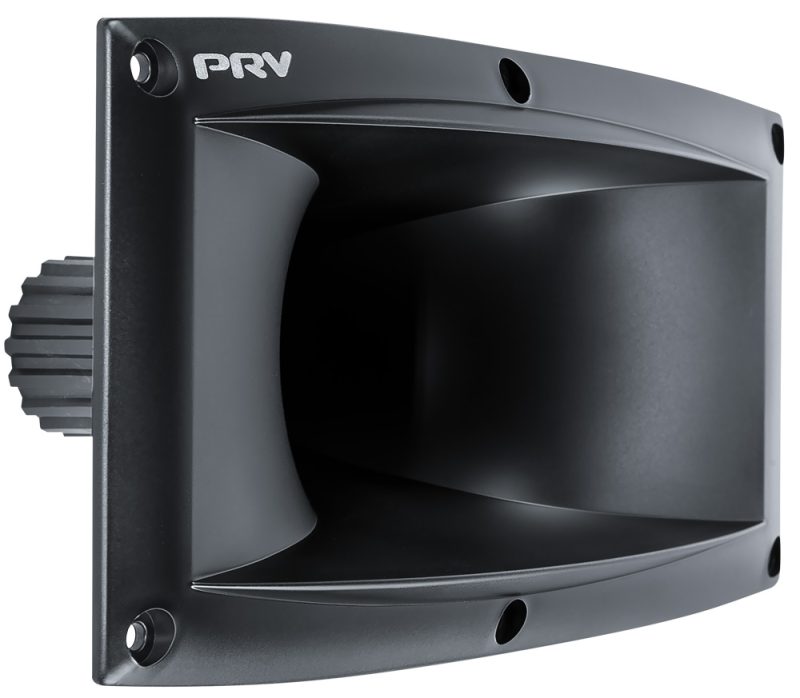

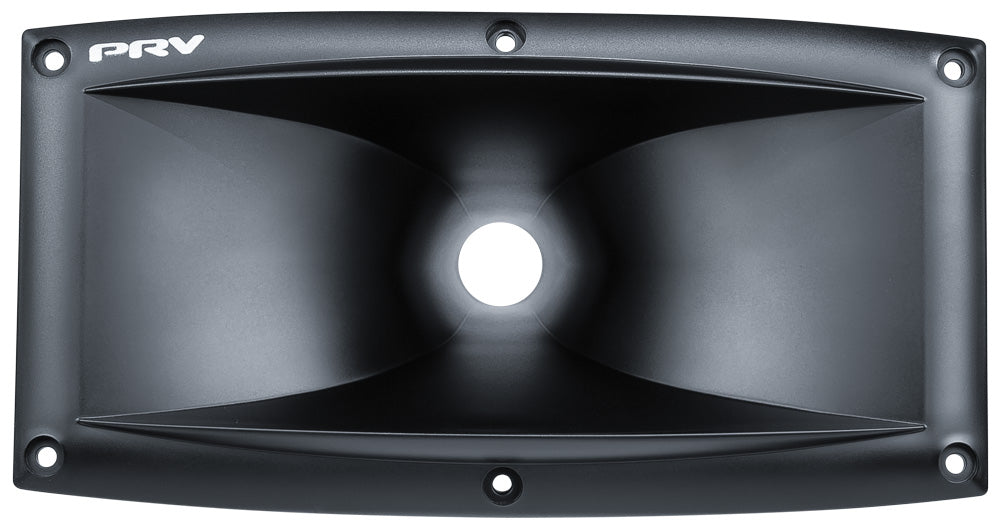

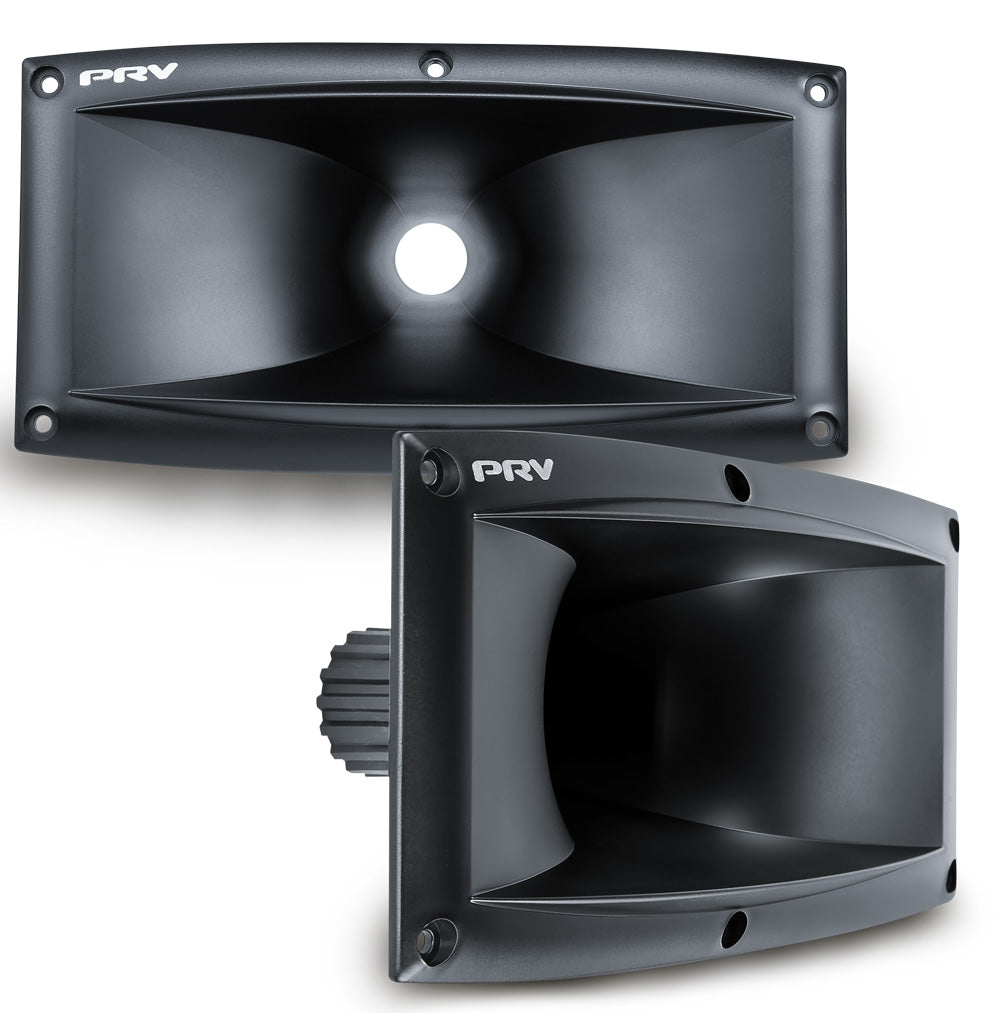

PRV AUDIO WG23-25 1" EXIT WAVEGUIDE
DESCRIPTION
- Product Overview
Product Overview
Features
1″ Exit – ABS Wave Guide – Screw-on
Highlights
-
- 1” Throat Diameter
- Screw-on
- Wide Horizontal dispersion
- 100° x 40° Nominal Coverage
Technical Details
GENERAL SPECIFICATIONS
| Throat Diameter | 1” (25.4mm) |
| Mounting Type | Screw-on |
| Thread dimensions | 1-3/8″ |
| Nominal Coverage | |
| Horizontal | 100° |
| Vertical | 40° |
| Flare type | Exponential |
| Material | Plastic (ABS) |
| Finish / Coating | Black |
| Dimensions | |
| Height | 10.0″ (254mm) |
| Width | 5.30″ (134mm) |
| Depth | 5.67″ (144mm) |
| Mount Depth | 4.84″ (123mm) |
| Baffle Cutout | |
| Width | 7.50″ (190mm) |
| Height | 3.50″ (89mm) |
| Net weight | 0.37lb (0.17kg) |
