DS18 PSW12.2D PS Shallow-Mount Water Resistant 12" Subwoofer 600 Watts Rms DVC 2-Ohm
- Product Overview
There’s always space for bass with the PSW12.2D!
The PSW12.2D mounts in depths as small as 3.9” and can be utilized in both ported and sealed boxes for great bass in a tight area. The high-quality push terminals on the PSW series subwoofers also make connection to your speaker wire and amp extremely easy.
This sub handles 600 W RMS and 1200 W MAX Power with a 85 dB sensitivity: high sensitivity for a shallow mount sub allowing this light subwoofer to reproduce heavy clear bass!
The PPI Molding on the cone used by the PSW12.2D is also water resistant, making this speaker perfect for your bike, off-road or marine vehicle. The steel basket gives this speaker even stronger resistance against shock and vibration.
This sub comes in 2 Ohms Dual Voice Coil configuration so if wired appropriately it’s insane power will bring all your music to life!
- DS18's PSW shallow subwoofer series are known for producing great bass without sacrificing much space.
- Rubber surround design fortifies this subwoofer and helps it push out cleaner and clearer bass
- Shallow mount size allows this sub to fit in compact places and requires less box space than other subs.
- High 9.5mm Xmax which produces full and deep bass with the correct box spec.
- Car Audio
- Bike Audio
- Marine Audio
- Off-Road Audio
- Powersports Audio
|Nominal Diameter||12” / 304.8 mm|
|Nominal Impedance||2+2 Ohms|
|RMS Power Handling||600 W|
|MAX Power Handling||1200 W|
|Sensitivity (1w/1m)||85 dB|
|Frequency Response||20 - 600 Hz|
|Recommended Lo Pass Crossover||80 Hz|
|Voice Coil Diameter||3" / 76.2 mm|
|Voice Coil Former Material||Aluminum|
|Cone Material||Water Resistant PPI|
|Basket Color/Finish||Matt Black|
|Magnet Weight||68 Oz|
|Displacement Volume||0.95L / 0.033ft3|
|Sealed Internal Volume||28L / 1ft3|
|Sealed Box Output Response||40 Hz|

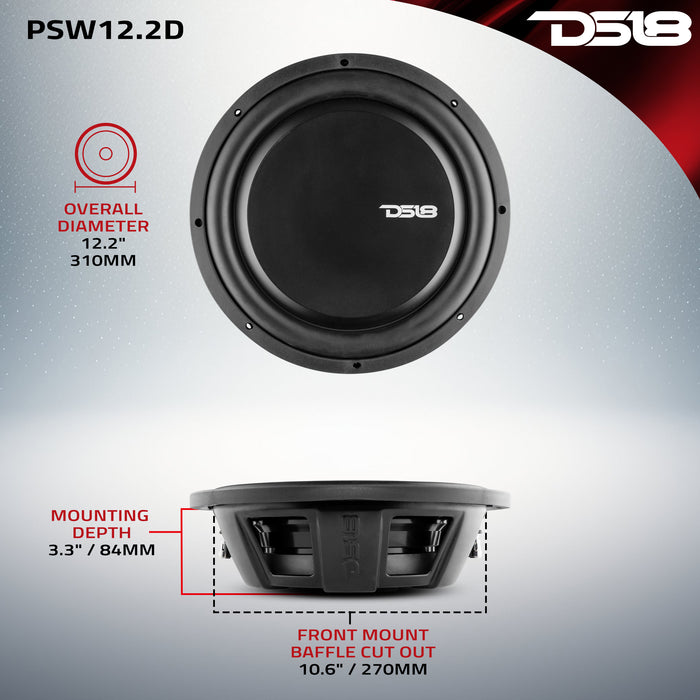

|Overall Diameter||12.2" / 310 mm|
|Overall Depth||3.9" / 100 mm|
|Front Mount Baffle Cutout||10.6" / 270 mm|
|Mounting Depth||3.3" / 84 mm|
|Motor Diameter||8" / 203 mm|
