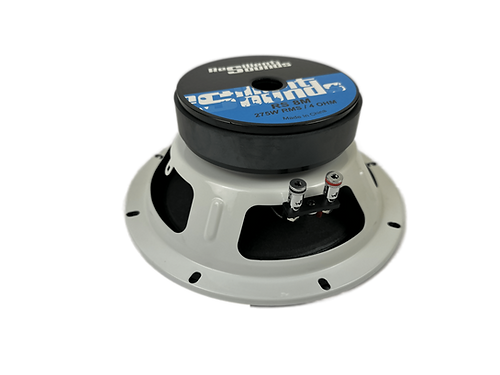

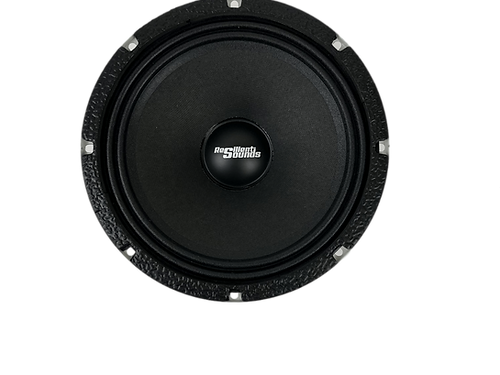

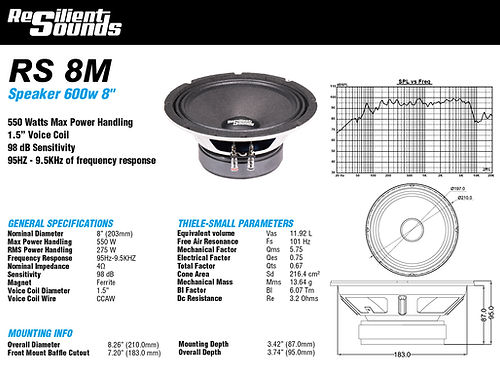

RS 8M
550 Watts Max Power Handling
1.5" Voice Coil
98 dB Sensitivity
95HZ-9.5KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 8” (203mm)
Max Power Handling 550 w
RMS Power Handling 275 w
Frequency Response 95Hz-9.5KHZ
Nominal Impedance 4ohm
Sensitivity 98 dB
Magnet Ferrite
Voice Coil Diameter 1.5"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 11.92 L
Free Air Resonance Fs 101 Hz
Mechanical Factor Qms 5.75
Electrical Factor Qes 0.75
Total Factor Qts 0.67
Cone Area Sd 216.4cm²
Mechanical Mass Mms 13.64 g
BI Factor BI 6.07 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 8.26”(210mm)
Front Mount Baffle Cutout 7.2"(183mm)
Mounting Depth 3.42"(87mm)
Overall Depth 3.74"(95mm)
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1-3 businesses day. |
Description
RS 8M
550 Watts Max Power Handling
1.5" Voice Coil
98 dB Sensitivity
95HZ-9.5KHz of frequency response
GENERAL SPECIFICATIONS
Nominal Diameter 8” (203mm)
Max Power Handling 550 w
RMS Power Handling 275 w
Frequency Response 95Hz-9.5KHZ
Nominal Impedance 4ohm
Sensitivity 98 dB
Magnet Ferrite
Voice Coil Diameter 1.5"
Voice Coil Wire CCAW
THIELE-SMALL PARAMETERS
Equivalent Volume Vas 11.92 L
Free Air Resonance Fs 101 Hz
Mechanical Factor Qms 5.75
Electrical Factor Qes 0.75
Total Factor Qts 0.67
Cone Area Sd 216.4cm²
Mechanical Mass Mms 13.64 g
BI Factor BI 6.07 Tm
Dc Resistance Re 3.2 Ohms
MOUNTING INFO
Overall Diameter 8.26”(210mm)
Front Mount Baffle Cutout 7.2"(183mm)
Mounting Depth 3.42"(87mm)
Overall Depth 3.74"(95mm)
