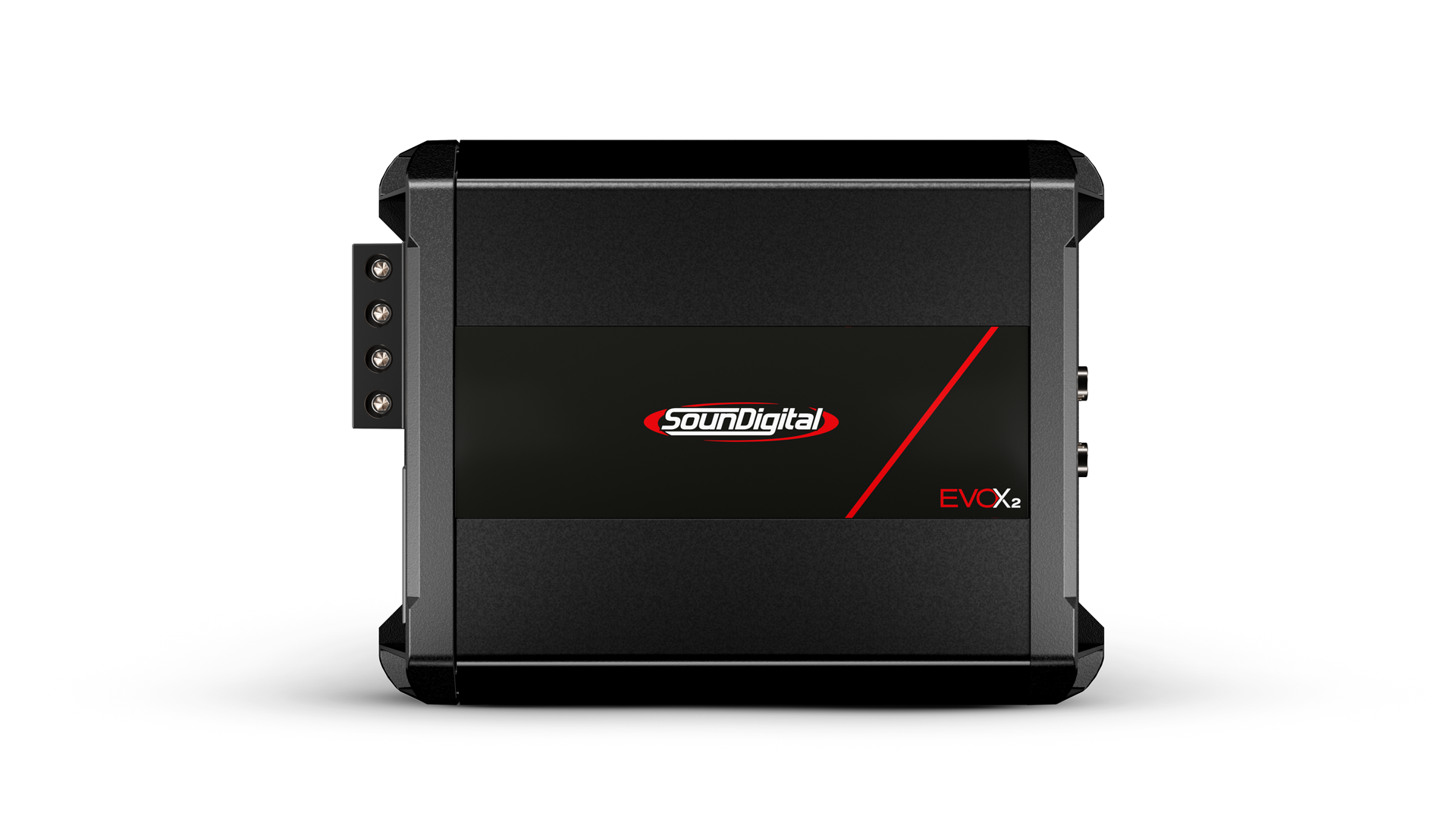

SounDigital 1200.4 EVOX2 4 Channel

  • $749.99
    Unit price per
  • Save $250

Shipping calculated at checkout.

Apply For Financing

DESCRIPTION



TECHNICAL SPECIFICATIONS

1200.4 EVOX2 – 2Ω
Power @ 12.6V @ 4Ω: 4 X 130 WRMS
Power @ 12.6V @ 2Ω: 4 X 198 WRMS
Power @ 12.6V @ 1Ω: 4 X 300 WRMS
Bridge Power @ 12.6V @ 4Ω: 2 X 396 WRMS
Bridge Power @ 12.6V @ 2Ω: 2 X 600 WRMS
Power @ 14.4V @ 4Ω: 4 X 145 WRMS
Power @ 14.4V @ 2Ω: 4 X 221 WRMS
Power @ 14.4V @ 1Ω: 4 X 335 WRMS
Bridge Power @ 14.4V @ 4Ω: 2 X 442 WRMS
Bridge Power @ 14.4V @ 2Ω: 2 X 669 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 57 A
Current Draw (Max): 113 A
Recommended Fuse (Music): 70 A
Total Efficiency: 84%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 91dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.2 x 5.4 x 2.2 in

1200.4 EVOX2 – 4Ω
Power @ 12.6V @ 4Ω: 4 X 198 WRMS
Power @ 12.6V @ 2Ω: 4 X 300 WRMS
Power @ 12.6V @ 1Ω: N/A
Bridge Power @ 12.6V @ 4Ω: 2 X 600 WRMS
Bridge Power @ 12.6V @ 2Ω: N/A
Power @ 14.4V @ 4Ω: 4 X 221 WRMS
Power @ 14.4V @ 2Ω: 4 X 335 WRMS
Power @ 14.4V @ 1Ω: N/A
Bridge Power @ 14.4V @ 4Ω: 2 X 669 WRMS
Bridge Power @ 14.4V @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 58 A
Current Draw (Max): 116 A
Recommended Fuse (Music): 70 A
Total Efficiency: 82%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 91dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.2 x 5.4 x 2.2 in
