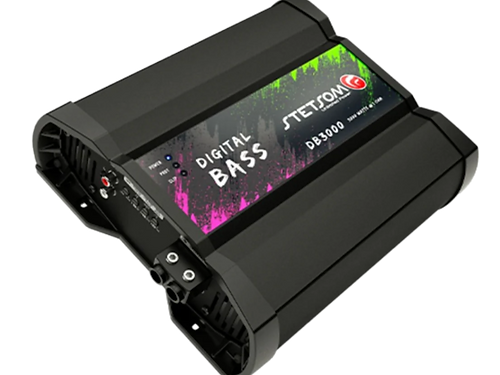

The DIGITAL BASS line was developed for automotive sound lovers looking for maximum performance at low frequencies.
Its 5Hz to 250Hz frequência frequency response delivers quality and definition of lower frequencies, delivering powerful and intense bass.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | DB3000 – 1 OHM |
|---|---|
| Number of Channels | 1 |
| RMS Power at 1 Ohm 12.6V | 3100W |
| RMS Power at 2 Ohm 12.6V | 2000W |
| RMS Power at 1 Ohm 14.4V | 3950W |
| RMS Power at 2 Ohm 14.4V | 2600W |
| Supply Voltage | 9V ~16V |
| Frequency Response | 5Hz ~ 250Hz |
| Crossover Low Pass | 35Hz ~ 250Hz |
| Crossover High Pass | 5Hz ~ 35Hz (Subsonic) |
| Signal to Noise | >90dB |
| Input Sensitivity | 200mV |
| Input Impedance | 20K Ohms |
| Consumption with Signal Musical | 169A |
| Consumption with Signal Bass | 338A |
| Dimensions (H x W x D) mm | 78 x 231,5 x 276 |
| Weight Kg | 3.1 Kg |
ECHNICAL SPECIFICATIONS
| CHARACTERISTICS | BRAVO HQ800.4 – 2 OHMS |
|---|---|
| Number of Channels | 4 |
| RMS Power | 800W |
| RMS Power at 2 Ohm 12.6V | 4 x 200W |
| RMS Power at 4 Ohm 12.6V | 4 x 130W |
| RMS Power at 2 Ohm 14.4V | 4 x 250W |
| RMS Power at 4 Ohm 14.4V | 4 x 170W |
| Power @ 12.6V Bridge 4 Ohms | 2 x 400W |
| Supply Voltage | 9V ~17V DC |
| Frequency Response | 5Hz ~22Khz |
| Crossover Low Pass | 50Hz ~2,3K (Variable) |
| Crossover High Pass | 50Hz ~2,3K (Variable) |
| Signal to Noise | >80dB |
| Input Sensitivity | RCA: 250mV / HIGH: 1,5V |
| Input Impedance | RCA: 18K Ohms / HIGH: 1K Ohms |
| Consumption with Signal Musical | 43A |
| Consumption with Signal Bass | 86A |
| Dimensions (H x W x D) mm | 58,5 x 167 x 235,5 mm |
| Weight Kg | 1,5 Kg |
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
Description
The DIGITAL BASS line was developed for automotive sound lovers looking for maximum performance at low frequencies.
Its 5Hz to 250Hz frequência frequency response delivers quality and definition of lower frequencies, delivering powerful and intense bass.
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | DB3000 – 1 OHM |
|---|---|
| Number of Channels | 1 |
| RMS Power at 1 Ohm 12.6V | 3100W |
| RMS Power at 2 Ohm 12.6V | 2000W |
| RMS Power at 1 Ohm 14.4V | 3950W |
| RMS Power at 2 Ohm 14.4V | 2600W |
| Supply Voltage | 9V ~16V |
| Frequency Response | 5Hz ~ 250Hz |
| Crossover Low Pass | 35Hz ~ 250Hz |
| Crossover High Pass | 5Hz ~ 35Hz (Subsonic) |
| Signal to Noise | >90dB |
| Input Sensitivity | 200mV |
| Input Impedance | 20K Ohms |
| Consumption with Signal Musical | 169A |
| Consumption with Signal Bass | 338A |
| Dimensions (H x W x D) mm | 78 x 231,5 x 276 |
| Weight Kg | 3.1 Kg |
ECHNICAL SPECIFICATIONS
| CHARACTERISTICS | BRAVO HQ800.4 – 2 OHMS |
|---|---|
| Number of Channels | 4 |
| RMS Power | 800W |
| RMS Power at 2 Ohm 12.6V | 4 x 200W |
| RMS Power at 4 Ohm 12.6V | 4 x 130W |
| RMS Power at 2 Ohm 14.4V | 4 x 250W |
| RMS Power at 4 Ohm 14.4V | 4 x 170W |
| Power @ 12.6V Bridge 4 Ohms | 2 x 400W |
| Supply Voltage | 9V ~17V DC |
| Frequency Response | 5Hz ~22Khz |
| Crossover Low Pass | 50Hz ~2,3K (Variable) |
| Crossover High Pass | 50Hz ~2,3K (Variable) |
| Signal to Noise | >80dB |
| Input Sensitivity | RCA: 250mV / HIGH: 1,5V |
| Input Impedance | RCA: 18K Ohms / HIGH: 1K Ohms |
| Consumption with Signal Musical | 43A |
| Consumption with Signal Bass | 86A |
| Dimensions (H x W x D) mm | 58,5 x 167 x 235,5 mm |
| Weight Kg | 1,5 Kg |
Shipping
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
REVIEW
Plan the power behind your amplifier.

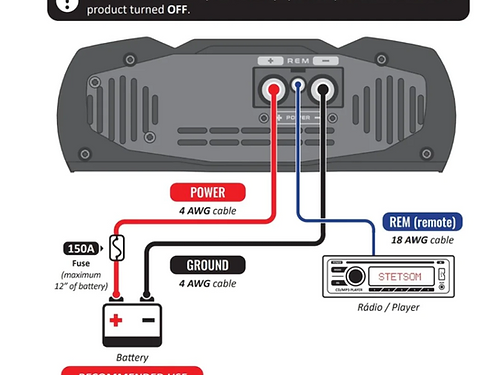

Amplifiers need the right subwoofer or speaker load, power wire, fusing, ground, and electrical support. Confirm the full system before ordering high-output gear.
