TECHNICAL SPECIFICATIONS

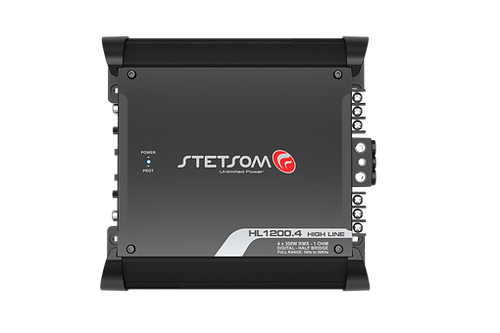

| CHARACTERISTICS | HL1200.4 – 1 OHM |
|---|---|
| Number of Channels | 4 |
| RMS Power at 1 Ohm 12.6V | 4 x 300W RMS |
| RMS Power at 2 Ohm 12.6V | 4 x 200W RMS |
| RMS Power at 1 Ohm 13.8V | 4 x 350W RMS |
| RMS Power at 2 Ohm 13.8V | 4 x 260W RMS |
| Power @ 12.6V Bridge 2 Ohms | 2 x 600W RMS |
| Power @ 13.8V Bridge 2 Ohms | 2 x 700W RMS |
| Supply Voltage | 9V ~15V DC |
| Frequency Response | 10Hz ~ 26KHz |
| Crossover Low Pass | 90Hz |
| Crossover High Pass | 90Hz |
| Signal to Noise | >90 dB |
| Harmonic Distortion | <0,3% THD |
| Input Sensitivity | 200mV |
| Input Impedance | 14K Ohms |
| Impedance Output | STEREO: 1 OHM / BRIDGE: 2 OHMS |
| Consumption with Signal Musical | 57A |
| Consumption with Signal Bass | 114A |
| Dimensions (H x W x D) mm | 66 x 206 x 216 mm |
| Weight Kg | 1,94 Kg |
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | HL800.4 – 2 OHMS |
|---|---|
| Number of Channels | 4 |
| RMS Power at 2 Ohm 12.6V | 4 x 225W RMS (STEREO) |
| RMS Power at 4 Ohm 12.6V | 4 x 140W RMS (STEREO) |
| RMS Power at 2 Ohm 13.8V | 4 x 260W RMS (STEREO) |
| RMS Power at 4 Ohm 13.8V | 4 x 165W RMS (STEREO) |
| Power @ 12.6V Bridge 4 Ohms | 2 x 450W RMS |
| Power @ 13.8V Bridge 4 Ohms | 2 x 520W RMS |
| Supply Voltage | 9V ~ 15V DC |
| Frequency Response | 10Hz ~26KHz |
| Crossover Low Pass | 90Hz |
| Crossover High Pass | 90Hz |
| Signal to Noise | >90 dB |
| Harmonic Distortion | >0,4 % THD |
| Input Sensitivity | 200mV |
| Input Impedance | 14K OHMS |
| Impedance Output | STEREO 2 OHMS / STEREO 4 OHMS |
| Consumption with Signal Musical | 44A |
| Consumption with Signal Bass | 88A |
| Dimensions (H x W x D) mm | 66 x 206 x 206 mm |
| Weight Kg | 1,7 Kg |
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
Have questions before you order?
If you need help confirming fitment, power needs, or the right supporting gear for your build,
contact Droppin HZ and we’ll help point you in the right direction.
Description
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | HL1200.4 – 1 OHM |
|---|---|
| Number of Channels | 4 |
| RMS Power at 1 Ohm 12.6V | 4 x 300W RMS |
| RMS Power at 2 Ohm 12.6V | 4 x 200W RMS |
| RMS Power at 1 Ohm 13.8V | 4 x 350W RMS |
| RMS Power at 2 Ohm 13.8V | 4 x 260W RMS |
| Power @ 12.6V Bridge 2 Ohms | 2 x 600W RMS |
| Power @ 13.8V Bridge 2 Ohms | 2 x 700W RMS |
| Supply Voltage | 9V ~15V DC |
| Frequency Response | 10Hz ~ 26KHz |
| Crossover Low Pass | 90Hz |
| Crossover High Pass | 90Hz |
| Signal to Noise | >90 dB |
| Harmonic Distortion | <0,3% THD |
| Input Sensitivity | 200mV |
| Input Impedance | 14K Ohms |
| Impedance Output | STEREO: 1 OHM / BRIDGE: 2 OHMS |
| Consumption with Signal Musical | 57A |
| Consumption with Signal Bass | 114A |
| Dimensions (H x W x D) mm | 66 x 206 x 216 mm |
| Weight Kg | 1,94 Kg |
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | HL800.4 – 2 OHMS |
|---|---|
| Number of Channels | 4 |
| RMS Power at 2 Ohm 12.6V | 4 x 225W RMS (STEREO) |
| RMS Power at 4 Ohm 12.6V | 4 x 140W RMS (STEREO) |
| RMS Power at 2 Ohm 13.8V | 4 x 260W RMS (STEREO) |
| RMS Power at 4 Ohm 13.8V | 4 x 165W RMS (STEREO) |
| Power @ 12.6V Bridge 4 Ohms | 2 x 450W RMS |
| Power @ 13.8V Bridge 4 Ohms | 2 x 520W RMS |
| Supply Voltage | 9V ~ 15V DC |
| Frequency Response | 10Hz ~26KHz |
| Crossover Low Pass | 90Hz |
| Crossover High Pass | 90Hz |
| Signal to Noise | >90 dB |
| Harmonic Distortion | >0,4 % THD |
| Input Sensitivity | 200mV |
| Input Impedance | 14K OHMS |
| Impedance Output | STEREO 2 OHMS / STEREO 4 OHMS |
| Consumption with Signal Musical | 44A |
| Consumption with Signal Bass | 88A |
| Dimensions (H x W x D) mm | 66 x 206 x 206 mm |
| Weight Kg | 1,7 Kg |
