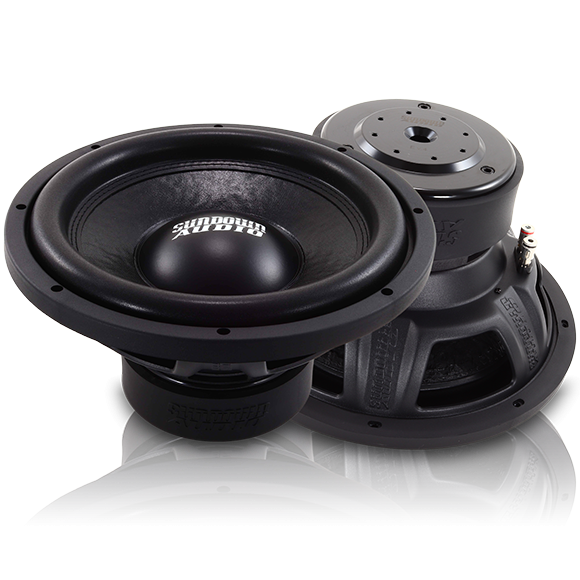

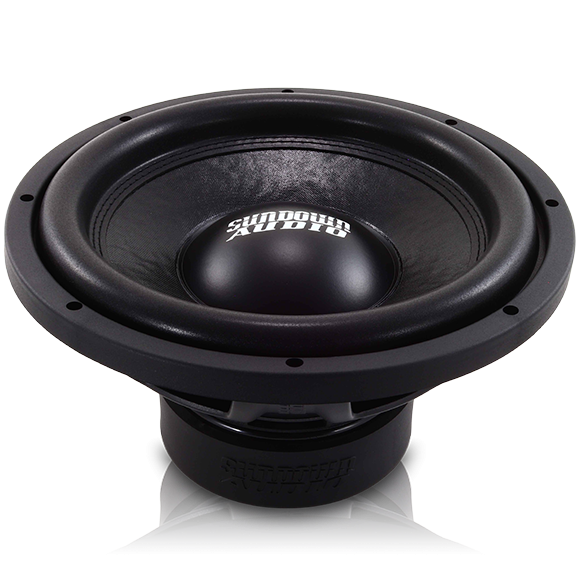

The fourth version of our acclaimed E series has been refreshed for 2020. Since we introduced the first E series in 2012 we have sought to push the limits of entry-level woofers forward. Typical entry level woofers are highly limited in terms of linear excursion, mechanical ruggedness, and thermal performance – all of these bars have been raised once again for our fourth generation E series. The v.4 update is a minor refresh from the v.3 featuring a new custom-tooled, stronger stamped steel frame and a upgrade to our directional forced-air cooling spacer.
A double stacked magnet structure and an extremely long voice coil allow us to achieve a class-leading linear x-max of 14mm one-way in addition to high mechanical clearances (over 2” peak-to-peak before physical coil bottom). The E v.4 series has been upgraded to a full 2.5” diameter coil (this started with the v.3) compared to the 2” coil of previous generations (v.1 and v.2). The tinsel leads have been upgraded to a new “Mini-XL” lead containing 63-strands of conductor (a full XL is 84-strands and previous leads contained 42-strands) to help prevent potential failure due to amplifier clipping. The spider itself is a high-strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame.
Bottom-line; if you are looking for a great subwoofer option and do not want to break the bank the Sundown E-Series woofers are for you & these are the best E series made to date. They are ideal for anyone from beginners to seasoned professionals seeking industry leading performance at a value price point.
-
Specifications
-
T/S SPECS E V.4 12" D2 E V.4 12" D4 RE (Ohms) 4.030 6.130 FS (Hz) 28.480 28.373 VAS (L) 53.059 54.292 Qes 0.509 0.570 Qms 5.249 3.542 Qts 0.464 0.491 BL (NA) 17.576 20.249 Mms (Grams) 217.987 213.033 Cms (mm/N) 143.258 146.589 Sens (dB @ 1w/1m) 85.7 85.3
Enclosure Specifications
E-8 v.6 E-10 v.4 E-12 v.4 E-15 v.4 Sealed Enclosure N/A N/A N/A N/A Ported Enclosure 0.65 cu ft 1.0 cu ft 1.75 cu ft 3.0 cu ft Recommended Tuning 35hz 35hz 35hz 35hz Recommended Port Area 9 sq in 15 sq in 26 sq in 44 sq in Displacement 0.07 cu ft 0.11 cu ft 0.12 cu ft 0.14 cu ft Depth 4.98" 5.625" 6.50" 7.25" Outside Diam. 8.500” 10.000" 12.250" 15.125" Cutout 7.250” 8.875" 11.125" 13.875" -
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
Description
The fourth version of our acclaimed E series has been refreshed for 2020. Since we introduced the first E series in 2012 we have sought to push the limits of entry-level woofers forward. Typical entry level woofers are highly limited in terms of linear excursion, mechanical ruggedness, and thermal performance – all of these bars have been raised once again for our fourth generation E series. The v.4 update is a minor refresh from the v.3 featuring a new custom-tooled, stronger stamped steel frame and a upgrade to our directional forced-air cooling spacer.
A double stacked magnet structure and an extremely long voice coil allow us to achieve a class-leading linear x-max of 14mm one-way in addition to high mechanical clearances (over 2” peak-to-peak before physical coil bottom). The E v.4 series has been upgraded to a full 2.5” diameter coil (this started with the v.3) compared to the 2” coil of previous generations (v.1 and v.2). The tinsel leads have been upgraded to a new “Mini-XL” lead containing 63-strands of conductor (a full XL is 84-strands and previous leads contained 42-strands) to help prevent potential failure due to amplifier clipping. The spider itself is a high-strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame.
Bottom-line; if you are looking for a great subwoofer option and do not want to break the bank the Sundown E-Series woofers are for you & these are the best E series made to date. They are ideal for anyone from beginners to seasoned professionals seeking industry leading performance at a value price point.
-
Specifications
-
T/S SPECS E V.4 12" D2 E V.4 12" D4 RE (Ohms) 4.030 6.130 FS (Hz) 28.480 28.373 VAS (L) 53.059 54.292 Qes 0.509 0.570 Qms 5.249 3.542 Qts 0.464 0.491 BL (NA) 17.576 20.249 Mms (Grams) 217.987 213.033 Cms (mm/N) 143.258 146.589 Sens (dB @ 1w/1m) 85.7 85.3
Enclosure Specifications
E-8 v.6 E-10 v.4 E-12 v.4 E-15 v.4 Sealed Enclosure N/A N/A N/A N/A Ported Enclosure 0.65 cu ft 1.0 cu ft 1.75 cu ft 3.0 cu ft Recommended Tuning 35hz 35hz 35hz 35hz Recommended Port Area 9 sq in 15 sq in 26 sq in 44 sq in Displacement 0.07 cu ft 0.11 cu ft 0.12 cu ft 0.14 cu ft Depth 4.98" 5.625" 6.50" 7.25" Outside Diam. 8.500” 10.000" 12.250" 15.125" Cutout 7.250” 8.875" 11.125" 13.875" -
