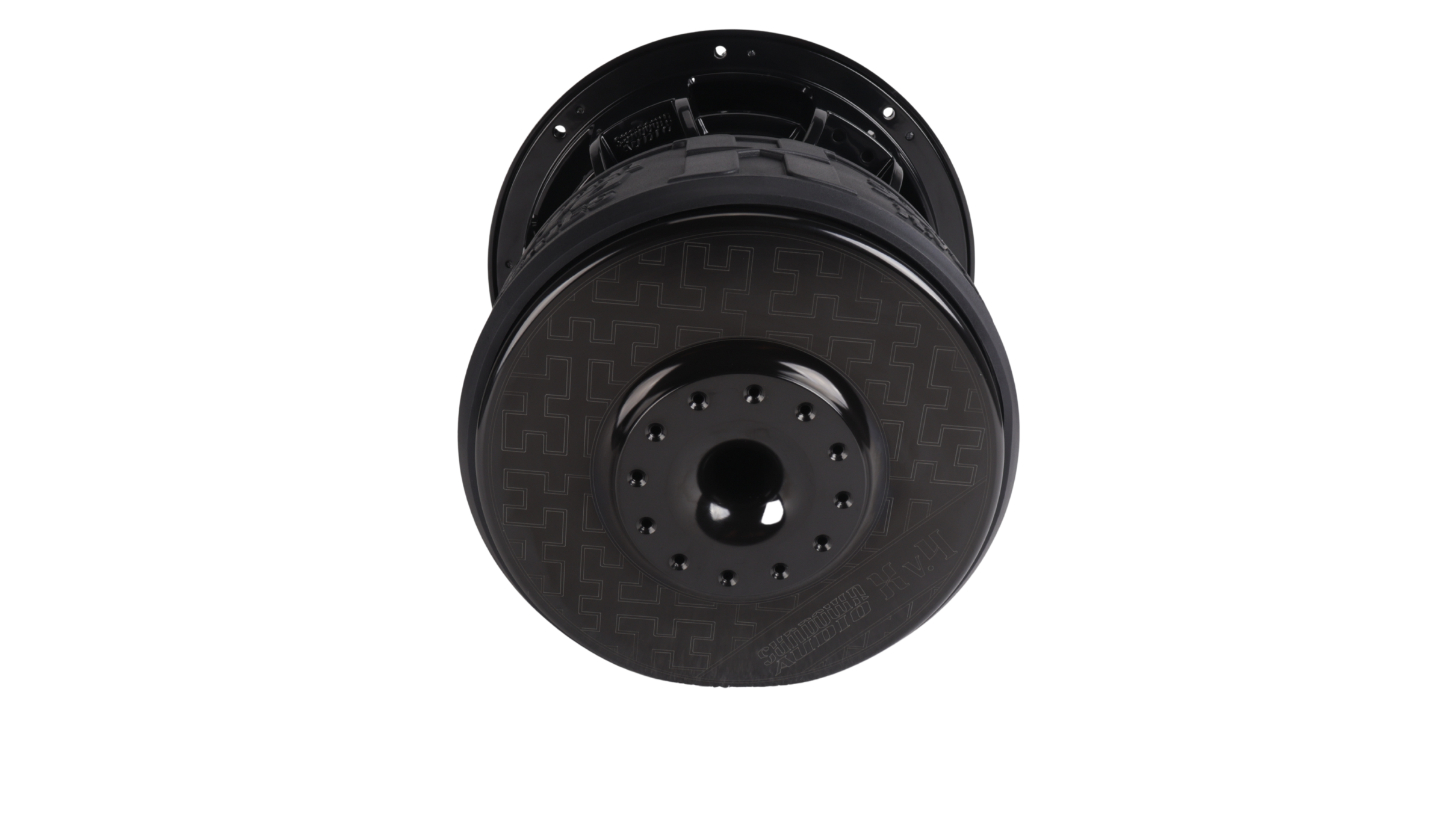

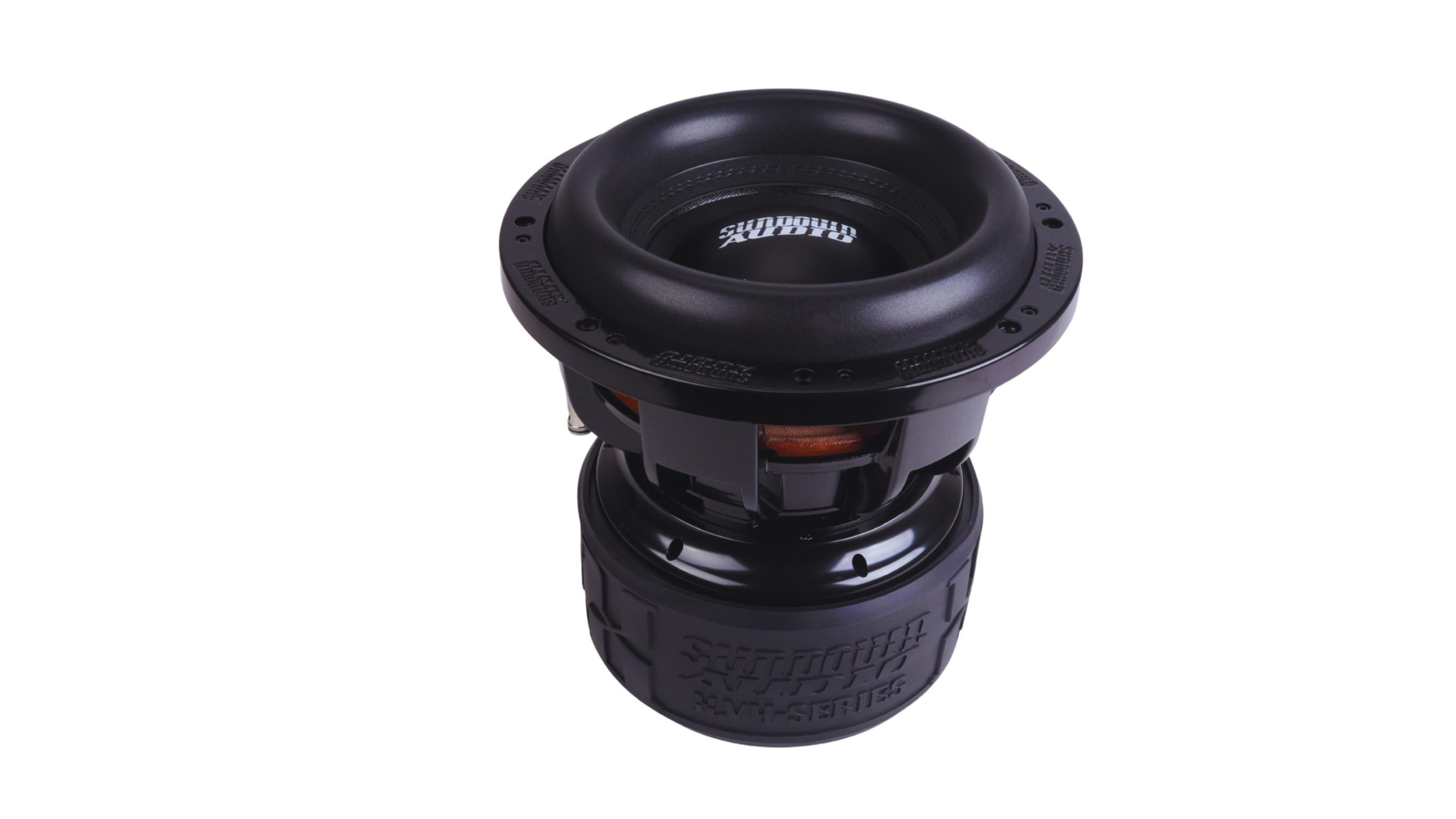

The Sundown Audio XV4 10-inch Subwoofer is engineered for serious bassheads who expect brutal output, clean low-end response, and true competition-grade durability. Built on Sundown’s all-new X v.4 coil platform and backed by a massive 3000W RMS motor, this driver delivers insane excursion, accuracy, and long-term reliability.
Whether you're building a powerhouse daily setup or a full demo build, the XV4 10-inch produces deep, heavy, controlled bass with zero compromise. Its 30mm Xmax, oversized 9.25-inch motor, and advanced cooling structure allow it to thrive in high-power ported enclosures, striking the perfect balance between output and sound quality.
If you want next-level Sundown performance, the XV4 series is the upgrade your system has been waiting for.
Key Features
-
3000W RMS / 6000W Peak power handling
-
X v.4 coil technology for superior thermal performance
-
30mm Xmax for massive, clean excursion
-
10-inch design optimized for ported enclosures (1.5 cu ft @ 32Hz)
-
Oversized 9.25-inch motor for strength and long-term reliability
-
Competition-ready construction built to take abuse
-
Available in Dual 1Ω and Dual 2Ω
-
Ideal for SPL builds, demo setups, and high-power daily systems
Specifications
Power Ratings
-
RMS Power: 3000W
-
Peak Power: 6000W
Physical Dimensions
-
Displacement: 0.22 cu ft
-
Mounting Depth: 11 inches
-
Outside Diameter: 11.81 inches
-
Cutout Diameter: 10.01 inches
-
Motor Diameter: 9.25 inches
Enclosure Recommendations
-
Sealed: Not recommended
-
Ported: 1.5 cu ft
-
Port Tuning: 32Hz
-
Recommended Port Area: 24 sq in
4th Order Bandpass
-
Sealed Side: 0.75 cu ft
-
Ported Side: 2.25 cu ft
-
Port Area: 45 sq in
-
Port Length: 8 inches
Performance Parameters
-
Xmax: 30mm
-
Sd: 35.63
-
Re: 3.2Ω (D1) / 3.74Ω (D2)
-
Fs: 41.37Hz (D1) / 37.04Hz (D2)
-
Vas: 8.24L (D1) / 8.38L (D2)
-
Qes: 0.58 (D1) / 0.46 (D2)
-
Qms: 5.07 (D1) / 3.99 (D2)
-
Qts: 0.52 (D1) / 0.41 (D2)
-
Le: 2.68mH (D1)
-
BL: 22.19 / 27.41
-
Mms: 341.7 / 396.92
-
Cms: 43.29 / 46.49
-
Sensitivity: 81.76 dB (D1) / 81.5 dB (D2)
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
