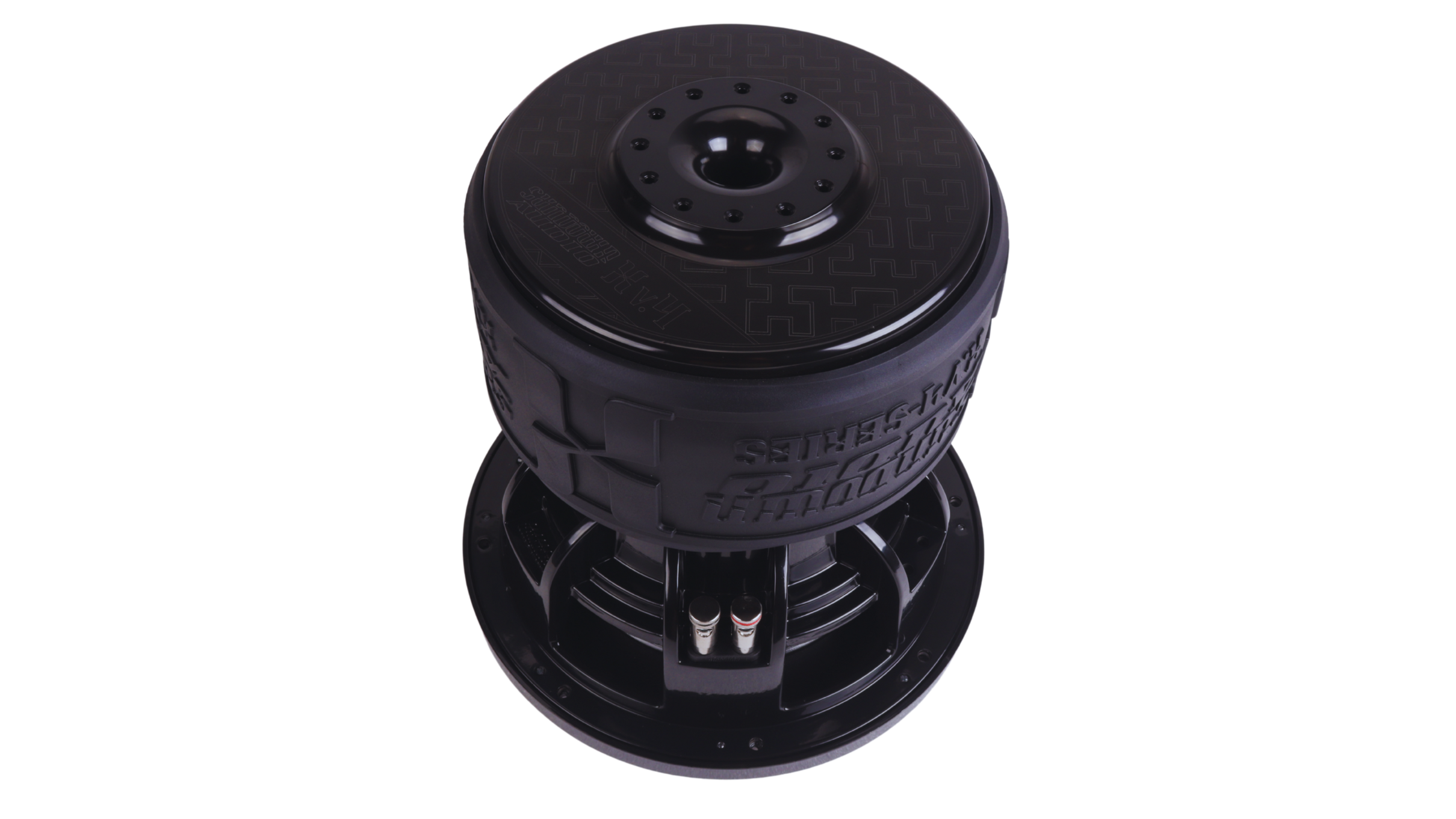

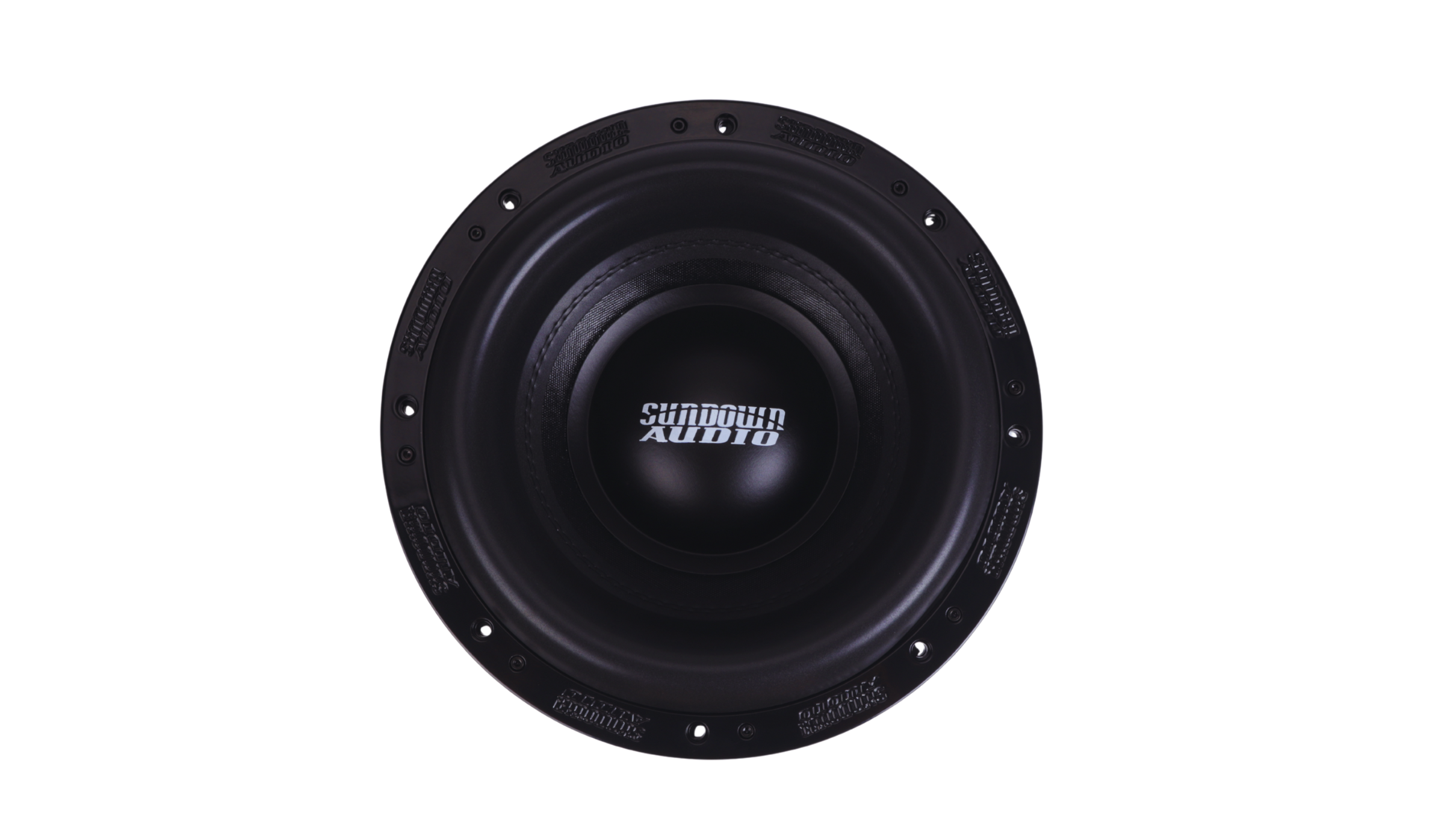

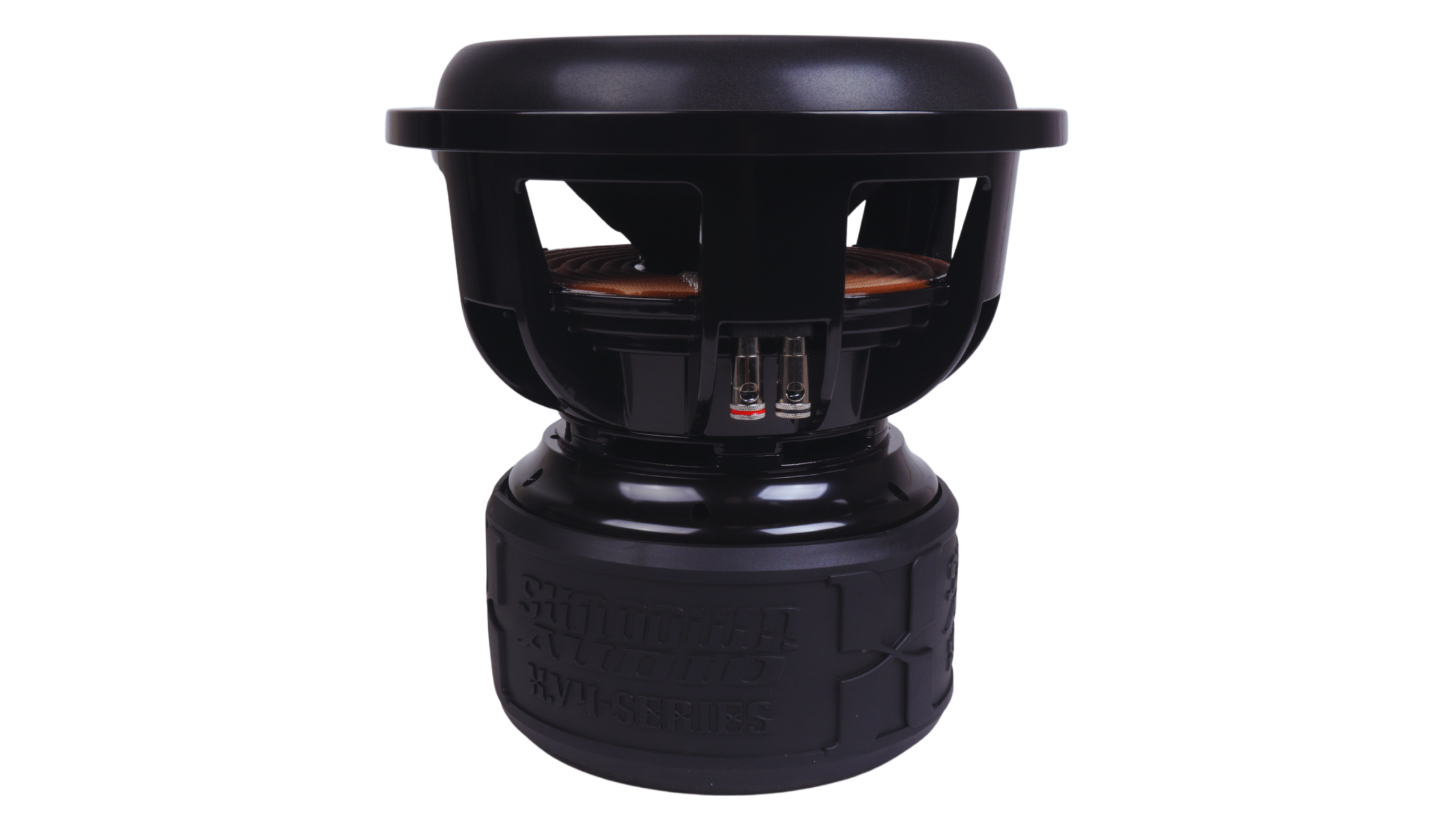

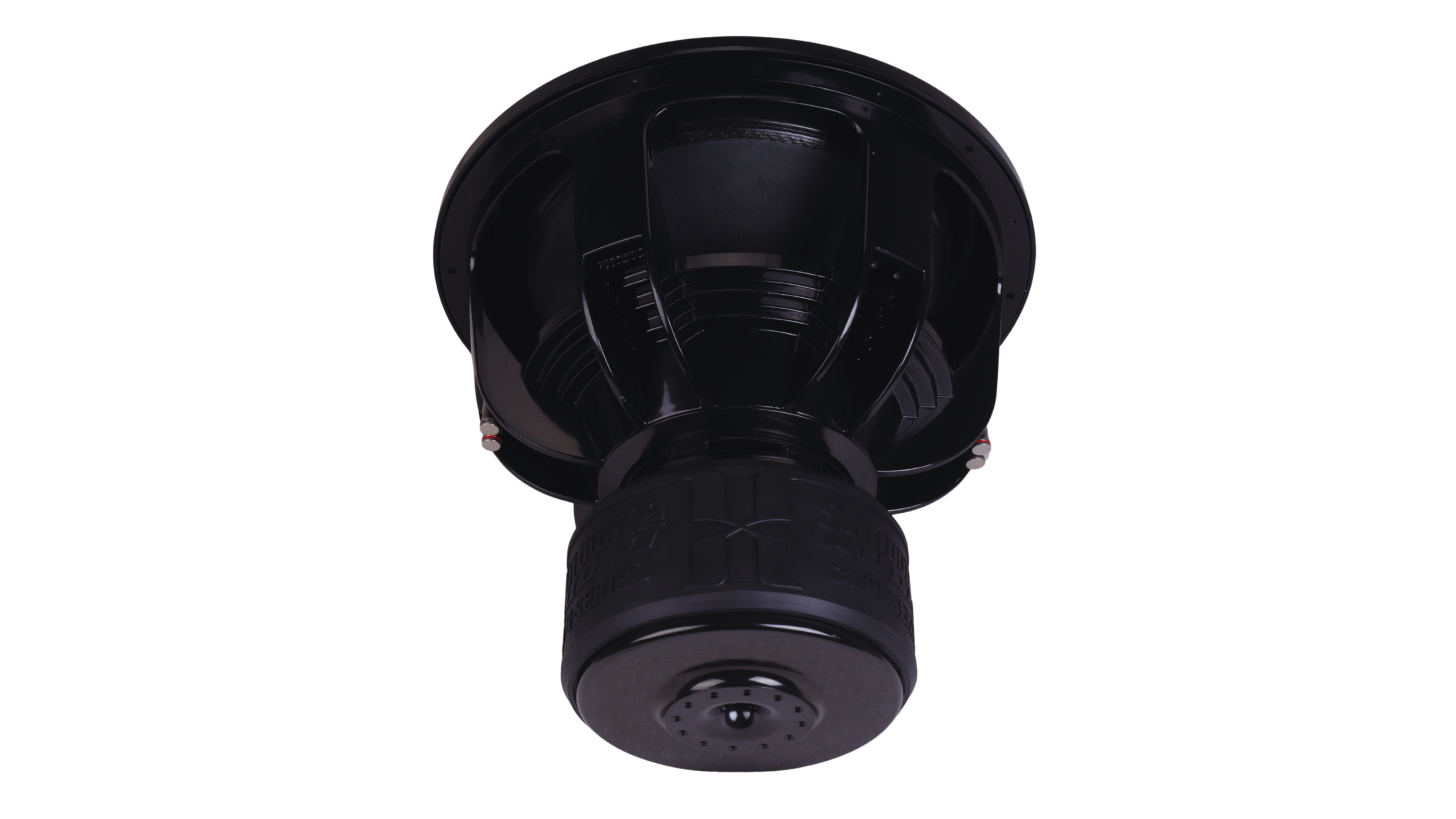

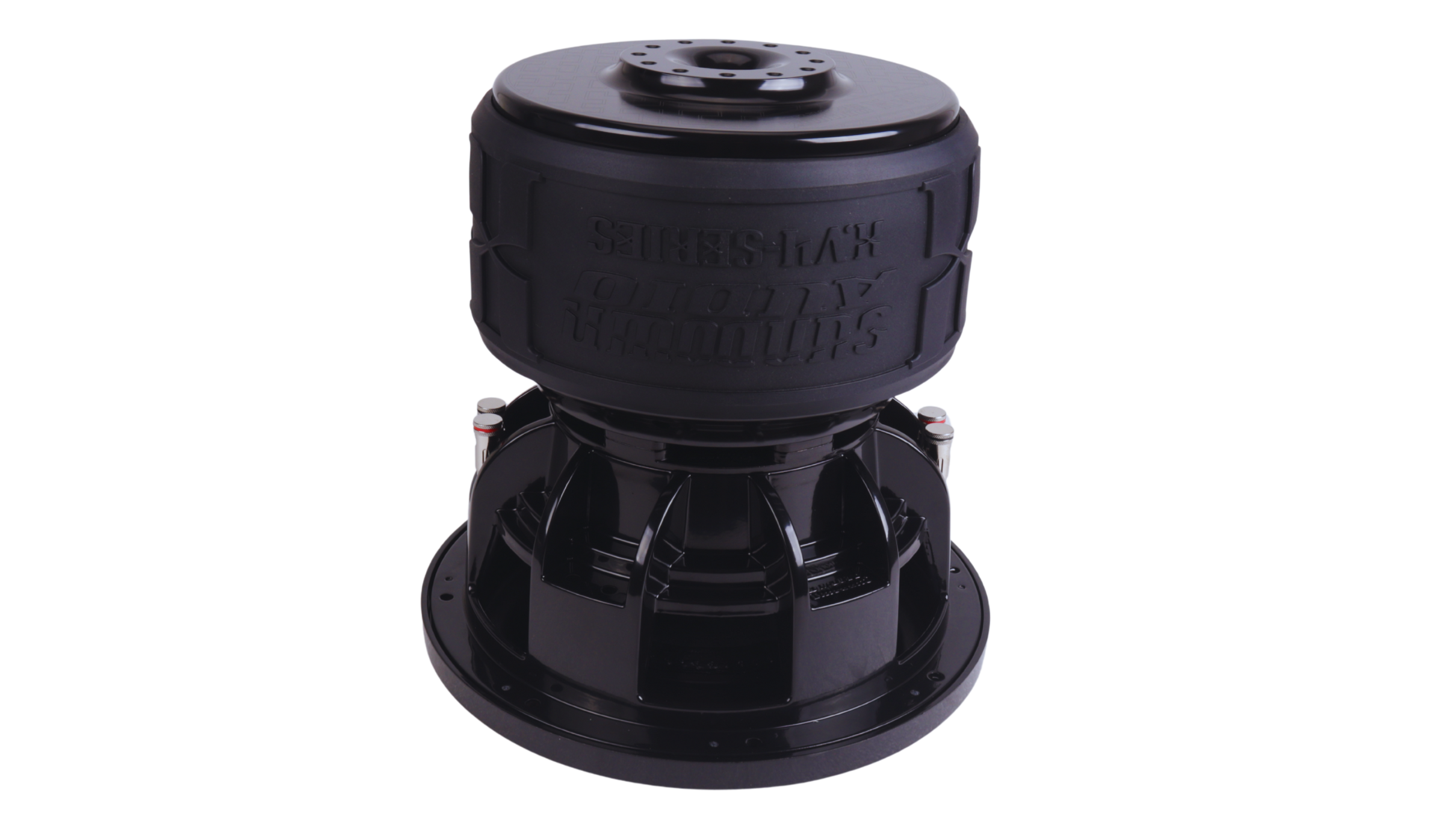

The Sundown Audio XV4 12-inch Subwoofer is engineered for bassheads who want real power, real precision, and real output. Featuring Sundown’s premium Xv4 voice coils and a massive 3000W RMS / 6000W peak power rating, this subwoofer delivers brutal low-end performance while maintaining clean, controlled sound at every volume level.
The XV4’s heavy-duty motor structure and optimized cooling system keep temperatures in check during long, high-output sessions. Whether you're upgrading a daily system or building a competition-grade setup, this 12-inch driver produces thunderous, accurate low frequencies that stay tight and consistent.
Its reinforced cone, long-throw suspension, and high-efficiency BL motor design ensure minimal distortion and maximum output. Paired with a well-designed ported enclosure, the XV4 12-inch brings your music to life with deep, room-shaking bass.
Continuing Sundown Audio’s legacy of reliability and innovation, the XV4 series is built to dominate daily driving, demo builds, and SPL applications.
Key Features
-
12-inch subwoofer built with premium Xv4 voice coils
-
3000W RMS / 6000W Peak power handling
-
Available in Dual 1 OHM and Dual 2 OHM options
-
High-efficiency motor structure with strong BL force
-
Designed for ported enclosures (2.5 cu ft @ 32Hz)
-
30mm Xmax for deep excursion and clean bass accuracy
-
Heavy-duty reinforced cone for extreme pressure
-
Perfect for audiophiles, bassheads, and SPL competitors
Specifications
Power Ratings
-
RMS Power: 3000W
-
Peak Power: 6000W
Physical Dimensions
-
Displacement: 0.23 cu ft
-
Mounting Depth: 11.75 inches
-
Outside Diameter: 12.81 inches
-
Cutout Diameter: 11.09 inches
-
Motor Diameter: 9.25 inches
Enclosure Recommendations
-
Sealed: Not recommended
-
Ported: 2.5 cu ft @ 32Hz
-
Recommended Port Area: 40 sq in
4th Order Bandpass
-
Sealed Side: 1.0 cu ft
-
Ported Side: 3.0 cu ft
-
Port Area: 60 sq in
-
Port Length: 8 inches
Performance Parameters
-
Xmax: 30mm
-
Sd: 44.11
-
Re: 2.05 OHM (D1) / 3.25 OHM (D2)
-
Fs: 39.39Hz (D1) / 36.06Hz (D2)
-
Vas: 14.13L (D1) / 15.75L (D2)
-
Qes: 0.58 (D1) / 0.54 (D2)
-
Qms: 4.95 (D1) / 4.82 (D2)
-
Qts: 0.50 (D1) / 0.49 (D2)
-
Le: 1.33mH (D1) / 2.6mH (D2)
-
BL: 24.4 / 22.25
-
Mms: 343.14g / 367.13g
-
Cms: 47.56 / 53.04
-
Sensitivity: 83.47 dB (D1) / 83.06 dB (D2)
| Shipping | Most items ship within 1–3 business days. Delivery time varies by item, vendor, and destination. |
Need help before ordering? Contact Droppin HZ and we can help confirm fitment, power needs, or supporting gear for your build.
Description
The Sundown Audio XV4 12-inch Subwoofer is engineered for bassheads who want real power, real precision, and real output. Featuring Sundown’s premium Xv4 voice coils and a massive 3000W RMS / 6000W peak power rating, this subwoofer delivers brutal low-end performance while maintaining clean, controlled sound at every volume level.
The XV4’s heavy-duty motor structure and optimized cooling system keep temperatures in check during long, high-output sessions. Whether you're upgrading a daily system or building a competition-grade setup, this 12-inch driver produces thunderous, accurate low frequencies that stay tight and consistent.
Its reinforced cone, long-throw suspension, and high-efficiency BL motor design ensure minimal distortion and maximum output. Paired with a well-designed ported enclosure, the XV4 12-inch brings your music to life with deep, room-shaking bass.
Continuing Sundown Audio’s legacy of reliability and innovation, the XV4 series is built to dominate daily driving, demo builds, and SPL applications.
Key Features
-
12-inch subwoofer built with premium Xv4 voice coils
-
3000W RMS / 6000W Peak power handling
-
Available in Dual 1 OHM and Dual 2 OHM options
-
High-efficiency motor structure with strong BL force
-
Designed for ported enclosures (2.5 cu ft @ 32Hz)
-
30mm Xmax for deep excursion and clean bass accuracy
-
Heavy-duty reinforced cone for extreme pressure
-
Perfect for audiophiles, bassheads, and SPL competitors
Specifications
Power Ratings
-
RMS Power: 3000W
-
Peak Power: 6000W
Physical Dimensions
-
Displacement: 0.23 cu ft
-
Mounting Depth: 11.75 inches
-
Outside Diameter: 12.81 inches
-
Cutout Diameter: 11.09 inches
-
Motor Diameter: 9.25 inches
Enclosure Recommendations
-
Sealed: Not recommended
-
Ported: 2.5 cu ft @ 32Hz
-
Recommended Port Area: 40 sq in
4th Order Bandpass
-
Sealed Side: 1.0 cu ft
-
Ported Side: 3.0 cu ft
-
Port Area: 60 sq in
-
Port Length: 8 inches
Performance Parameters
-
Xmax: 30mm
-
Sd: 44.11
-
Re: 2.05 OHM (D1) / 3.25 OHM (D2)
-
Fs: 39.39Hz (D1) / 36.06Hz (D2)
-
Vas: 14.13L (D1) / 15.75L (D2)
-
Qes: 0.58 (D1) / 0.54 (D2)
-
Qms: 4.95 (D1) / 4.82 (D2)
-
Qts: 0.50 (D1) / 0.49 (D2)
-
Le: 1.33mH (D1) / 2.6mH (D2)
-
BL: 24.4 / 22.25
-
Mms: 343.14g / 367.13g
-
Cms: 47.56 / 53.04
-
Sensitivity: 83.47 dB (D1) / 83.06 dB (D2)
